Fluid F8S

Rp7.250.000

Description

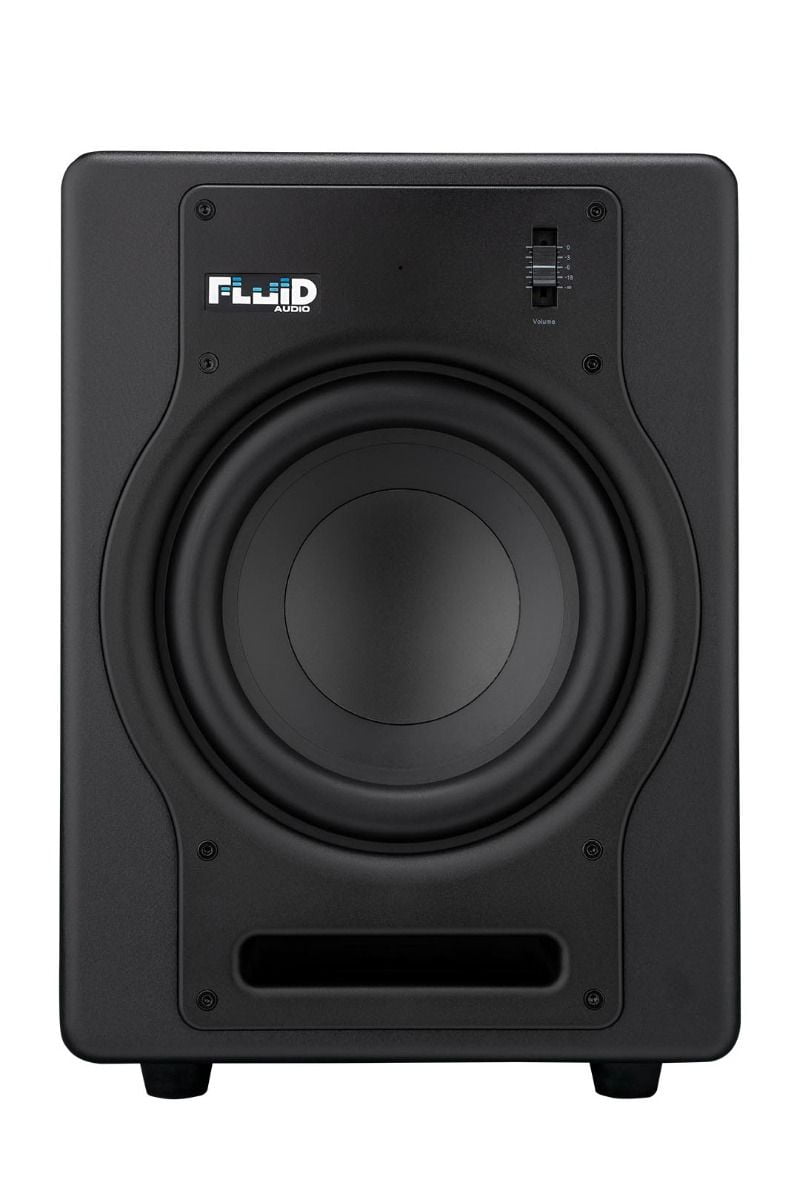

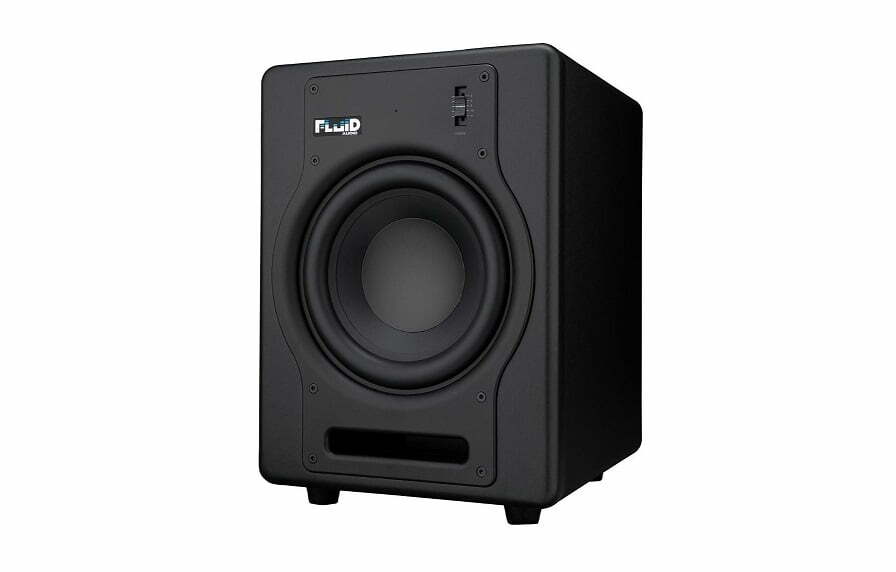

Designed for recording studios, gaming, home theaters and more, the Fluid Audio F8S active subwoofer delivers exceptional bass response in a compact footprint.

Many types of music benefit from bass extension – from Hip-Hop, to House, to Rock. Being able to hear your mix with this bass extension is critical to accurately creating your music. The F8S subwoofer allows you to hear every detail down to 30Hz – and in a compact size.

Mix Engineers want the confidence to know that their mixes translate well on all types of systems. That is why we included a standby footswitch. With a click of the included foot pedal, you can turn the bass on or off, and audition your mix with bass extension and without.

The F8S also has two built-in EQ settings that allow for two different settings – depending on your music: A more conventional Flat response, as well as a “Punch” setting that is perfect for Dance or other mid-bass heavy music.

For further flexibility, the F8S has a variable phase adjustment to fine tune the phase for optimal matching to your L/R monitors (0-180 degrees), a variable low pass crossover filter control (50-200Hz) and a 80Hz high pass filter (used with foot switch) for satellite connections.





Features

  • 200 Watts of class D power with switching power supply
  • 8-inch composite paper cone with high temperature voice coil and damped rubber surround
  • active subwoofer
  • front baffle Fader volume control
  • bass-reflex vent port on front baffle for ease of placement
  • amplifier standby function to conserve energy

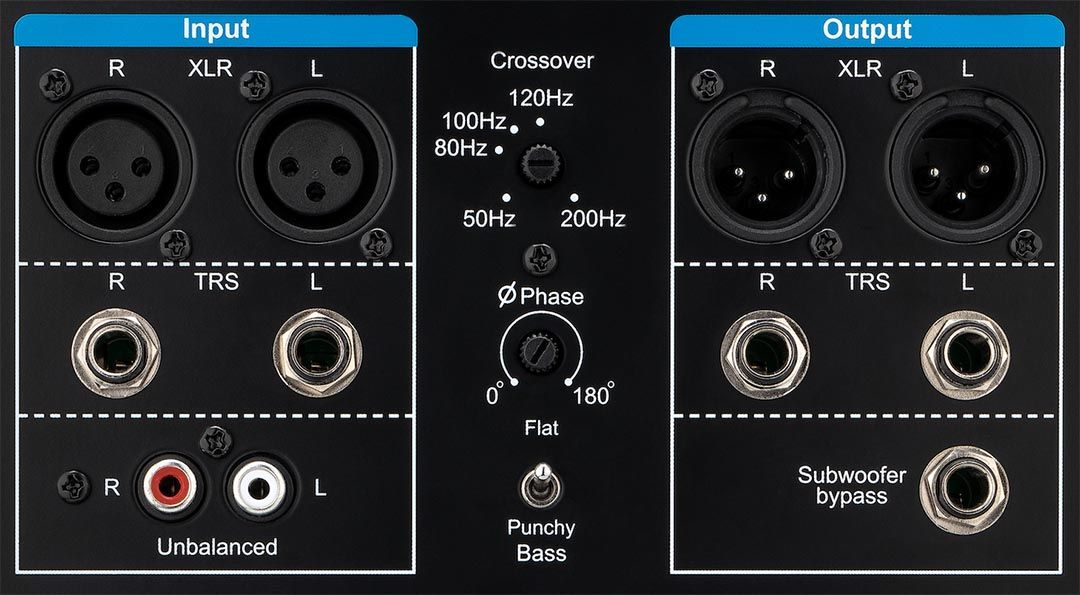

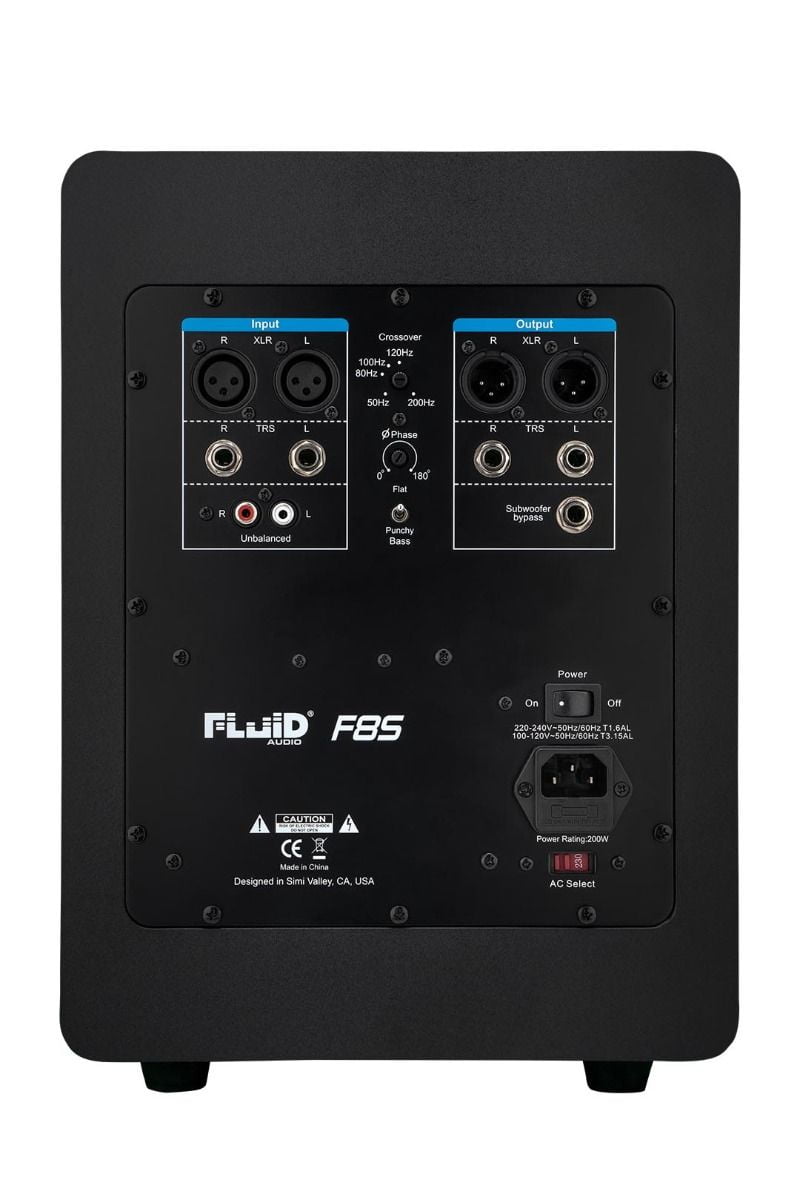

  • XLR balanced and 1/4” balanced/unbalanced inputs and RCA inputs
  • XLR balanced and 1/4” balanced/unbalanced outputs
  • Variable lowpass filter control: 50Hz-200Hz
  • Switch for both “Flat” and “Punchy” settings
  • 80 Hz highpass filter(with foot switch) for satellite connections
  • Included footswitch allows you to turn F8S on and off for auditioning with bass and without



  • frequency response: 30-200Hz
  • total amplifier power: 200 watts
  • signal-to noise: > 100dB (typical A-weighted)
  • polarity: positive signal at + input produces outward LF cone displacement
  • input impedance: 20k ohms balanced, 10k ohms unbalanced
  • input sensitivity: 85mV pink noise input produces 97dBA output SPL at one meter with volume control at maximum
  • power: factory programmed for either 100-120V ~60Hz, 220-240V ~50Hz
  • protection: RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external main fuse
  • cabinet: vinyl-laminated, high acoustic efficient MDF
  • size: 13.4” x 10” x 10.5”, 340 x 254 x 270mm
  • Weight: 18.7 lbs / 8.5 kg
