Following the success of BM series subwoofers, here comes the 9S sub by Dynaudio Pro. It features 22-175Hz freq range, with crossover freq. from 50-150Hz, 9.5″ cone, 300W Class-D amp, and master/slave capability for daisy chaining multiple subs. By overall, although it resembles the BM 9S II that it replaces, but when it comes to performance, it’s actually more comparable to the larger BM 14S II.
18S sub by Dynaudio Pro. It features 16-230Hz freq range, 50-150Hz crossover freq., dual 9.5″ MSP+ Hybrid Drive long-throw woofers in opposing position, 500W Class-D amp, master/slave capability, time alignment for adjusting according to position, 3-band EQ, and advanced DSP with presets for a wide range of Dynaudio Pro studio monitors. Simply the best companion for your Dynaudio monitors.
Dynaudio 9S

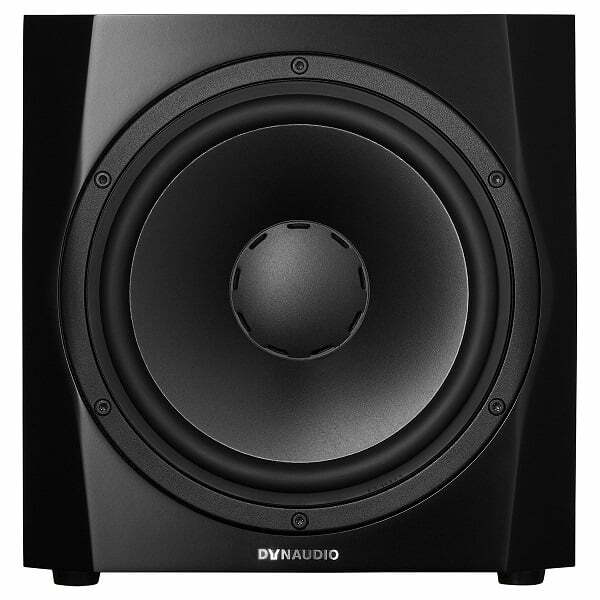

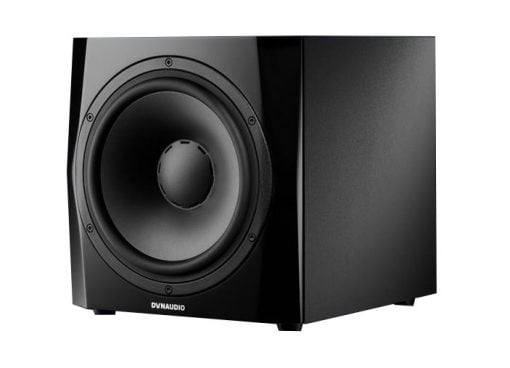

Studio-quality components and construction make the 9S, with its double front baffle and brand-new 9.5in long-throw driver, the ideal subwoofer for your mixing and mastering projects. We made it a priority to make the 9S compact while ensuring that you get the utmost sonic accuracy. In terms of size, it resembles the BM 9S II that it replaces, but when it comes to performance, it’s actually more comparable to the larger BM 14S II.
The 9S will expand any studio monitor setup regardless of whether you’re working in stereo or surround. Its massive yet tight low-end takes the burden off your monitors – letting them focus on delivering the frequency range above 50-150Hz, depending on how you set the crossover filter.
A long-throw driver ensures the necessary movement to reproduce super low-end frequencies all the way down to 22Hz in great detail. Running the show is a 300W Class D amplifier module that significantly outperforms the previous BM 9S II.
Features
300-watt state-of-the-art Class D amplifier module
9.5in long-throw MSP woofer for accurate low-end frequency reproduction
22-175 Hz frequency range
Sealed, black-vinyl cabinet
37mm front baffle

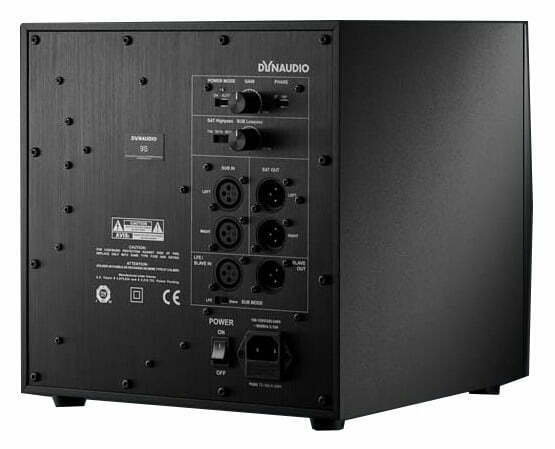

Master/Slave feature for daisy-chaining multiple subwoofers
Adjustable lowpass filter to set the perfect crossover frequency
SAT output with defeatable highpass filter
Specifications
Frequency Response:
22-250Hz +/- 3dB
Max SPL 1m, pair (IEC Short Term):
Principle:
Crossover Freq.:
50-150Hz
Woofer:
9.5in long-throw MSP
Amplifier:
300W Class-D
I/O Connectors:
XLR Balanced
Dimensions (W x H x D):
266 x 276 x 320 mm
Weight:
10.5kg / 23.1lb
Auto ON/OFF:
Yes
Dynaudio 18S
We’ve applied advanced DSP modelling technology that acoustically matches 18S to any Dynaudio Pro Studio Monitor from BM Classic, LYD and upwards, turning two-way systems into three-way set-ups. Its punch is delivered by two of our brand-new MSP+ Hybrid Drive units and a 500W amp for absolute control and power.
Getting the 18S to match seamlessly with our professional monitors is key for absolute accuracy when mixing and mastering. That has meant assessing the acoustic characteristics of each of our popular high-end studio speakers and creating custom performance maps for each one. And it’s future-proof: when we add new studio speakers to the line-up, we’ll release a firmware update for the 18S to add their performance maps – so it can grow along with your needs and equipment.
With this information at its disposal, the 18S’s display and menu system lets you select the specific Dynaudio speakers you’re using in your monitoring setup. This means the roll-off can be tailored perfectly to suit. And, if you combine a LYD 48 stereo or surround setup, you’ll essentially have a full-blown four-way monitoring system at your disposal.

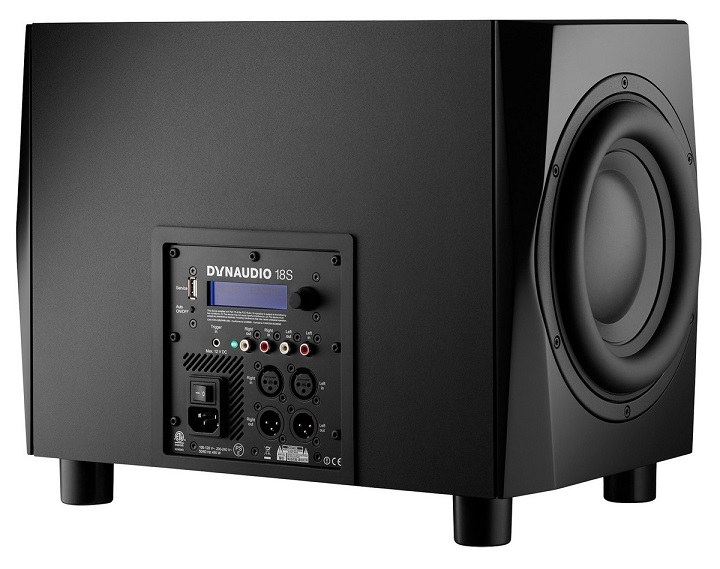

The 18S has a selection of RCA or XLR connections for flexibility with your studio setup, and comes with a number of handy features to help more advanced systems too. This includes the ability to set a time delay to ensure the sub and speakers are working perfectly in sync: all you need to do is enter the distance from the sub to the speakers and the sub adjusts itself automatically using both time and phase delays.
There’s also a full three-filter parametric EQ to easily defeat room modes that could affect the accuracy of your final recording.
MSP+ Hybrid Drive
We’ve designed a brand-new driver for the 18S. This one is made from aluminium rather than our standard Magnesium Silicate Polymer material. It has paper backing and an MSP dust-cap on the front. Why the sandwich? Because a subwoofer requires a different balance between stiffness, lightness and damping than standard speaker drivers.
The new MSP+ Hybrid Drive units have been designed specifically with subwoofers in mind for the best performance possible. Adding 18S to your monitors will open up a new world of performance that lets you mix and master with painstaking accuracy… and deliver tracks that translate beautifully to any playback system.
The 18S comes with presets designed to work with these monitors…
