Description

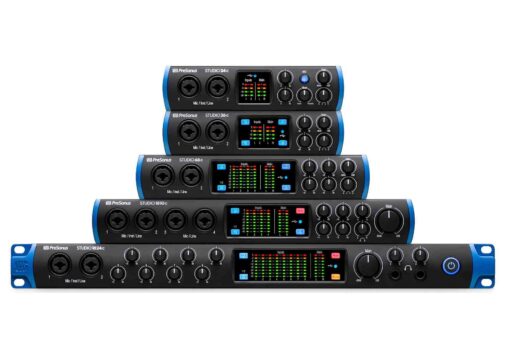

PreSonus Studio USB Interface Series
Rp3.550.000 – Rp12.800.000
SKU: N/A
Categories: Audio Interfaces, Production, Professional Audio
Tags: Audio Interfaces, Presonus, soundcard, Studio
Professional quality for home recording studios.
Whether you’re recording your first album or your hit podcast’s latest episode, the Studio 24c will help you sound your best. With two of PreSonus’ pristine XMAX-L mic preamps for recording vocals; plus high headroom instrument preamps so you can connect your guitar or bass right to your interface; and professional input metering so you can keep track of your recording levels, the Studio 24c delivers amazing sound quality in a rugged, compact form factor. A complete home recording studio right out of the box, the Studio 24c audio interface comes with a complimentary license of PreSonus’ award-winning Studio One® Artist music production software, so you can get recording right away.
Superior sound.

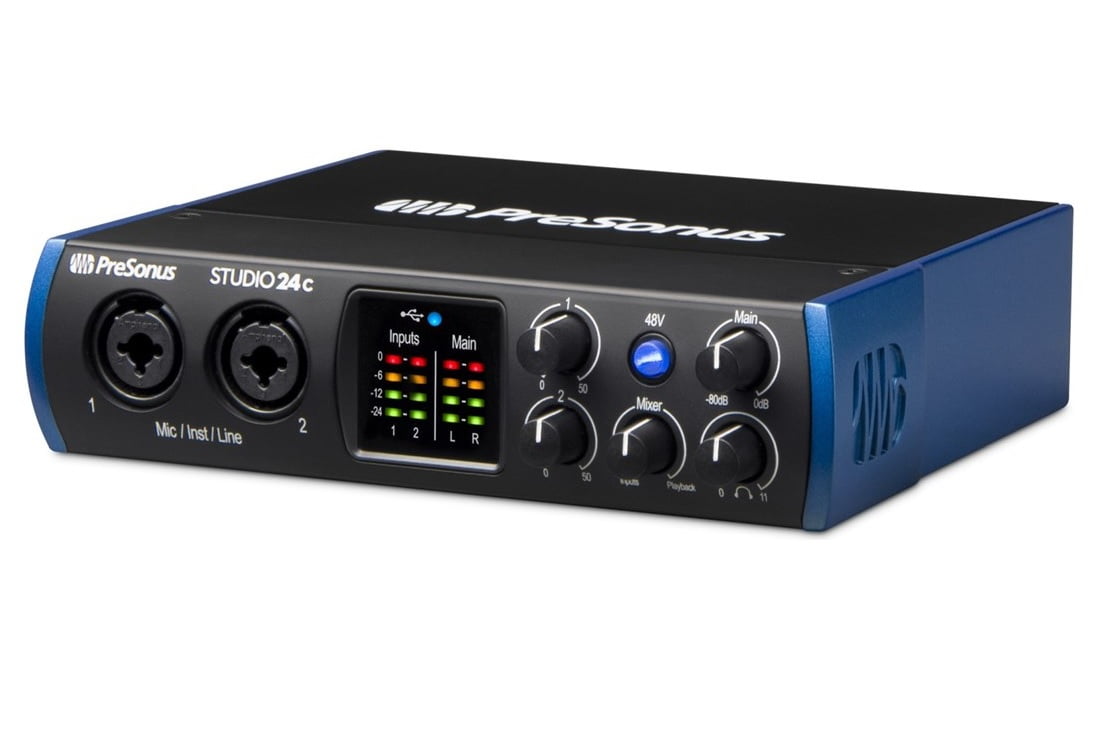

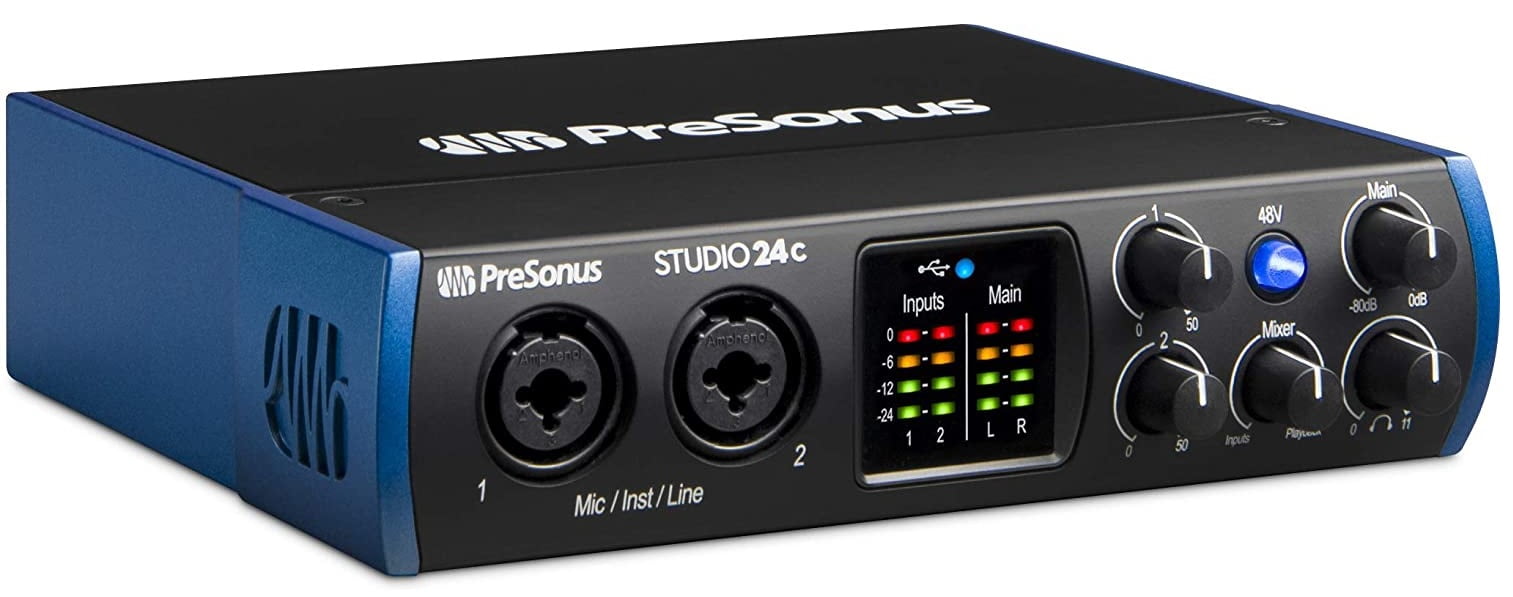

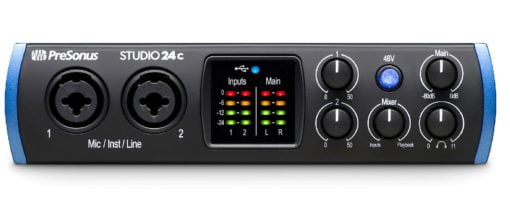

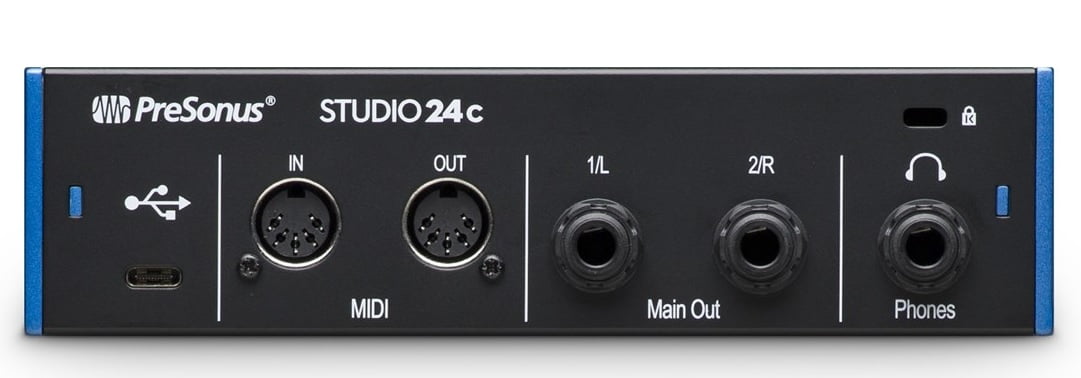

The Studio 24c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and PreSonus’ professional-grade XMAX-L mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX-L mic preamps are designed to perform optimally on bus-powered audio interfaces, allowing you to take great sound with you wherever you record.
Stress-free recording.
When you have the right tools, any job is easier and faster to finish. That’s why we included professional input and output metering on the Studio 24c, allowing you to keep an eye on your input and mix levels when you’re recording by yourself. An easy to use Mix control lets you blend your analog inputs with playback from your computer, making creating a great monitor mix fast and simple.
Wherever sound takes you.
Whether you’re just getting into recording or are a veteran producer who wants to go mobile, the Studio 24c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. While it’s a perfect companion for any recording software, the Studio 24c and included Studio One Artist provide you with a complete, affordable recording solution that will make you sound great.
Works with iOS and iPadOS devices.
The PreSonus Studio 24c is compatible with iOS and iPadOS devices including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhones. Because it’s USB class-compliant, there are no special drivers or applications for you to download and install. You’ll be able to produce on the go—everything from podcasts to folk rock to trap, wherever sound takes you.
Features
Input/Output
- Simultaneous I/O up to 2 inputs/2 outputs
- 2 mic/instrument/line inputs with XMAX-L mic preamps
- 2 balanced ¼” TRS main outputs
- 1 stereo headphone output
- MIDI In/Out
- 1 USB-C®-compatible 2.0 port
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
Meters, Controls, and Features
- Mixer knob for low-latency direct input monitoring
- Front-panel level controls for main outputs
- +48V phantom power for condenser microphones (global)
- 4 ladder-style LED level meters (2 input, 2 main output)
Integrated Software
- Studio One Artist®
- Studio Magic Plug-in Suite
Digital
- USB-C® -compatible port (USB 2.0)
- 24-bit resolution
- 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
Physical
- Road-rugged construction with all-metal chassis and metal knobs
- USB bus-powered
Computer system requirements:
Below are the minimum computer-system requirements.
Mac
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 processor or better
- 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 10 (64-bit only)
- Intel Core i3 / AMD A10 processor or better
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C® or USB-A 2.0 port compatibility
- 30 GB hard disk space
- Monitor with 1366×768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
Technical Specifications
| General | |
|---|---|
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, or 192 kHz |
| Converter Resolution | 24 bit |
| ADC Converter Dynamic Range | 108 dB |
| DAC Converter Dynamic Range | 108 dB |
| Microphone Inputs | |
|---|---|
| Maximum Level | +10 dBu (±0.5 dBu, min gain) |
| Gain Range | 50 dB |
| Frequency Response | 20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd) |
| Dynamic Range | 106 dB (A-wtd, min gain) |
| THD + N | 0.004% (1 kHz, -1 dBFS, min gain) |
| EIN | -126 dBu (A-weighted, 150Ω, max gain) |
| Input Impedance | 1.4 kΩ |
| Phantom Power | +48 VDC (10 mA total) |
| Instrument Inputs | |
|---|---|
| Maximum Level | +19 dBu (min gain) |
| Gain Range | 50 dB |
| Frequency Response | 20 Hz – 20 kHz (±0.1 dBu, unity gain, unwtd) |
| Dynamic Range | 105 dB (A-wtd, unity gain) |
| THD + N | 0.002% (1 kHz, min gain) |
| Input Impedance | 750 kΩ |
| Main Outputs | |
|---|---|
| Type | ¼” TRS, Female |
| Maximum Level | +10 dBu (1 kHz, unity gain, balanced) |
| Frequency Response | 20 Hz – 20 kHz (±0.3 dBu, unity gain, unwtd) |
| Dynamic Range | 104 dB (unity gain, unwtd) |
| THD + N | 0.001% ( 1 kHz, -1 dBFS, unity gain) |
| Headphone Outputs | |
|---|---|
| Maximum Power | 47 mW / channel @ 56Ω |
| Frequency Response | 20 Hz – 20 kHz (±0.5 dBu, unity gain, unwtd) |
| Dynamic Range | 83 dB (A-wtd, 56Ω load) |
| THD + N | 0.01% (1 kHz, 0 dBFS, loaded) |
| Impedance Working Range | 32Ω to 300Ω |
| Physical | |
|---|---|
| Height | 1.75″ (44 mm) |
| Width | 7″ (180 mm) |
| Depth | 5.5″ (144 mm) |
| Weight | 2 lbs. (0.9 kg) |
Professional tools. Professional results.

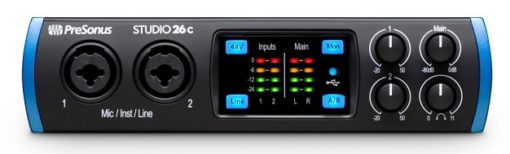

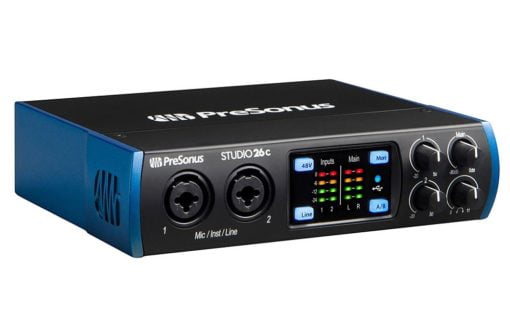

Created with the needs of DJs and electronic musicians in mind, the Studio 26c delivers excellent audio quality with professional metering and flexible monitoring options. With two of PreSonus’ pristine XMAX-L mic preamps for recording vocals and custom samples; both MIDI I/O and line inputs for your favorite synths; plus professional input and output metering so you can keep track of your recording and performance levels, the Studio 26c delivers amazing sound quality in a rugged, compact form factor. A complete recording studio right out of the box, the Studio 26c audio interface comes with a complimentary license of PreSonus’ award-winning Studio One® Artist music production software, so you can get creating right away.
Superior sound.
The Studio 26c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and PreSonus’ professional-grade XMAX-L mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX-L mic preamps are designed to perform optimally on bus-powered audio interfaces, allowing you to take great sound with you wherever you record.
Stress-free recording.
Professional tools make any job easier. That’s why we included professional input and output metering on the Studio 26c, allowing you to keep an eye on your input and mix levels when you’re recording by yourself. An easy to use direct monitor control blends the analog input signals with playback from your computer, simplifying monitoring. Two pairs of outputs afford two different stereo mixes. The Cue A/B button allows you to toggle between each mix while listening in on headphones, great for live performance and studio alike.
Wherever sound takes you.
Whether you’re just getting into music production or looking to upgrade your DJ rig, the Studio 26c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. While it’s a perfect companion for any recording software, the Studio 26c and included Studio One Artist provide you with a complete, affordable recording solution that will make you sound great.
Works with iOS and iPadOS devices.
The PreSonus Studio 26c is compatible with iOS and iPadOS devices including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhones. Because it’s USB class-compliant, there are no special drivers or applications for you to download and install. You’ll be able to produce on the go—everything from podcasts to folk rock to trap, wherever sound takes you.

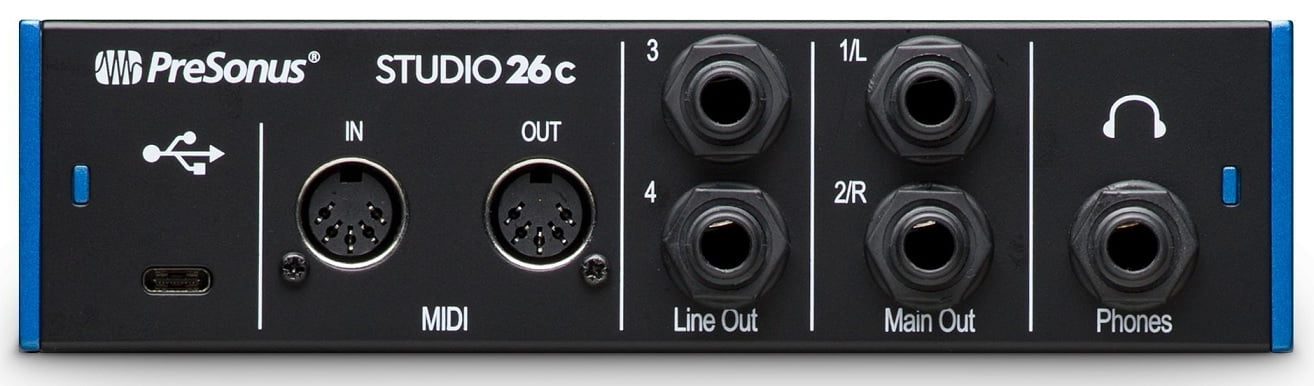

Features
Input/Output
- Simultaneous I/O up to 2 inputs/4 outputs
- 2 mic/instrument/line inputs with XMAX-L mic preamps
- 2 balanced ¼” TRS main outputs
- DC coupled for sending control voltages*
- 2 balanced ¼” TRS line outputs for monitor mixing
- DC coupled for sending control voltages*
- 1 stereo headphone output
- MIDI In/Out
- 1 USB-C®-compatible 2.0 port
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
Meters, Controls, and Features
- Direct monitoring
- Cue mix A/B (for headphone output)
- Front-panel level controls for main outputs
- True +48V phantom power for condenser microphones (global)
- 4 ladder-style LED level meters (2 input, 2 main output)
Integrated Software
- Studio One Artist®
- Studio Magic Plug-in Suite
Digital
- USB-C®-compatible port (USB 2.0)
- 24-bit resolution
- 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
Physical
- Road-rugged construction with all-metal chassis and metal knobs
- USB bus-powered
Computer system requirements:
Below are the minimum computer-system requirements.
Mac
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 processor or better
- 4 GB RAM (8 GB or more recommended)
Windows
- Windows® 10 (64-bit only)
- Intel Core i3 / AMD A10 processor or better
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C® or USB-A 2.0 port compatibility
- 30 GB hard disk space
- Monitor with 1366×768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
Technical Specifications
| General | |
|---|---|
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, or 192 kHz |
| Converter Resolution | 24 bit |
| Converter Dynamic Range | 114 dB |
| Converter Dynamic Range | 114 dB |
| Microphone Inputs | |
|---|---|
| Maximum Level | +4.5 dBu (balanced, min gain) |
| Gain Range | 70 dB |
| Frequency Response | 20 Hz – 20 kHz (±0.1 dB, min gain, 48 kHz) |
| Dynamic Range | 110 dB (A-wtd, min gain) |
| THD + N | 0.004% (1 kHz, -1 dBFS, unity gain) |
| EIN | -125 dBu (max gain, 150Ω, A-wtd) |
| Input Impedance | 1.6 kΩ |
| Phantom Power | +48 VDC (10 mA total) |
| Line Inputs | |
|---|---|
| Maximum Level | +19.5 dBu (balanced, min gain) |
| Gain Range | 70 dB |
| Frequency Response | 20 Hz – 20 kHz (±0.1 dB, min gain, 48 kHz) |
| Dynamic Range | 110 dB (A-wtd, min gain) |
| THD + N | 0.007% (1 kHz, -1 dBFS, min gain) |
| Input Impedance | 10 kΩ |
| Instrument Inputs | |
|---|---|
| Maximum Level | +14 dBu (unbalanced, min gain) |
| Gain Range | 70 dB |
| Frequency Response | 20 Hz – 20 kHz (±0.15 dB, 48 kHz, min gain) |
| Dynamic Range | 110 dB (A-wtd, min gain) |
| THD + N | 0.008% (1 kHz, -1 dBFS, min gain) |
| Input Impedance | 1 MΩ |
| Line Outputs (Mains) | |
|---|---|
| Type | ¼” TRS Female, DC Coupled* |
| Maximum Level | +10 dBu (balanced) |
| Frequency Response | 20 Hz – 20 kHz (±0.1 dB, unity gain, 48 kHz) |
| Dynamic Range | 108 dB (A-wtd) |
| THD + N | 0.0015% (1 kHz, -1 dBFS) |
| Line Outputs (3/4) | |
|---|---|
| Type | ¼” TRS Female, DC Coupled* |
| Maximum Level | +10 dBu (balanced) |
| Frequency Response | 20 Hz – 20 kHz (±0.1dB, unity gain, 48 kHz) |
| Dynamic Range | 113 dB (A-wtd) |
| THD + N | 0.008% (1 kHz, -1 dBFS) |
| Headphone Outputs | |
|---|---|
| Maximum Power | 30 mW/channel (56Ω load) |
| Frequency Response | 20 Hz – 20 kHz (±0.2 dB, 56Ω load, 48 kHz) |
| Dynamic Range | 104 dB (A-wtd, 56Ω load) |
| THD + N | 0.009% (1 kHz, -1 dBFS, no load) |
| Impedance Working Range | 32Ω to 300Ω |
Physical | |
| Height | 1.75″ (44 mm) |
| Width | 7″ (180 mm) |
| Depth | 5.5″ (144 mm) |
| Weight | 1.6 lbs. (0.7 kg) |
Powerful, flexible production tools.

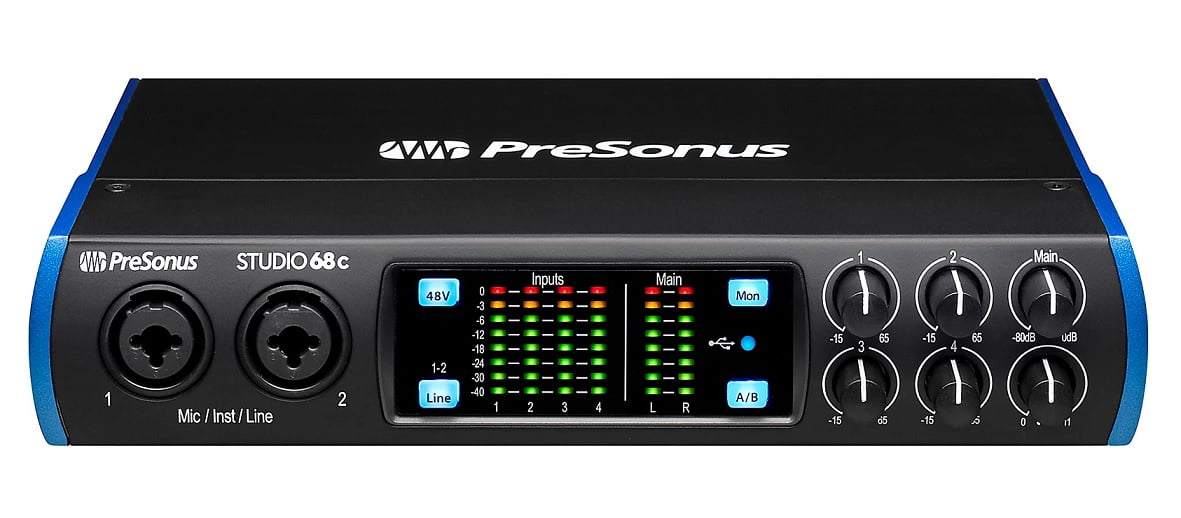

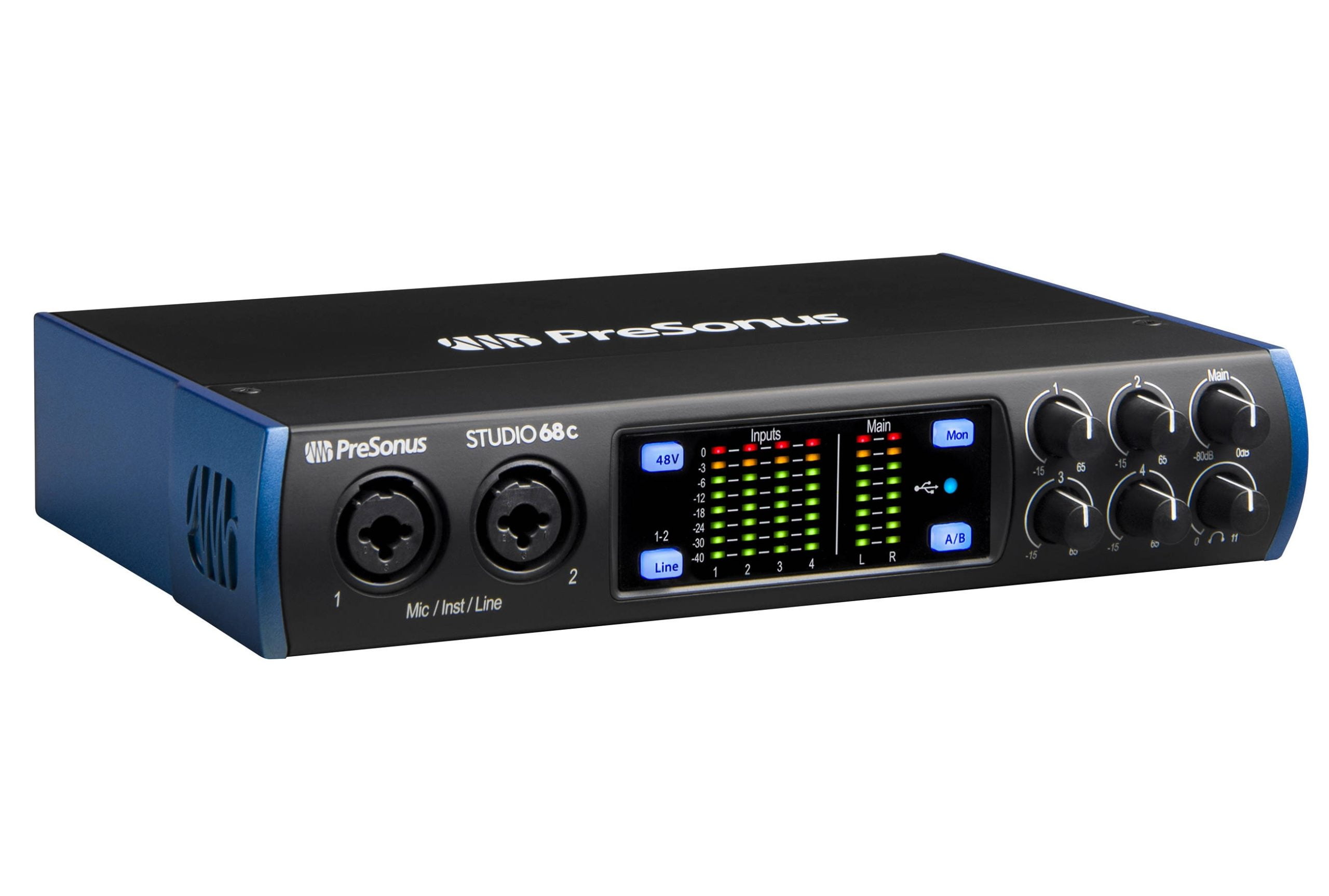

Amazing sound quality with four of PreSonus®’ famed XMAX analog mic preamps, plus professional metering and monitoring features make the Studio 68c ideal for small productions, electronic artists, and bands looking to take charge of their recordings. Two stereo outputs provide flexible output options. A powerful headphone amp with A/B switching lets you listen in to either mix, ideal for live-performance applications. With a Studio One® Artist license included with registration, the Studio 68c is an audio production powerhouse right out of the box.
World-class recording software included.
Seamlessly integrated with the included PreSonus Studio One Artist music production software, the Studio 68c interface works with virtually all macOS® and Windows® recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools or hemmed in with track limitations. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment. And when you’re ready for more features, you can purchase add-ons or upgrade to Studio One Professional to add mastering, Mix Engine FX, and much more.
Superior sound.

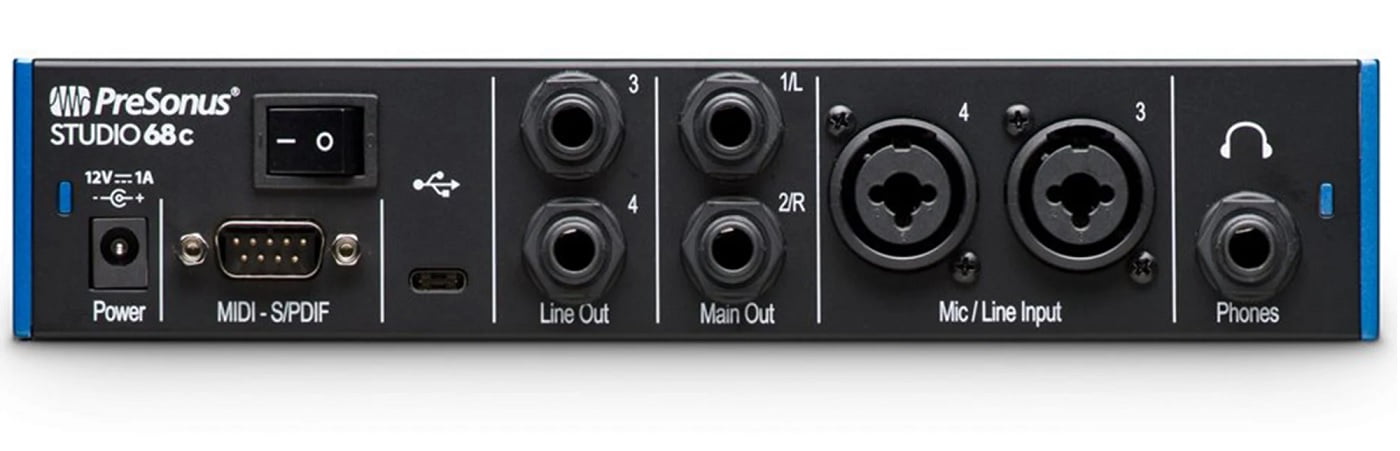

The Studio 68c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and four of PreSonus’ professional-grade XMAX mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX mic preamps are known the world over for their ability to deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound so you’ll hear every breath, transient, and detail in your recordings.
Stress-free recording.
Professional tools make any job easier. That’s why we included professional input and output metering on the Studio 68c, allowing you to keep an eye on your input and mix levels when you’re recording by yourself. An easy-to-use direct monitor control blends the analog input signals with playback from your computer, simplifying monitoring. Two pairs of outputs afford two different stereo mixes. All four ¼-inch TRS, line-level outputs are DC-coupled, enabling them to send control voltages. The Cue A/B button allows you to toggle between each mix while listening in on headphones, great for live performance and studio alike.
Wherever sound takes you.
When you’re upgrading your performance rig or building a custom production studio, the Studio 68c will give you clear, clean, ultra-high-def sound, with the professional tools you need to achieve world-class results. While it’s a perfect companion for any recording software, the Studio 68c combines with included Studio One Artist to provide you with a complete, affordable recording solution that will make you sound great.
Works with iOS and iPadOS devices.
The PreSonus Studio 68c is compatible with iOS® and iPadOS® devices, including iPad® Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone®. Because it’s USB class-compliant, there are no special drivers or applications to download and install. You’ll be able to produce on the go—everything from podcasts to folk rock to trap—wherever sound takes you.
Features
Input/Output
- Simultaneous I/O up to 6 inputs/6 outputs (4×4 at 192 kHz)
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 2 mic/line inputs with XMAX Class A mic preamps
- 2 balanced ¼-inch TRS main outputs
- DC coupled for sending control voltages
- 2 balanced ¼-inch TRS line outputs for monitor mixing
- DC coupled for sending control voltages
- 1 stereo headphone output
- MIDI In/Out
- Stereo S/PDIF digital I/O
- 1 USB-C®-compatible 2.0 port
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
Meters, Controls, and Features
- Direct monitoring
- Cue mix A/B (for headphone output)
- Front-panel level controls for main outputs
- True +48V phantom power for condenser microphones (global)
- 6 ladder-style LED level meters (4 input, 2 main output)
Integrated Software
- Studio One Artist®
- Studio Magic Software Suite
Digital
- USB-C®-compatible port (USB 2.0)
- 24-bit resolution
- 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
Physical
- Road-rugged construction with all-metal chassis and metal knobs
Computer system requirements:
Below are the minimum computer-system requirements.
Mac®
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 processor or better
- 4 GB RAM (8 GB or more recommended)
Windows®
- Windows 10 (64-bit only)
- Intel Core i3 / AMD A10 processor or better
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C® or USB-A 2.0 port compatibility
- 30 GB hard disk space
- Monitor with 1366×768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
Technical Specifications
| General | |
|---|---|
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, or 192 kHz |
| Converter Resolution | 24 bit |
| Converter Dynamic Range | 114 dB |
| Converter Dynamic Range | 114 dB |
| Microphone Inputs | |
|---|---|
| Maximum Level | +16 dBu (balanced, min gain) |
| Gain Range | 80 dB |
| Frequency Response | 20 Hz – 20 kHz (±0.15 dB, min gain, 48 kHz) |
| Dynamic Range | 114 dB (A-wtd, min gain) |
| THD + N | 0.007% (1 kHz, -1 dBFS, min gain) |
| EIN | -130 dBu (max gain, 150Ω, A-wtd) |
| Input Impedance | 1.6 kΩ |
| Phantom Power | +48 VDC (10 mA per channel) |
| Line Inputs | |
|---|---|
| Maximum Level | +22 dBu (balanced, min gain) |
| Gain Range | 40 dB |
| Frequency Response | 20 Hz – 20 kHz (±0.15 dB, min gain, 48 kHz) |
| Dynamic Range | 113.9 dB (A-wtd, min gain) |
| THD + N | 0.007% (1 kHz, -1 dBFS, min gain) |
| Input Impedance | 10 kΩ |
| Instrument Inputs | |
|---|---|
| Maximum Level | +15 dBu (unbalanced, min gain) |
| Gain Range | 80 dB |
| Frequency Response | 20 Hz – 20 kHz (±0.1 dB, 48 kHz, min gain) |
| Dynamic Range | 114.7 dB (A-wtd, min gain) |
| THD + N | 0.012% (1 kHz, -1 dBFS, min gain) |
| Input Impedance | 1 MΩ |
| Line Outputs (Mains) | |
|---|---|
| Type | ¼” TRS Female, DC Coupled |
| Maximum Level | +18 dBu (balanced) |
| Frequency Response | 20 Hz – 20 kHz (±0.2 dB, unity gain, 48 kHz) |
| Dynamic Range | 109 dB (A-wtd) |
| THD + N | 0.001% (1 kHz, -1 dBFS) |
| Line Outputs (3/4) | |
|---|---|
| Type | ¼” TRS Female, DC coupled |
| Maximum Level | +18 dBu (balanced) |
| Frequency Response | 20 Hz – 20 kHz (+/- 0.2 dB, unity gain, 48 kHz) |
| Dynamic Range | 109 dB (A-wtd) |
| THD + N | 0.0015% (1 kHz, -1 dBFS) |
| Headphone Outputs | |
|---|---|
| Maximum Power | 150 mW/channel (56Ω load) |
| Frequency Response | 20 Hz – 20 kHz (±0.2 dB, 56Ω load, 48 kHz) |
| Dynamic Range | 107 dB (A-wtd, 56Ω load) |
| THD + N | 0.002% (1 kHz, -1 dBFS, no load) |
| Impedance Working Range | 32Ω to 300Ω |
| Physical | |
| Height | 1.75″ (44 mm) |
| Width | 9″ (229 mm) |
| Depth | 5.5″ (140 mm) |
| Weight | 2.4 lbs (1 kg) |

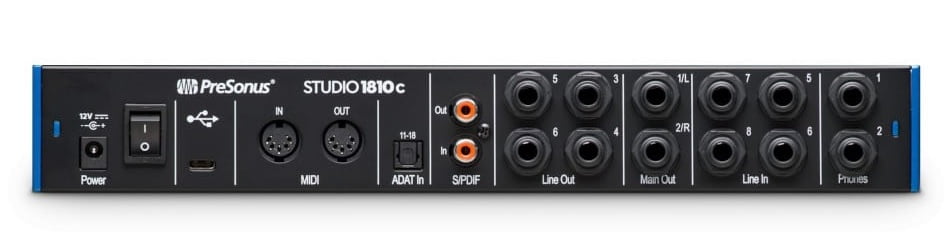

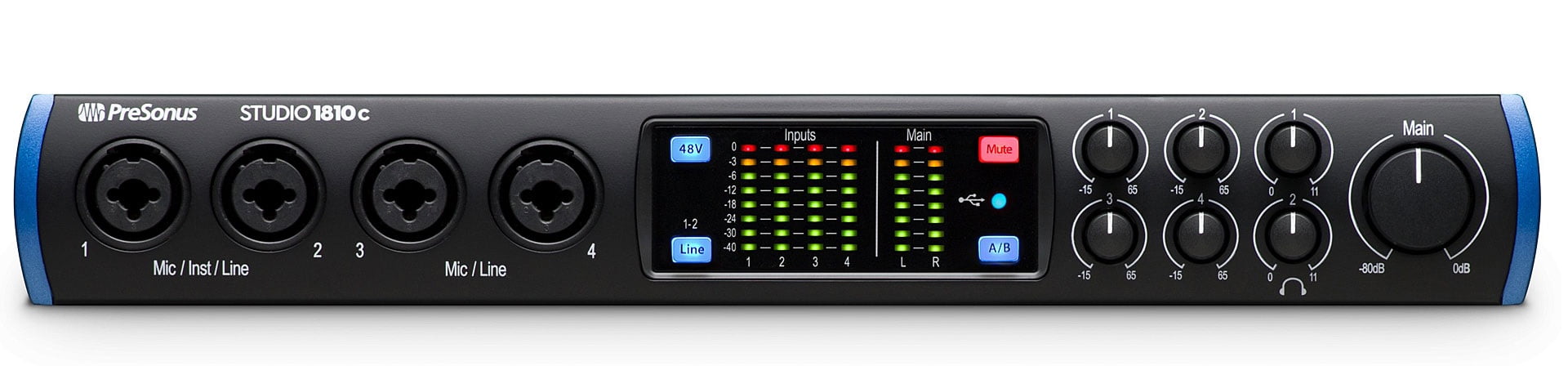

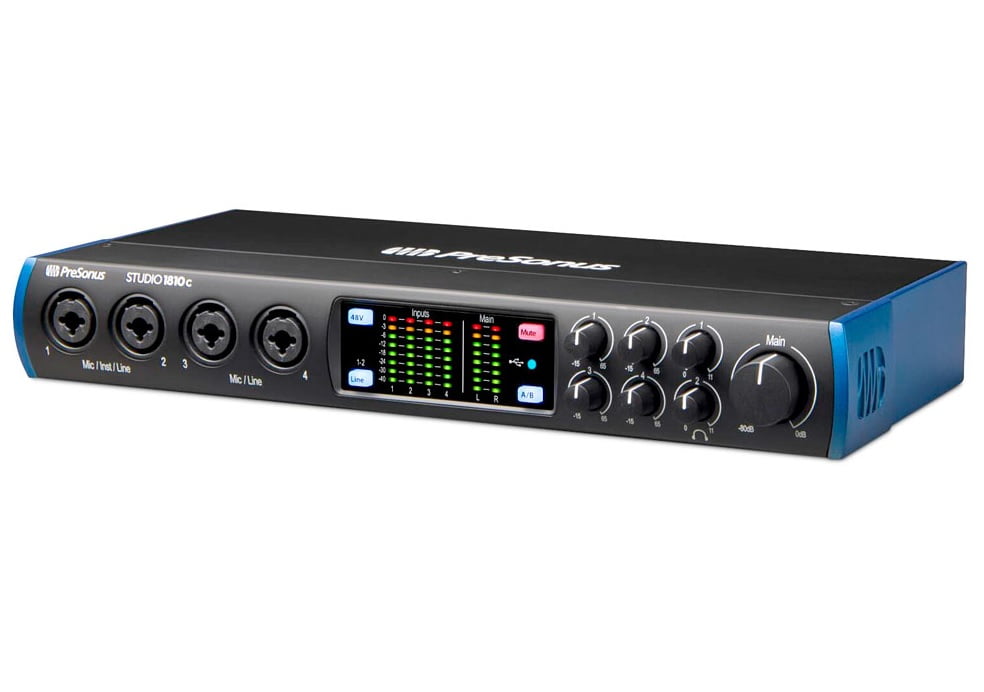

Record anything, anywhere.
You don’t need to sacrifice mobility for connectivity. Take amazing studio-quality sound and flexible input options on the road with the PreSonus® Studio 1810c audio interface. With four of PreSonus’ lauded XMAX analog mic preamps, high-quality instrument preamps, balanced line-level inputs, and an ADAT input to add eight more channels whenever you need them, the Studio 1810c is a compact recording powerhouse housed in a rugged, roadworthy chassis. A complete, all-in-one recording package that includes Studio One® Artist music production software is included with the Studio 1810c, offering unlimited tracking with tight control-room integration.
World-class recording software included.
Seamlessly integrated with the included PreSonus UC Surface control software for macOS®, Windows®, iPad®, and Android™ tablet and with Studio One Artist, the Studio 1810c audio interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production? Studio One lets you shop, audition, and purchase new content right from your production environment. You also get third-party plug-in, ReWire, and Studio One Remote support!
Superior sound.
The Studio 1810c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and four of PreSonus’ professional-grade XMAX mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX mic preamps are known the world over for their ability to deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound. You’ll hear every breath, transient, and detail in your recordings.
Stress-free recording.
Professional tools make any job easier. That’s why we included professional input and output metering on the Studio 1810c, allowing you to keep an eye on your input and mix levels while running your session. Easy-to-use DSP monitor mixing lets you create four discrete mixes for you and three others. Two pairs of outputs afford two different stereo mixes. The Cue A/B button allows you to toggle between each mix while listening in on headphones, great for dialing in monitor mixes from the control room.
Wherever sound takes you.
When you need to be ready to create professional recordings anywhere, the Studio 1810c has you covered with superior mic preamps and expandable inputs to give you world-class results. While it’s a perfect companion for any recording software, the Studio 1810c and included Studio One Artist provide you with a complete, affordable recording solution that will make you sound great.
Works with iOS and iPadOS devices.
The PreSonus Studio 1810c is compatible with iOS and iPadOS devices, including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone. Because it’s USB class-compliant, there are no special drivers or applications for you to download and install. You’ll be able to produce on the go—everything from podcasts to folk rock to trap, wherever sound takes you.
Features
Input/Output
- Simultaneous I/O up to 18 inputs/8 outputs (8×6 at 192 kHz)
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 2 mic/line inputs with XMAX Class A mic preamps
- 4 balanced ¼-inch TRS direct-to-ADC line inputs
- 8 channels of ADAT Optical input (4 channels at 96 kHz)
- 2 balanced ¼-inch TRS main outputs
- DC coupled for sending control voltages
- 4 balanced ¼-inch TRS line outputs for monitor mixing
- DC coupled for sending control voltages
- 2 stereo headphone outputs with the same mix or independent mixes
- MIDI In/Out
- Stereo S/PDIF digital I/O
- 1 USB-C®-compatible 2.0 port
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
Integrated Software
- Studio One® Artist for macOS® and Windows®
- UC Surface control software for macOS, Windows, iPad®, and Android™
- Studio Magic Software Suite
Meters, Controls, and Features
- 18×6 onboard DSP monitor mixer
- Front-panel mute and level controls for main outputs
- True +48V phantom power for condenser microphones (global)
- 6 ladder-style 8-LED level meters (4 input, 2 main output)
Digital
- USB-C®-compatible port (USB 2.0)
- 24-bit resolution
- 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
Physical
- Road-rugged construction with all-metal chassis and metal knobs
Computer system requirements:
Below are the minimum computer-system requirements.
Mac®
- macOS® 10.13 or higher (64-bit only)
- Intel® Core™ i3 processor or better
- 4 GB RAM (8 GB or more recommended)
Windows®
- Windows 10 (64-bit only)
- Intel Core i3 / AMD A10 processor or better
- 4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
- USB-C® or USB-A 2.0 port compatibility
- 30 GB hard disk space
- Monitor with 1366×768 resolution (high-dpi monitor recommended)
- Multitouch-enabled monitor required for touch operation
Technical Specifications
| General | |
|---|---|
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Converter Resolution | 24-bit |
| Converter Dynamic Range | 114 dB |
| Converter Dynamic Range | 114 dB |
| Microphone Inputs | |
|---|---|
| Maximum Level | +16 dBu, min gain |
| Gain Range | 80 dB |
| Frequency Response | 20 Hz – 20 kHz (unity gain) |
| Dynamic Range | 110 dB (A-wtd, min gain) |
| THD + N | 0.005% (1 kHz, 0dBu, unity gain) |
| EIN | -128 dBu (A-wtd, 20 kHz BW, Rs=150Ω, max gain) |
| Input Impedance | 1400Ω |
| Phantom Power | 48V (>10 mA per channel) |
| Line Inputs | |
|---|---|
| Maximum Level | +21 dBu (balanced, min gain) |
| Gain Range | 40 dB |
| Frequency Response | 20 Hz-20 kHz (unity gain) |
| Dynamic Range | 112 dB (A-wtd, min gain) |
| THD + N | 0.005% (1 kHz, +18 dBu, min gain) |
| Input Impedance | 10 kΩ |
| Instrument Inputs | |
|---|---|
| Maximum Level | +15 dBu (unbalanced, min gain) |
| Gain Range | 80 dB |
| Frequency Response | 20 Hz – 20 kHz (min gain) |
| Dynamic Range | 112 dB (A-wtd, min gain) |
| THD + N | 0.020% (1 kHz, +10 dBu, min gain) |
| Input Impedance | 1M Ω |
| Main Outputs | |
|---|---|
| Type | ¼” TRS female, DC Coupled |
| Maximum Level | +18 dBu, balanced |
| Frequency Response | 20Hz – 20kHz (unity gain) |
| Dynamic Range | 108 dB (A-wtd, unity gain) |
| THD + N | 0.004% (1 kHz, -1 dBFS, unity gain) |
| Line Outputs | |
|---|---|
| Type | ¼” TRS female, DC coupled |
| Maximum Level | +18 dBu, balanced |
| Frequency Response | 20 Hz – 20 kHz |
| Dynamic Range | 108 dB (A-wtd, -60 dBFS) |
| THD + N | 0.004% (1 kHz, -1 dBFS, unity gain) |
| Headphone Outputs | |
|---|---|
| Maximum Power | 150 mW/channel (60Ω load) |
| Frequency Response | 20 Hz – 20 kHz (unity gain) |
| Dynamic Range | 103 dB (A-weighted, 1 kHz, unity gain) |
| THD + N | 0.250% (1 kHz, 150 mW, unity gain) |
| Impedance Working Range | 32Ω to 600Ω |
| Physical | |
| Height | 1.75″ (44 mm) |
| Width | 12.5″ (317 mm) |
| Depth | 5.5″ (140 mm) |
| Weight | 3.2 lbs (1.45 kg) |
Record the entire band.
PreSonus® was a pioneer in high-channel-count audio interfaces and has spent the last 20 years listening to our customers and creating the best audio interfaces for recording large sessions. The Studio 1824c provides amazing sound-quality with eight of PreSonus’ lauded XMAX analog mic preamps onboard and pristine 24-bit 192 kHz conversion. Add two low-noise instrument preamps, balanced line-level inputs, and an ADAT input to add 8 more channels whenever you need them, and you have an audio interface ready to record just about any session. A complete, all-in-one recording package, Studio One® Artist music production software, is included with the Studio 1824c, offering unlimited tracking with tight control-room integration.
Superior sound.
The Studio 1824c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and eight of PreSonus’ professional-grade XMAX mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX mic preamps are known the world over for their ability to deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound so you’ll hear every breath, transient, and detail in your recordings.
Stress-free recording.
Professional tools make any job easier. That’s why we included professional input and output metering on the Studio 1824c, allowing you to keep an eye on your input and mix levels while running your session. Easy-to-use DSP monitor mixing lets you create four discrete near-zero-latency monitor mixes, enough for even the largest ensembles. All line-level outputs are also DC coupled, enabling them to send control voltages. Front-panel Mute, Mono, and level controls let you work with your main mix.
Wherever sound takes you.
Whether you’re upgrading your studio or building a new space for your band to record, the Studio 1824c has you covered with superior mic preamps, expandable inputs, and powerful, easy-to-use onboard monitor mixing to give you the world-class results you want. While it’s a perfect companion for any recording software, the Studio 1824c combines with the included Studio One Artist to provide a complete, affordable recording solution that will make you sound great.
Works with iOS and iPadOS devices.
The PreSonus Studio 1824c is compatible with iOS and iPadOS devices including iPad Pro, iPad, iPad Air, iPad Mini, iPod Touch, and iPhone. Because it’s USB class-compliant, there are no special drivers or applications to download and install. You’ll be able to produce on the go—everything from podcasts to folk rock to trap—wherever sound takes you.
Features
Input/Output
- Up to 18 inputs/20 outputs simultaneously (8×8 at 192 kHz)
- 2 mic/instrument/line inputs with XMAX Class A mic preamps
- 6 mic/line inputs with XMAX Class A mic preamps
- 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
- 2 balanced ¼-inch TRS main outputs
- DC coupled for sending control voltages
- 8 balanced ¼-inch TRS line outputs for monitor mixing
- DC coupled for sending control voltages
- 2 stereo headphone outputs with individual level controls
- MIDI In/Out
- Stereo S/PDIF digital I/O
- 1 USB-C® -compatible 2.0 port
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
- BNC word clock output
Integrated Software
- Studio One® Artist for macOS® and Windows®
- UC Surface control software for macOS, Windows, iPad®, and Android™
- Studio Magic Software Suite
Meters, Controls, and Features
- 18×8 onboard DSP monitor mixer
- Front-panel level controls for main outputs
- Mono and Mute buttons for the main outputs
- True +48V phantom power for condenser microphones (global)
- 10 ladder-style 8-LED level meters (8 input, 2 main output)
Digital
- USB-C® -compatible port (USB 2.0)
- 24-bit resolution
- 44.1, 48, 88.2, 96, 176.4, and 192 kHz sampling rates
Physical
- 1U rack-mountable
- Road-rugged construction with all-metal chassis and metal knobs
Technical Specifications
| General | |
|---|---|
| Sample Rates | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Converter Resolution | 24-bit |
| Converter Dynamic Range | 114 dB |
| Converter Dynamic Range | 114 dB |
| Microphone Inputs | |
|---|---|
| Maximum Level | +16 dBu, min gain |
| Gain Range | 80 dB |
| Frequency Response | 20 Hz – 20 kHz (unity gain) |
| Dynamic Range | 110 dB (A-wtd, min gain) |
| THD + N | 0.005% (1 kHz, 0dBu, unity gain) |
| EIN | -128 dBu (A-wtd, 20 kHz BW, Rs=150Ω, max gain) |
| Input Impedance | 1400Ω |
| Phantom Power | 48V (>10 mA per channel) |
| Line Inputs | |
|---|---|
| Maximum Level | +21 dBu (balanced, min gain) |
| Gain Range | 40 dB |
| Frequency Response | 20 Hz-20 kHz (unity gain) |
| Dynamic Range | 112 dB (A-wtd, min gain) |
| THD + N | 0.005% (1 kHz, +18 dBu, min gain) |
| Input Impedance | 10 kΩ |
| Instrument Inputs | |
|---|---|
| Maximum Level | +15 dBu (unbalanced, min gain) |
| Gain Range | 80 dB |
| Frequency Response | 20 Hz – 20 kHz (min gain) |
| Dynamic Range | 112 dB (A-wtd, min gain) |
| THD + N | 0.020% (1 kHz, +10 dBu, min gain) |
| Input Impedance | 1M Ω |
| Main Outputs | |
|---|---|
| Type | ¼” TRS female, DC Coupled |
| Maximum Level | +18 dBu, balanced |
| Frequency Response | 20Hz – 20kHz (unity gain) |
| Dynamic Range | 108 dB (A-wtd, unity gain) |
| THD + N | 0.004% (1 kHz, -1 dBFS, unity gain) |
| Line Outputs | |
|---|---|
| Type | ¼” TRS female, DC coupled |
| Maximum Level | +18 dBu, balanced |
| Frequency Response | 20 Hz – 20 kHz |
| Dynamic Range | 108 dB (A-wtd, -60 dBFS) |
| THD + N | 0.004% (1 kHz, -1 dBFS, unity gain) |
| Headphone Outputs | |
|---|---|
| Maximum Power | 150 mW/channel (60Ω load) |
| Frequency Response | 20 Hz – 20 kHz (unity gain) |
| Dynamic Range | 103 dB (A-weighted, 1 kHz, unity gain) |
| THD + N | 0.250% (1 kHz, 150 mW, unity gain) |
| Impedance Working Range | 32Ω to 600Ω |
| Physical | |
| Height | 1.75″ (44 mm) |
| Width | 19″ (483 mm) |
| Depth | 5.5″ (140 mm) |
| Weight | 4.8 lbs (2.2 kg) |
