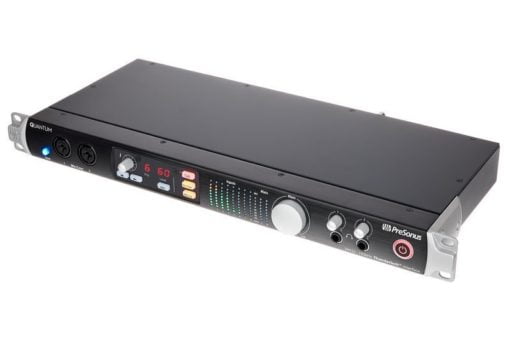

PreSonus Quantum

Rp24.650.000

Description

The speed of sound.

With a barely measurable round trip latency of less than 1 ms*, it’s no wonder Sound on Sound magazine dubbed the Quantum Thunderbolt™ 2 audio interface “the fastest audio interface on the planet.” Superb high-definition digital conversion and ultra-transparent XMAX remote-controllable mic preamps mean that your audio will always sound its best—whether you’re recording with or without your favorite plug-ins engaged in real-time.

Timeless audio.

Every design decision during Quantum’s engineering was made with one goal in mind: blazing fast speed without sonic compromise. The Quantum-series proprietary Thunderbolt driver was written from the ground up to deliver ultra-low-latency performance while maximizing efficiency. Cutting-edge 24-bit, 192 kHz converters with 120 dB of dynamic range and superior low-jitter clocking, coupled with our ultra-transparent XMAX remote-controllable preamps, result in superb audio quality with the lowest roundtrip latency of any audio interface available (<1 ms*).

*192 kHz, 64 sample buffer in Studio One 3.5 on a MacBook Pro 2016, 2.7 GHz Intel Core i7, running macOS 10.12.5

Superior sound. Sublime recall.

Audiophile-grade digital converters, low-jitter clocking, and recallable preamps add up to a superior recording and listening experience. The Quantum audio interface operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality converters on every input and output provide 120 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion. And our recallable XMAX Class A analog microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound so you’ll hear every breath, transient, and detail in your recordings.

The Quantum leap.

Industry-leading speed and pristine audio quality, combined with jaw-dropping expandability, are the hallmarks of the Quantum interface design. Record and monitor from your favorite DAW with any plug-in engaged. Take advantage of onboard mix features like Mute, Dim, Mono, and integrated Talkback. Regardless of your studio’s size, Quantum audio interfaces streamline your recording process—you’ll make better music, faster.

Features

General Features

  • 26×32 Thunderbolt ultra-low-latency audio interface
  • PreSonus®’ fastest interface; record direct to DAW (no DSP)
  • Stack up to four Quantum interfaces via Thunderbolt for a monster system
  • Talkback switch and internal Talkback microphone
  • Mute/Dim and Mono switches
  • Assignable output level control
  • 10 8-segment LED meters (8 input, 2 output)

Integrated Software

  • Tight integration with included Studio One® Artist DAW software (macOS®/Windows®) for multitrack music production and studio command features
  • Wireless control over preamp levels from free UC Surface touch-control software for iPad® and Android™ tablet and from free Studio One Remote for iPad and Android tablet
  • Wired control over preamp levels from free UC Surface touch-control software for Mac® and Windows computers
  • Compatible with most recording software for macOS and Windows
  • Studio Magic Software Suite included

Flexible Connectivity

  • Simultaneous I/O up to 26 inputs/32 outputs (at 44.1 or 48 kHz)
  • 2 front-panel combo microphone/instrument/line inputs
  • 6 rear-panel combo microphone/line-level inputs
  • 8 XMAX remote-controllable, Class A mic preamps with individually switched 48V phantom power
  • 2 balanced ¼-inch TRS line-level main outputs
  • 8 balanced ¼-inch TRS line-level outputs
  • Line outputs are DC coupled for sending control voltages for analog gear
  • ADAT Optical/Dual SMUX inputs/outputs: 16×16 channels at 44.1 or 48 kHz; 8×8 channels at 88.2 or 96 kHz
  • Stereo S/PDIF coaxial input and output
  • 2 high-volume headphone outputs with dedicated volume controls

Digitalia

  • Thunderbolt 2 high-speed bus (Thunderbolt 3 compatible)
  • 24-bit resolution and up to 192 kHz sampling rate
  • Top-quality 120 dB A/D/A converters
  • BNC word clock input and output with low-jitter clocking
  • MIDI I/O on 5-pin DIN connectors

Physical

  • Road-rugged construction with all-metal chassis and metal knobs
  • 1U rack-mountable
  • 12 VDC external power supply (included)

Technical Specifications

Microphone Preamp

TypeXLR Female (via Combo), Balanced
Maximum Input Level+10 dBu (Balanced, min. gain)
Gain Control Range60 dB
Frequency Response20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz)
20 Hz to 40 kHz (±0.22 dB, unity gain, 96 kHz)
Dynamic Range> 110 dB (A-wtd, min. gain)
Total Harmonic Distortion< 0.005% (1 kHz, min. gain)
EIN< -131 dBu (max gain, 40Ω, 22 kHz BW, A-wtd)
Input Impedance1.6 kΩ
Phantom Power+48V, > 8 mA per input



Instrument Inputs

Type¼” TS Female (via Combo), Unbalanced
Maximum Input Level+15 dBu (Unbalanced, min. gain)
Gain Control Range60 dB
Frequency Response20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
20 Hz to 40 kHz (±0.6 dB, unity gain, 96 kHz)
Dynamic Range> 106 dB (A-wtd, min. gain)
Total Harmonic Distortion< 0.005% (1kHz, min. gain)
Input Impedance> 1 MΩ



Line Inputs

Type¼” TRS Female (via Combo), Balanced
Maximum Input Level+ 18 dBu (Balanced, min. gain)
Frequency Response20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
20 Hz to 40 kHz (±0.10 dB, unity gain, 96 kHz)
Dynamic Range> 118 dB (A-wtd, min. gain)
Total Harmonic Distortion< 0.005% (1 kHz, min. gain)
Input Impedance10 kΩ



Main and Line Outputs

Type¼” TRS Female, impedance balanced, DC Coupled
Maximum Output Level+18 dBu (Balanced)
Frequency Response20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
20 Hz to 40 kHz (±0.15 dB, unity gain, 96 kHz)
Dynamic Range> 118 dB (A-wtd)
Total Harmonic Distortion< 0.0035% (1 kHz, +4 dBu)
Output Impedance51Ω



Headphone Outputs

Type¼” TRS Female, Stereo, Unbalanced, x2
Maximum Output Level175 mW/channel (56Ω load)
Frequency Response20 Hz to 20 kHz (±0.5 dB, 48 kHz)
Dynamic Range> 110 dB (A-wtd)
Total Harmonic Distortion< 0.03% (1 kHz)
Headphone Impedance (working range)16Ω to 300Ω



Crosstalk

Input to Input< -110 dB
Output to Output< -115 dB
Input to Output< -120 dB



Signal Level LEDs

Clip-0.5 dBFS
Signal 1-2 dBFS
Signal 2-4 dBFS
Signal 3-6 dBFS
Signal 4-10 dBFS
Signal 5-20 dBFS
Signal 6-30 dBFS
Signal 7-50 dBFS



Digital Audio

Connection TypeThunderbolt*
ADC Dynamic Range120 dB (A-wtd)
DAC Dynamic Range120 dB (A-wtd)
Bit Depth24 bits
Internally Supported Sample Rates44.1, 48, 88.2, 96, 176.4, 192 kHz



Clock

Jitter< 70 ps RMS (20 Hz – 20 kHz)
Jitter Attenuation> 60 dB (1 ns in => 1 ps out)



Power

12 VDC, 5A, external power supply



Physical

Dimensions
Height1.75″ (44.45 mm)
Depth7″ (177.8 mm)
Width19″ (482.6 mm)
Weight6 lbs (2.72 kg)
