Fluid SRI-2

Rp4.650.000

Description

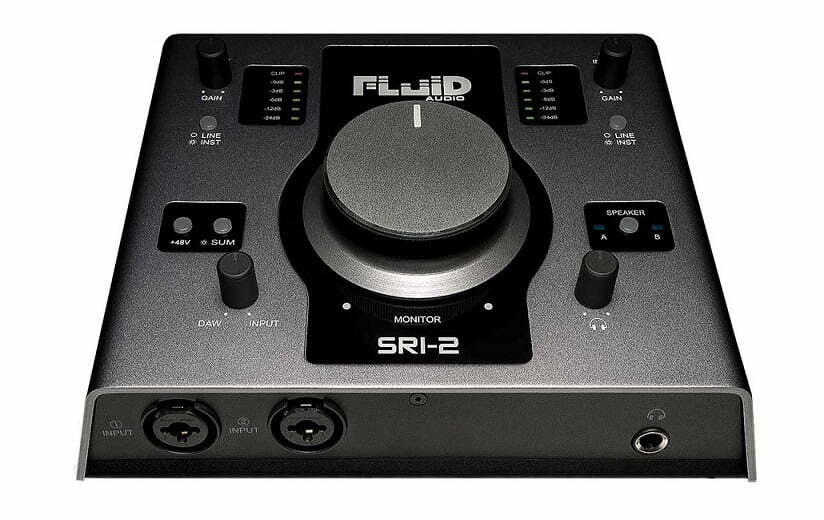

Featuring a robust aluminum chassis, the SRI-2 interface is a sturdy piece of gear reminiscent of the “old school” studios.  Along with the striking design comes exceptional 21st century audio quality and functionality.  Best-in-class digital converters capture the detailed nuance of every recording.  The large volume knob provides accurate control of the output level, and direct monitoring provides zero-latency tracking.  The 2 XLR/TRS combo inputs are conveniently mounted on the front of the SRI-2, so you can easily plug in your instrument or mic.  The truly unique innovation of the SRI-2, however, is the speaker switching capability, which allows you to A-B your mix on two sets of speakers (with one of them hopefully being from Fluid Audio).



Features

  • Anodized aluminum chassis housing and master volume knob
  • Professional grade 24-bit/192kHz digital conversion
  • 2 class A microphone preamps with +48 V phantom power
  • 2 x XLR/TRS combo inputs on the front panel for Line / Mic / Instrument recording

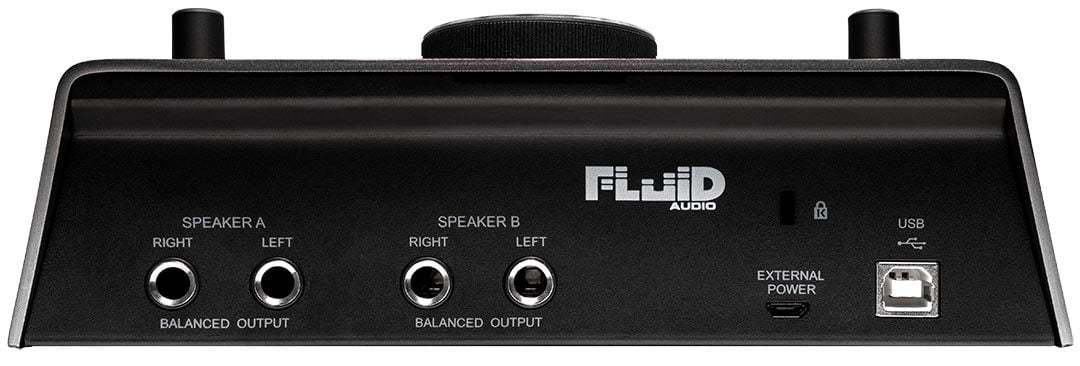

  • 4 TRS outputs, for 2 monitor pairs with A / B button
  • 1 headphone output with separate volume control, 2 x 75mW
  • LED indicators on all knobs
  • Powered by USB 2.0 connection
  • Cubase LE DAW software included via download for PC and Mac
  • Cubasis LE DAW for iPad (IOS 9 and later)
  • OS support: OSX 10.6.4 and newer, Windows 7/8/8.1 and Windows 10 x86/x64





Big Volume Knob

Easy to reach on the top surface, the knob is solid aluminum with rubber grip for good weight and feel



Inputs

Two combo XLR/TRS inputs are front mounted for easy access. High quality pre-amps insure crystal clear signal path.

Low noise mic pre-amps support 48V phantom power.

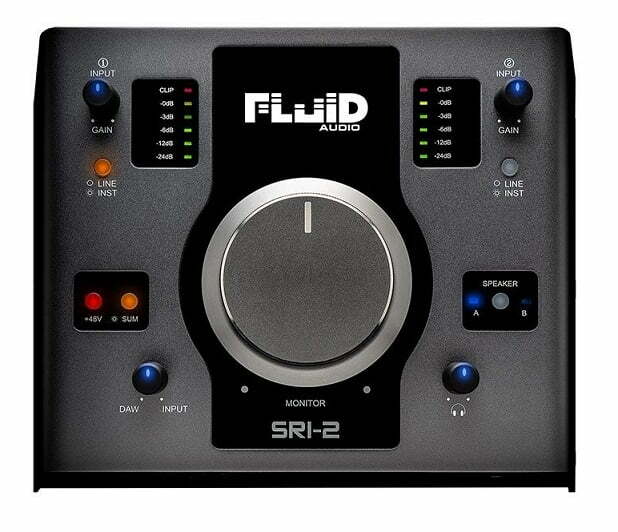

Controls

Inputs, buttons and knobs are placed conveniently on the top surface of the SRI-2. No need to to look down to see what is engaged..

All is clearly in view while recording. LED indicators on all buttons and knobs able you to monitor yours settings even in dimly lit studios.



Ample Power from Headphone output

One of the most powerful headphone outputs in a USB powered device. Create tracks and overdubs with plenty of clarity and power.

Works with headphones up to 250 ohm.



Peak Meter

Clear LED indicators help to clearly see you signal levels to avoid clipping



Record Anywhere

Compact, robust and USB powered. Take it with you anywhere. Use it on the go on your laptop or iPad with the included Cubasis LE Software (with Apple iPad Camera Connection Kit, not included) Includes Cubase LE for windows and OSX



WDM / ASIO / Core Audio

No drivers needed for Windows or OSX. Fluid Audio Windows driver is supplied for an even more flexible setup.

For DAW usage, drivers is needed.



Latency

Direct-monitoring knob provides zero-latency tracking

MIC INPUT 1/2 (Balanced)MAIN OUTPUT L/R (Banlanced)
Maximum Input Level+7 dBuMaximum Output Level+6 dBFS
Input Impedance100 OhmOutput Impedance75 Ohm
GAIN Range+6 dB – +56 dBFrequency response+0.1/-0.1 dB, 20 Hz to 20 kHz
Frequency Response±0.1 dB, 20 Hz to 20 kHzDynamic range102 dB, A-weighted
Dynamic Range104 dB, A-weightedTHD+N0.0014%, 1 kHz, 0 dBFS, 20 Hz/20 kHz BPF
THD+N0.0016%, 1 kHz, -1 dBFS, 20 Hz/20 kHz BPFPHONES
Noise EIN<-120dBu (A-Weighted)Maximum Output Level75 mW +75 mW, @ 32 Ohm
HI-Z INPUT 1/2(Balanced) Dynamic range100 dB, A-weighted
Maximum Input Level+4 dBuTHD+N0.006%, 1 kHz, -1 dBFS, 20 Hz/20 kHz BPF
Input Impedance1M OhmImpedance<10 Ohm
GAIN Range-+12 dB– 52 dBMaximum Output Level dBu+12 dBu
Frequency Response±0.1 dB, 20 Hz to 20 kHzUSB
Dynamic Range104 dB, A-weightedSpecificationUSB 2.0, 24-bit, 44.1 kHz/48 kHz/88.2 kHz/96 kHz/176.4 kHz/192 kHz
THD+N0.0031%, 1 kHz, -1 dBFS, 20 Hz/20 kHz BPFXLR INPUT
LINE INPUT 1/2 (Balanced)PolarityPin 1: Ground, Pin 2: Hot (+), Pin 3: Cold (-)
Maximum Input Level+25 dBu
Input Impedance20k Ohm
GAIN Range-11dB – +29 dB
Frequency Response±0.1 dB, 20 Hz to 20 kHz
Dynamic Range104 dB, A-weighted
THD+N0.005%, 1 kHz, -1 dBFS, 20 Hz/20 kHz BPF
