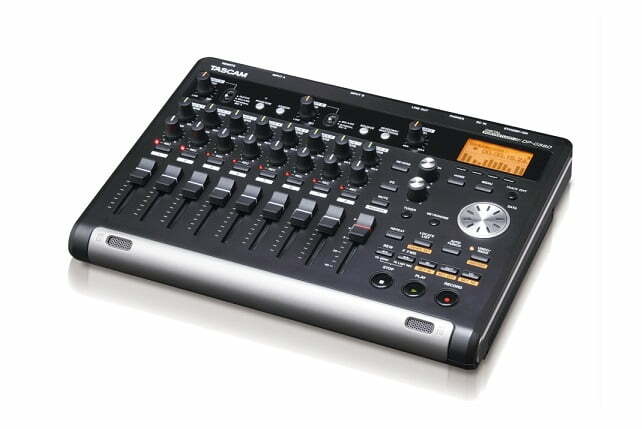

Tascam DP-03SD
Tascam DP-03SD - Image 2
Tascam DP-03SD - Image 3

Tascam DP-03SD

Rp6.700.000

The DP-03SD is an affordable way to get into TASCAM’s famed PORTASTUDIO system of making recording simple and affordable for musicians. The 8-track digital recorder captures your music at CD quality to affordable SD/SDHC cards, and a 4GB card is included with the recorder. With built-in microphones, effects, and mastering, the DP-03SD provides everything musicians need to record and share their music.

Add to wishlist
SKU: TSCM-DP03SD Categories: , ,

Description

Built-in Microphones and Versatile Inputs for Multi-track Recording

A pair of stereo condenser microphones is built into the front panel of the DP-03, helpful for capturing a rehearsal, live performance or songwriting ideas. Also included are a pair of high-quality XLR microphone preamps with phantom power for condenser microphones. 1/4″ line inputs are also available, and an instrument-level switch allows you to record a guitar or bass without a direct box.

Professional-grade Recording Technologies

Routing the inputs to one of the eight tracks is simple, and you can record two at a time until you fill up all eight. A tuner and metronome are built-in for tight-sounding tracks, each with its own dedicated button for quick access. Track can be edited with commands like copy/paste, silence, clone track and undo. Bouncing is also available, even bouncing all eight tracks down to one or two. There’s even the option to import a WAV file through USB.

Flexible Editing Functions for the Perfection

Each track has its own send to a stereo reverb processor as well as two-band shelving EQ. Once you’ve perfected your mix with the 45mm faders, pan knobs, reverb and EQ, record it to the dedicated stereo master track. Your mix can be processed with mastering effects like EQ and limiting for a tight, modern sound. When you’re satisfied, transfer your mix to a computer over USB 2.0.

Optional foot switch remote control

An optional 3-button foot switch, the RC-3F is available for control and punch in.
Recording mediaSD card (512MB to 2GB), SDHC card (4GB to 32GB)
File systemTASCAM original (MTR partition) / FAT32 (FAT partition)
INPUT A
XLR
ConnectorXLR-3-31(1: GND, 2: HOT, 3: COLD), BALANCED
Input impedance2.4kΩ
Nominal input level–16dBu
Maximum input level0dBu
1/4″ TS-jack
Connector1/4″ (6.3mm) TRS-jack (Tip: HOT, Ring: COLD, Sleeve: GND), BALANCED
Input impedance10kΩ or more (INPUT A: MIC/LINE), 1MΩ (INPUT A: GUITAR)
Nominal input level+4dBu (INPUT A: MIC/LINE), –2dBV (INPUT A: GUITAR)
Maximum input level+24dBu (INPUT A: MIC/LINE),+14dBV (INPUT A: GUITAR)
Headroom20dB (INPUT A: MIC/LINE), 16dB (INPUT A: GUITAR)
INPUT B
XLR
ConnectorXLR-3-31(1: GND, 2: HOT, 3: COLD), BALANCED
Input impedance2.4kΩ
Nominal input level–16dBu
Maximum input level0dBu
1/4″ TS-jack
Connector1/4″ (6.3mm) TRS-jack (Tip: HOT, Ring: COLD, Sleeve: GND), BALANCED
Input impedance10kΩ or more
Nominal input level+4dBu
Maximum input level+24dBu
Headroom20dB
Bulit-in microphonesOmni-directional microphones × 2
LINE OUT
ConnectorsRCA pin-jack
Nominal output level–10dBV
Maximum output level+6dBV
PHONES
Connector1/8″ (3.5mm) stereo mini jack
Maximum output level40mW + 40mW or more (THD+N less than 0.1%, 32Ω loaded)
USB
ConnectorUSB Mini-B type 4-pin
FormatUSB2.0 HIGH SPEED mass storage class
Remote Control
Connector2.5mm TS-jack
PowerAC 100-240V, 50/60Hz (AC adapter TASCAM PS-P1225L)
Power consumption5W
Dimensions (W×H×D)11.4″ × 2.1″ × 8.2″ / 290 × 54.1 × 207.2 mm
Weight3.1 lbs. / 1.4 g (excluding AC Adapter)
Operating temperature41˚F to 95˚F / 5˚C to 35˚C
Backup memoryIn the PREFERENCES, contents of “Repeat Int”, “Contrast”, and “FootSW Polarity”.
AccessoriesAC Adapter (TASCAM PS-1225L), Power Cord for AC Adapter, SD Card (installed in the main unit), Warranty card, Owner’s manual



Operating system requirements
Windows
CPUPentium 300MHz or faster
Memory128MB or more
InterfaceUSB port (USB2.0 and Intel chipset recommended)
OSWindows XP, Windows Vista, Windows 7, Windows 8 (including 8.1)
Macintosh
CPUPowerPC, iMac, G3, G4 266MHz or faster
Memory64MB or more
InterfaceUSB port (USB2.0 and Intel chipset recommended)
OSMac OS X Jaguar (V10.2), Mac OS X Panther (V10.3), Mac OS X Tiger (V10.4), Mac OS X Leopard (V10.5), Mac OS X Snow Leopard (V10.6.8), OS X Lion (V10.7), OS X Mountain Lion (V10.8)



Audio performance
Frequency response20Hz to 20kHz (+1/–3dB, INPUT (MIC/LINE) to LINE OUT)
DistortionLess than 0.01% (INPUT (MIC/LINE) to LINE OUT)
S/N ratioMore than 90dB (INPUT (MIC/LINE) to LINE OUT)

DP-03SD Tested media List

Last update:October 8, 2015
MakerSeriesModelCapacityResult
SanDiskSanDisk Extreme PRO®
SDHC™ UHS-I Memory Card
(U3, Class10)		SDSDXPA-032G-JU332GBOK
SDSDXPA-016G-JU316GBOK
SanDisk Extreme®
SDHC™ UHS-I Memory Card
(U3, Class10)		SDSDXL-032G-JU332GBOK
SDSDXL-016G-JU316GBOK
SanDisk®
SDHC™ Memory Card (CLASS4)		SDSDB-008G-J018GBOK
SonySDHC™ Memory Card UHS-I CL10
(U3, Class10)		SF-32UX232GBOK
TOSHIBAEXCERIA™ UHS-I SDHC™ Memory Card
(U3, Class10)		SD-JU032G32GBOK
SD-JU016G16GBOK



MakerSeriesModelCapacityResult
SanDiskSanDisk Extreme PRO®
SDHC™ UHS-I Memory Card (Class10)		SDSDXPA-032G-J35N32GBOK
SDSDXPA-016G-J35N16GBOK
SanDisk Extreme Pro®
SDHC™UHS-I Card (Class10)		SDSDXPA-032G-J3532GBOK
SDSDXPA-016G-J3516GBOK
SanDisk Extreme® PLUS
SDHC™ UHS-I card (Class10)		SDSDXS-032G-J35P32GBOK
SDSDXS-016G-J35P16GBOK
SanDisk Extreme®
SDHC™ UHS-I card (Class10)		SDSDXL-032G-J3532GBOK
SDSDXL-016G-J3516GBOK
SDSDXS-032G-J3532GBOK
SDSDXS-016G-J3516GBOK
SDSDXS-008G-J358GBOK
SDSDX-032G-J3532GBOK
SDSDX-016G-J3516GBOK
SanDisk Extreme®
SDHC™ Card (Class10)		SDSDX3-032G-J31A32GBOK
SDSDX3-016G-J31A16GBOK
SDSDX3-008G-J31A8GBOK
SDSDX3-004G-J31A4GBOK
SanDisk Extreme®
HD Video SDHC™ Card (Class10)		SDSDX3-016G-J21N16GBOK
SDSDX3-8192-J21N8GBOK
SDSDX3-4096-J21N4GBOK
SanDisk Ultra® PLUS
SDHC™ UHS-I Memory Cards (Class10)		SDSDUP-016G-J3516GBOK
SDSDUP-008G-J358GBOK
SanDisk Ultra®
SDHC™ UHS-I Card (Class10)		SDSDU-032G-J3532GBOK
SDSDU-016G-J3516GBOK
SDSDU-008G-J358GBOK
SanDisk Ultra®
SDHC™ UHS-I Card (Class6)		SDSDH-004G-J354GBOK
SanDisk Ultra®
SD™/SDHC™ Card (CLASS 4)		SDSDH-032G-J9532GBOK
SDSDH-016G-J9516GBOK
SDSDH-008G-J958GBOK
SDSDH-004G-J954GBOK
SDSDH-002G-J952GBOK
SanDisk Standard
SD™/SDHC™ Card		SDSDB-032G-J95A32GBOK
SDSDB-016G-J95A16GBOK
SDSDB-8192G-J95A8GBOK
SDSDB-4096G-J95A4GBOK
SDSDB-8192-J958GBOK
SDSDB-4096-J954GBOK
SDSDB-2048-J95B2GBOK
LexarLexar® Professional 600x
SDHC™ UHS-I Card (Class10)		LSD32GCTBJP60032GBOK
LSD16GCTBJP60016GBOK
Lexar® Professional 400x
SDHC™ UHS-I Card (Class10)		LSD32GCTBJP40032GBOK
LSD16GCTBJP40016GBOK
LSD8GBCTBJP4008GBOK
Lexar® Professional 133x
SDHC™ Card (Class6)		LSD4GBDRBJP1334GBOK
LSD8GBDRBJP1338GBOK
Lexar® Platinum II 200x
SDHC™ UHS-I Card (Class10)		LSD32GBBJP20032GBOK
LSD16GBBJP20016GBOK
Lexar® Platinum II 200x
SDHC™ UHS-I Card (Class10)		LSD8GBBBJP200C108GBOK
Lexar® Platinum II 60x
SDHC™ Card(Class6)		LSD4GBBCJP0604GBOK
LSD16GBCJP06016GBOK
Lexar® Secure Digital High Capacity (SDHC™) Card (Class2)LSD4GBACJP4GBOK
Lexar Secure Digital (SD™) Card (Class2)LSD2GBACJP2GBOK
PanasonicPremium PRO SDHC UHS-I Card (Class10)
R:95MB/s W:80MB/s		RP-SDAB16GJK16GBOK
RP-SDAB08GJK8GBOK
Premium SDHC UHS-I Card (Class10)
R:90MB/s W:45MB/s		RP-SDUB08GJK8GBOK
SDHC Card
(Class10) R:20MB		RP-SDWA16GJK16GBOK
RP-SDWA04GJK4GBOK
SDHC Class10RP-SDW32GJ1K32GBOK
RP-SDW16GJ1K16GBOK
RP-SDW08GJ1K8GBOK
RP-SDW04GJ1K4GBOK
SDHC Card
(Class4) R:20MB		RP-SDLB16GJK16GBOK
RP-SDLB08GJK8GBOK
RP-SDLB04GJK4GBOK
SDHC Class4RP-SDP02GJ1K2GBOK



–Supported Media

SD card
MakerSeriesModelCapacity
LexarLexar® Platinum II 200x SDHC™ UHS-I Memory Card (Class10)LSD16GBBJP20016GB
LexarLexar® Platinum II 200x SDHC™ UHS-I Memory Card (Class10)LSD32GBBJP20032GB
LexarLexar® Platinum II 200x SDHC™ UHS-I Memory Card (Class10)LSD8GBBBJP200C108GB
LexarLexar® Platinum II 60x SDHC™ Memory Card (Class4)LSD16GBCJP06016GB
LexarLexar® Platinum II 60x SDHC™ Memory Card (Class4)LSD4GBBCJP0604GB
LexarLexar® Professional 133x SDHC™ Memory CardLSD8GBDRBJP1338GB
LexarLexar® Professional 133x SDHC™ Memory Card (Class6)LSD4GBDRBJP1334GB
LexarLexar® Professional 400x SDHC™ UHS-I Memory Card (Class10)LSD16GCTBJP40016GB
LexarLexar® Professional 400x SDHC™ UHS-I Memory Card (Class10)LSD32GCTBJP40032GB
LexarLexar® Professional 400x SDHC™ UHS-I Memory Card (Class10)LSD8GBCTBJP4008GB
LexarLexar® Professional 600x SDHC™ UHS-I Memory Card (Class10)LSD16GCTBJP60016GB
LexarLexar® Professional 600x SDHC™ UHS-I Memory Card (Class10)LSD32GCTBJP60032GB
LexarLexar® Secure Digital (SD™) Memory Card (MULTI USE)LSD2GBACJP2GB
LexarLexar® Secure Digital High Capacity (SDHC™) Memory Card (Class2)LSD4GBACJP4GB
PanasonicPremium PRO SDHC™ UHS-I Memory Card (Class10) R:95MB/s W:80MB/sRP-SDAB08GJK8GB
PanasonicPremium PRO SDHC™ UHS-I Memory Card (Class10) R:95MB/s W:80MB/sRP-SDAB16GJK16GB
PanasonicPremium SDHC™ UHS-I Memory Card (Class10) R:90MB/s W:45MB/sRP-SDUB08GJK8GB
PanasonicSDHC™ Memory Card (Class10)RP-SDW04GJ1K4GB
PanasonicSDHC™ Memory Card (Class10)RP-SDW08GJ1K8GB
PanasonicSDHC™ Memory Card (Class10)RP-SDW16GJ1K16GB
PanasonicSDHC™ Memory Card (Class10)RP-SDW32GJ1K32GB
PanasonicSDHC™ Memory Card (Class10) R:20MBRP-SDWA04GJK4GB
PanasonicSDHC™ Memory Card (Class10) R:20MBRP-SDWA16GJK16GB
PanasonicSD™/SDHC™ Memory Card (Class4)RP-SDP02GJ1K2GB
PanasonicSD™/SDHC™ Memory Card (Class4) R:20MBRP-SDLB04GJK4GB
PanasonicSD™/SDHC™ Memory Card (Class4) R:20MBRP-SDLB08GJK8GB
PanasonicSD™/SDHC™ Memory Card (Class4) R:20MBRP-SDLB16GJK16GB
SanDiskExtreme Pro SD UHS-II cardSDSDXPK-032G-JNJIP32GB
SanDiskExtreme® SDHC™ UHS-I Card (U3,Class10)SDSDXNE-016G-JNJIP16GB
SanDiskSanDisk Extreme Pro® SDHC™ UHS-I Memory Card (Class10)SDSDX-016G-J3516GB
SanDiskSanDisk Extreme Pro® SDHC™ UHS-I Memory Card (Class10)SDSDX-032G-J3532GB
SanDiskSanDisk Extreme Pro® SDHC™ UHS-I Memory Card (Class10)SDSDXPA-016G-J35N16GB
SanDiskSanDisk Extreme Pro® SDHC™ UHS-I Memory Card (Class10)SDSDXPA-032G-J35N32GB
SanDiskSanDisk Extreme Pro® SDHC™ UHS-I Memory Card (Class10)SDSDXS-008G-J358GB
SanDiskSanDisk Extreme Pro® SDHC™ UHS-I Memory Card (Class10)SDSDXS-016G-J3516GB
SanDiskSanDisk Extreme Pro® SDHC™ UHS-I Memory Card (Class10)SDSDXS-032G-J3532GB
SanDiskSanDisk Extreme Pro® SDHC™ UHS-I Memory Card (Class10)SDSDXPA-016G-J3516GB
SanDiskSanDisk Extreme Pro® SDHC™ UHS-I Memory Card (Class10)SDSDXPA-032G-J3532GB
SanDiskSanDisk Extreme Pro® SDHC™/ SDXC™ UHS-I Memory Card (U3, Class10)SDSDXPA-016G-JU316GB
SanDiskSanDisk Extreme Pro® SDHC™/ SDXC™ UHS-I Memory Card (U3, Class10)SDSDXPA-032G-JU332GB
SanDiskSanDisk Extreme® HD Video SDHC™ Memory Card (Class10)SDSDX3-016G-J21N16GB
SanDiskSanDisk Extreme® HD Video SDHC™ Memory Card (Class10)SDSDX3-4096-J21N4GB
SanDiskSanDisk Extreme® HD Video SDHC™ Memory Card (Class10)SDSDX3-8192-J21N8GB
SanDiskSanDisk Extreme® PLUS SDHC™ UHS-I Memory Card (Class10)SDSDXS-008G-J35P8GB
SanDiskSanDisk Extreme® PLUS SDHC™ UHS-I Memory Card (Class10)SDSDXS-016G-J35P16GB
SanDiskSanDisk Extreme® PLUS SDHC™ UHS-I Memory Card (Class10)SDSDXS-032G-J35P32GB
SanDiskSanDisk Extreme® SDHC™ UHS-I Memory Card (Class10)SDSDXL-016G-J3516GB
SanDiskSanDisk Extreme® SDHC™ UHS-I Memory Card (Class10)SDSDXL-032G-J3532GB
SanDiskSanDisk Extreme® SDHC™/ SDXC™ UHS-I Memory Card (U3, Class10)SDSDXL-016G-JU316GB
SanDiskSanDisk Extreme® SDHC™/ SDXC™ UHS-I Memory Card (U3, Class10)SDSDXL-032G-JU332GB
SanDiskSanDisk Extreme® SDHC™ Memory Card (Class10)SDSDX3-004G-J31A4GB
SanDiskSanDisk Extreme® SDHC™ Memory Card (Class10)SDSDX3-008G-J31A8GB
SanDiskSanDisk Extreme® SDHC™ Memory Card (Class10)SDSDX3-016G-J31A16GB
SanDiskSanDisk Extreme® SDHC™ Memory Card (Class10)SDSDX3-032G-J31A32GB
SanDiskSanDisk Standard SD™/SDHC™ Memory Card (CLASS2)SDSDB-4096-J954GB
SanDiskSanDisk Standard SD™/SDHC™ Memory Card (CLASS2)SDSDB-8192-J958GB
SanDiskSanDisk Standard SD™/SDHC™ Memory Card (CLASS4)SDSDB-008G-J018GB
SanDiskSanDisk Standard SD™/SDHC™ Memory Card (CLASS4)SDSDB-016G-J95A16GB
SanDiskSanDisk Standard SD™/SDHC™ Memory Card (CLASS4)SDSDB-032G-J95A32GB
SanDiskSanDisk Standard SD™/SDHC™ Memory Card (CLASS4)SDSDB-2048-J95B2GB
SanDiskSanDisk Standard SD™/SDHC™ Memory Card (CLASS4)SDSDB-4096-J95A4GB
SanDiskSanDisk Standard SD™/SDHC™ Memory Card (CLASS4)SDSDB-8192-J95A8GB
SanDiskSanDisk Ultra® PLUS SDHC™ UHS-I Memory Card(Class10)SDSDUM-016G-J0116GB
SanDiskSanDisk Ultra® PLUS SDHC™ UHS-I Memory Card(Class10)SDSDUP-008G-J358GB
SanDiskSanDisk Ultra® PLUS SDHC™ UHS-I Memory Card(Class10)SDSDUP-016G-J3516GB
SanDiskSanDisk Ultra® SDHC™ UHS-I Memory Card (Class10)SDSDU-008G-J358GB
SanDiskSanDisk Ultra® SDHC™ UHS-I Memory Card (Class10)SDSDU-016G-J3516GB
SanDiskSanDisk Ultra® SDHC™ UHS-I Memory Card (Class10)SDSDU-032G-J3532GB
SanDiskSanDisk Ultra® SDHC™ UHS-I Memory Card (Class6)SDSDH-004G-J354GB
SanDiskSanDisk Ultra® SD™/SDHC™ Memory Card (CLASS4)SDSDH-002G-J952GB
SanDiskSanDisk Ultra® SD™/SDHC™ Memory Card (CLASS4)SDSDH-004G-J954GB
SanDiskSanDisk Ultra® SD™/SDHC™ Memory Card (CLASS4)SDSDH-008G-J958GB
SanDiskSanDisk Ultra® SD™/SDHC™ Memory Card (CLASS4)SDSDH-016G-J9516GB
SanDiskSanDisk Ultra® SD™/SDHC™ Memory Card (CLASS4)SDSDH-032G-J9532GB
SONYSDHC UHS-I Memory CardSF-8UY28Ｇ
SONYSDXC/SDHC UHS-I Memory card SF-UY3 SeriesSF-16UY3 New16GB
SONYSDXC/SDHC UHS-I Memory card SF-UY3 SeriesSF-32UY3 New32GB
SONYSFUX Series SD Memory CardSF-32UX232GB
TASCAMTSQDTSQD-16880A16GB
TASCAMTSQDTSQD-32A32GB
TOSHIBAEXCERIA PRO™ SDHC/SDXC Memory Card (SD-KU Series)SD-KU016G16ＧB
TOSHIBAEXCERIA PRO™ SDHC/SDXC Memory Card (SD-KU Series)SD-KU032G32GB
TOSHIBAEXCERIA™ SDHC/SDXC Memory Card（SD-FU Series）SD-FU008G8GB
TOSHIBAEXCERIA™ SDHC/SDXC Memory Card（SD-FU Series）SD-FU016G16GB
TOSHIBAEXCERIA™ UHS-I SDHC™Memory Card (U3, Class10)SD-JU016G16GB
TOSHIBAEXCERIA™ UHS-I SDHC™Memory Card (U3, Class10)SD-JU032G32GB
TranscendSDXC/SDHC Class 10 UHS-I 600x (Ultimate)TS16GSDHC10U116GB
TranscendSDXC/SDHC Class 10 UHS-I 600x (Ultimate)TS32GSDHC10U132GB
TranscendSDXC/SDHC Class 10 UHS-I 600x (Ultimate)TS8GSDHC10U18GB
TranscendSDXC/SDHC UHS-I Speed Class 3TS32GSDU3X32GB

Related products
