Midas DDA DM12

Rp6.500.000

SKU: MDAS-DDADM12 Categories: , , ,

Description

Midas

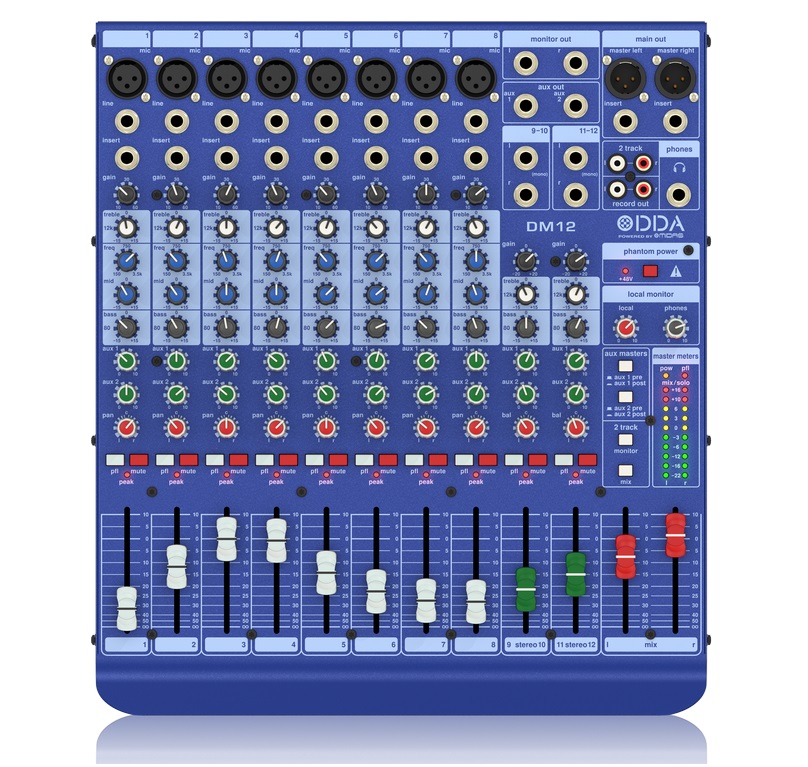

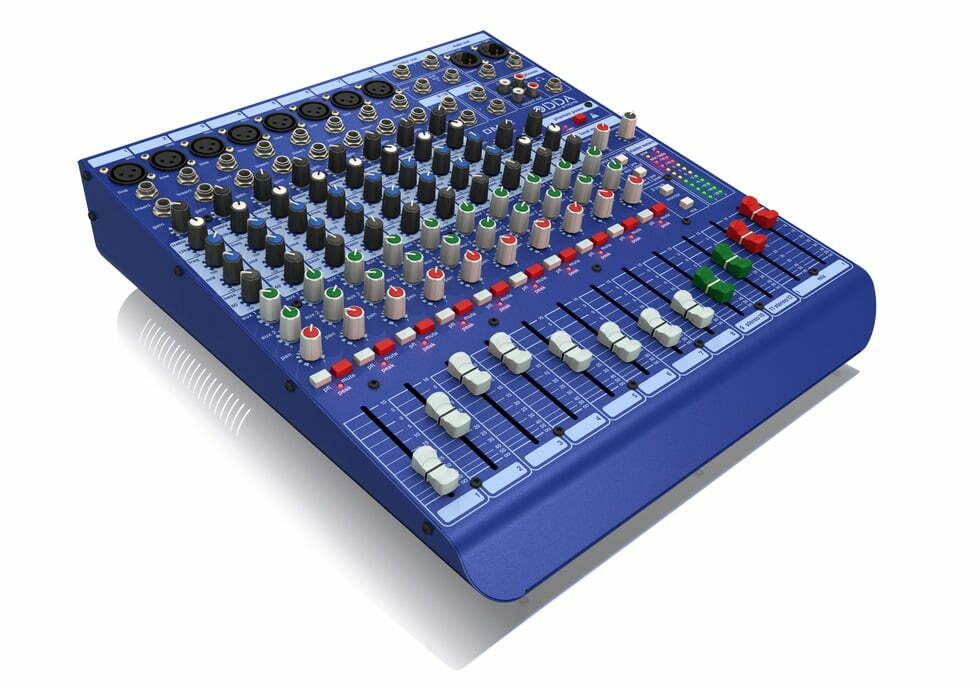

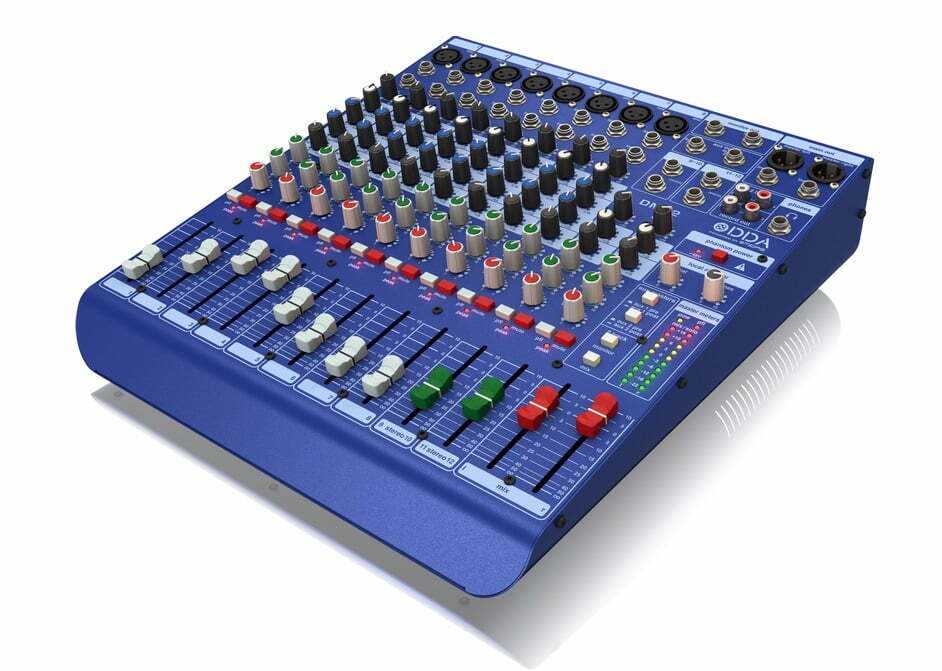

DDA DM12 – 12 Input Analogue Live and Studio Mixer with MIDAS Microphone Preamplifiers

The compact DDA DM12 honours your stage or studio desktop space, while providing incredible sonic performance, amazing versatility – and an unheard of level of affordability.

What is the secret behind DM12’s superb, studio-quality sound? The DM12 features 8 award-winning, MIDAS microphone preamplifiers with true +48 V Phantom Power, acclaimed by audio engineers the world over for their transparency and nuanced low noise, high-headroom design. Add to this TRS Line Inputs on all 12 channels (8 mono and 2 stereo), mono channel Inserts and 3-band EQ with midfrequency sweep, 2 switchable pre/post-fader aux sends, 2 monitor outs and 2-track RCA I/O, and you have an analogue work of art – the Powered by MIDAS DM12!

Live Performance and Studio Recording

With 12 channels, the DM12 has more than enough microphone and line inputs to manage a small band or worship team with channels to spare – both on the stage and in the studio. It is also the ideal choice for use as a keyboard or drum sub-mixer for larger scale performances.

MIDAS – The Legend in Sound Quality

Ever since its formation in the 1970s, MIDAS has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, legendary MIDAS consoles such as the XL4 and Heritage H3000 quickly became industry standards.

MIDAS has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their Award-winning Mic Preamps which are considered by industry experts as the industry’ s best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.

DDA is proud to incorporate MIDAS designed mic preamps for the ultimate in high-quality audio reproduction in both live and studio environments.

Dedicated Stereo Inputs

Line channels 9/10 – 11/12 are dedicated stereo channels, making them ideal for stereo instruments, such as keyboards – and can also be used for mono signals thanks to a convenient balance control on each 2-channel grouping. These channels can also be used as return inputs for signals sent external effects processing equipment.

Sublimely Musical British EQ

The British consoles of the 1960s and ‘70s changed the sound of rock and roll – without them the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The 3-band channel EQ on our DM12 mixers is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. The sweepable mid-frequency band provides a broad tonal palette with which to fine-tune the ideal signal. Even when applied generously, these equalisers exhibit sweet forgiveness and superb audio quality.

Dual Aux Sends

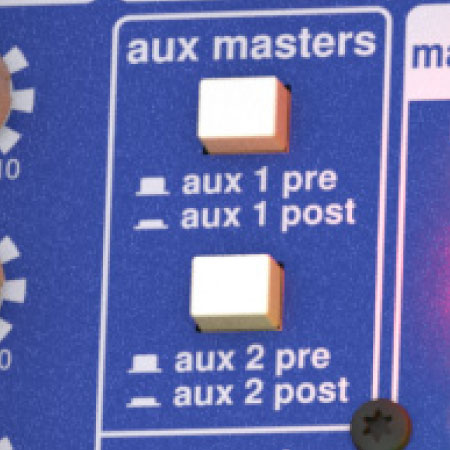

The DM12 is also equipped with 2 aux sends with pre/post fader switching for added versatility. Users can select to use them for external effects processing, custom monitor mixes, or a combination of the two. Additional monitoring outputs are provided of the main mix for stage or studio monitor applications.

Classic Precision

All of DM12 mixer’s 60 mm faders have been carefully designed to provide a long life of highly precise level setting, ensuring repeatable and flawless performance for many years to come.

Features

  • Live performance and studio recording analogue mixer with 12 input channels
  • 8 mono input channels with award-winning MIDAS microphone preamplifiers
  • 2 electronically-balanced stereo line input channels on 1/4″ TRS connectors
  • 3 band EQ on mono channels with sweepable mid band
  • 2 aux sends with pre/post fader switching
  • 60 mm precision long-life faders
  • Rugged chassis construction for durability in portable applications
  • Auto-ranging universal switch-mode power supply
  • 3-Year Warranty Program*
  • Designed and engineered in England

Specifications

Mono Inputs

Mic inputs (MIDAS mic preamp)8
TypeXLR, balanced
Mic EIN @ 60 dB gain, 50 ? source at insert send-131 dBu, unweighted, 20 Hz to 20 kHz
Mic EIN @ 60 dB gain, 150 ? source at insert send-128 dBu, unweighted, 20 Hz to 20 kHz
Noise @ 10dB Gain, at insert send-97 dBu, unweighted, 20 Hz to 20 kHz
Frequency response (-1 dB) at main output20 Hz to 20 kHz (-1 dB)
Frequency response (-3 dB) at main output70 kHz (-3 dB)
Mic Gain range+10 dB to +60 dB
Max. input level+11 dBu @ +10 dB gain
CMRR @ +60dB gainTypically -90 dB
Impedance2 kΩ, balanced
Distortion (THD+N) at 0 dBu0.005% @ 1kHz
Phantom powerSwitchable, +48 V



Line Input

Type¼” TRS, balanced
Impedance20 kΩ balanced / unbalanced
Line Gain range-10 dB to +40 dB
Max. input level+30 dBu



Stereo Inputs

Type4 x ¼” TRS connector, balanced
Impedance20 kΩ balanced / unbalanced
Gain range-20 dB to +20 dB
Max. input level+21 dBu



Equaliser

Low±15 dB @ 80 Hz, shelving
Mid (mono inputs only)±15 dB @ 150 Hz to 3.5 kHz, variable semi-parametric
High±15 dB @ 12 kHz, shelving



Channel Inserts

Type¼” TRS connector, unbalanced
Max. input / output level+21 dBu



Aux Sends

Type2 x ¼” TRS connector, balanced
Impedance240 Ω balanced, 120 Ω unbalanced
Max. output level+21 dBu

Monitor Out

Type2 x ¼” TRS connector, balanced
Impedance240 Ω balanced, 120 Ω unbalanced
Max. output level+21 dBu



Main Out

Type2 x XLR, electronically balanced
Impedance100 Ω balanced, 50 Ω unbalanced
Max. output level+21 dBu

Main Out Inserts

Type2 x ¼” TRS connector, unbalanced
Max. input / output level+21 dBu



Phones Output

Type¼” TRS connector, unbalanced
Impedance25 Ω
Max. output level+21 dBu



2-Track Input

Type2 x RCA, unbalanced
Impedance20 kΩ
Max. input level+21 dBu



Record Out

Type2 x RCA, unbalanced
Impedance1 kΩ
Max. output level+21 dBu



Main Mix System Noise

Main mix @ -?, channel fader @ -?-104 dBu, unweighted, 20 Hz to 20 kHz
Main mix @ 0 dB, channel fader @ -?-91 dBu, unweighted, 20 Hz to 20 kHz
Main mix @ 0 dB, channel fader @ 0 dB-84 dBu, unweighted, 20 Hz to 20 kHz

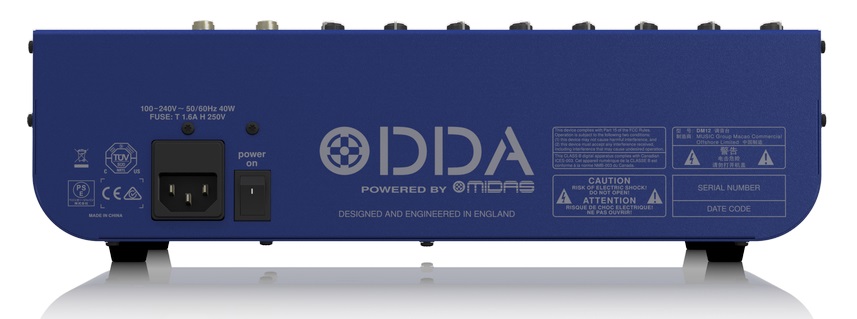

Power Supply / Voltage (Fuses)

Switch mode power supply100-240 V~ 50/60 Hz, switchable (T 1.6 A H 250 V)
Power consumption40 W
Mains connectionStandard IEC receptacle



Dimensions / Weight

Dimensions (H x W x D)95 x 328 x 370 mm (3.7 x 12.9 x 14.6″)
Weight3.9 kg (1.8 lbs)
