Each member of the award-winning Electro-Voice portable loudspeaker family is designed and engineered in the USA to deliver best-in-class performance across every detail. The components inside EV loudspeakers are manufactured and tested to the industry’s highest standards, to ensure years of superior sound quality and reliability. EV stands apart from other portable speaker manufacturers because we also build bigger systems for concert sound – a pro audio heavyweight with a proven track record on the world stage. Everything we’ve learned at this most competitive and critical level of the industry is condensed into our compact systems to bring you equally uncompromising performance at a smaller scale. No other equivalently priced speaker will sound as good, work as hard, or last as long.
Whatever the application, there’s an EV speaker with a set of features to precisely fit your needs and your budget: from the unbeatable value and power-to-weight ratio offered by ZLX up to the benchmark performance and advanced technology of our top-of-the-line ETX and EVOLVE column loudspeakers.

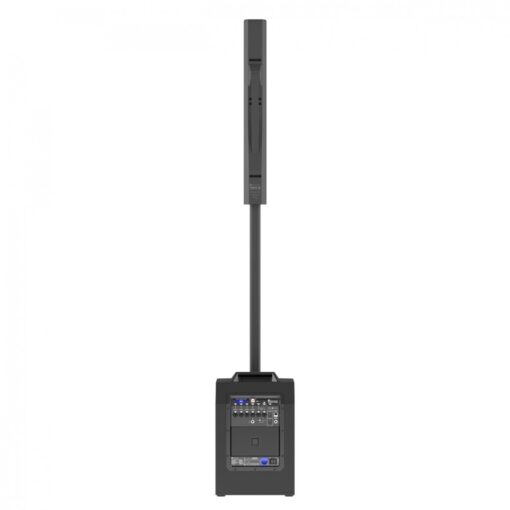

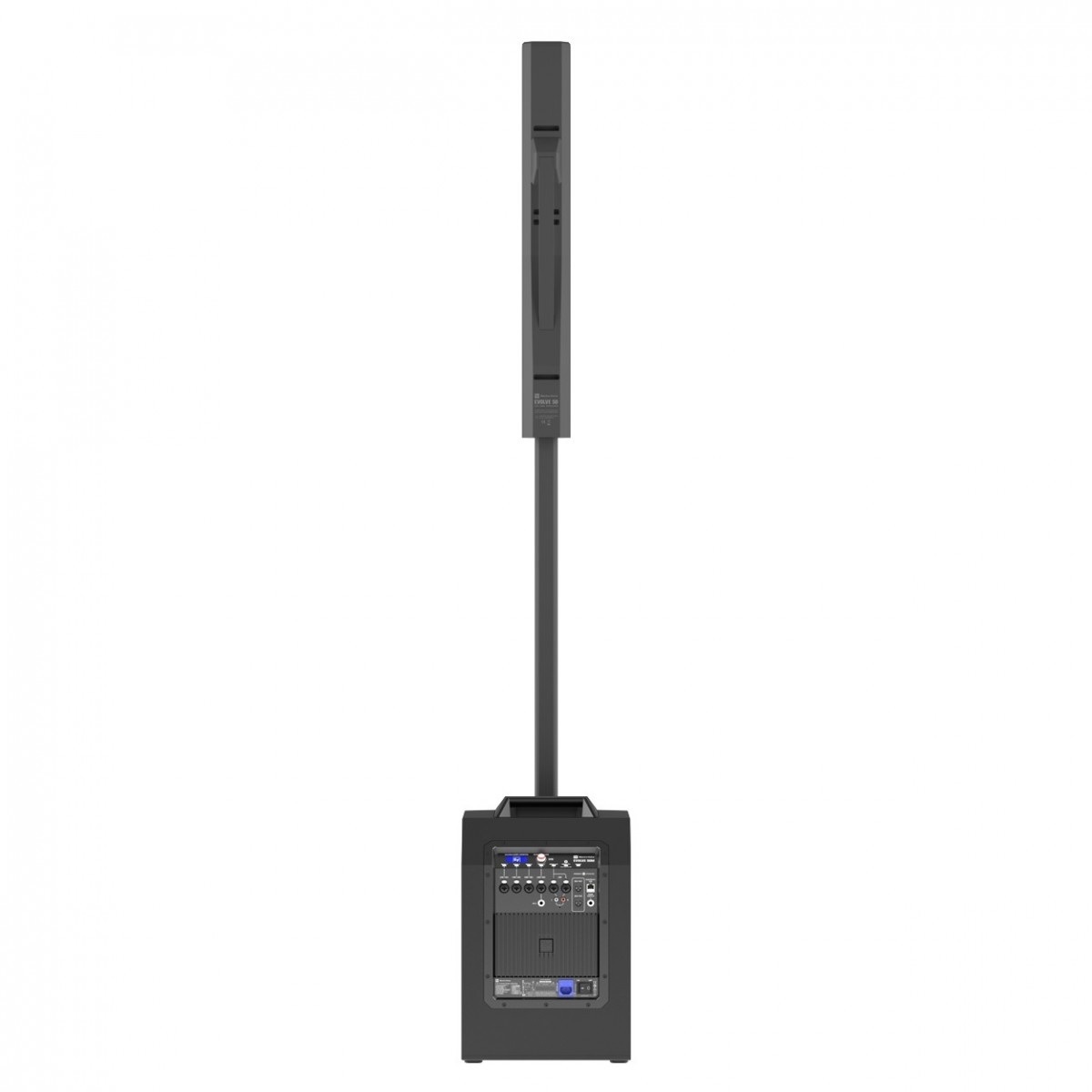

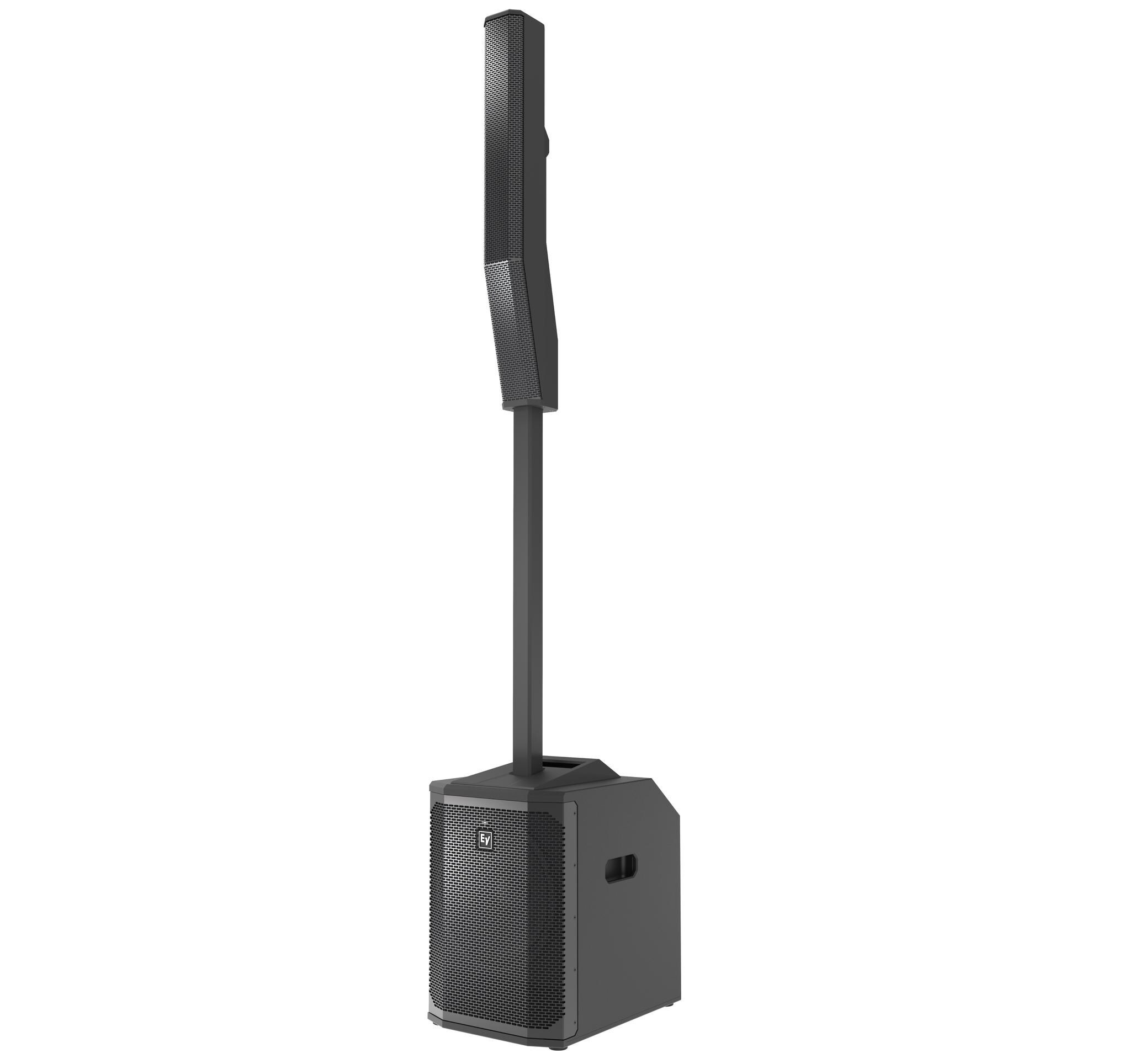

EVOLVE 30M
Portable powered column system
Superior Electro-Voice sound quality coupled with the most complete feature set in its class – the perfect combination of performance and flexible functionality, in a very compact package
The EVOLVE 30M is designed to deliver a significant step up in all-around performance for a column system in its size/price category. It includes an eight-channel digital mixer, studio-quality onboard effects, and remote control of all audio, effects and mix functions via the next-generation Electro-Voice QuickSmart Mobile application (available via the Apple Store and on Google Play).
The system includes a speaker array, a two-piece pole connector, an array and pole backpack carry case, and a powered subwoofer – all made to pack up and assemble quickly, look great on stage, and withstand real-world wear and tear.
All this makes it an outstanding choice for solo musicians/performers and smaller musical groups and venues – or any application that needs an easy-to-use, highly portable and lightweight system with extraordinary connectivity, control, coverage and output relative to its footprint.
For events such as weddings, the mixer allows the same system to support the various mics and inputs required for participants, musicians, and background music during the day, all with plenty of power to fill the dance floor for a DJ set or live performance in the evening.
Refined industrial design, professional-grade EV-engineered components and premium build quality – super-quick setup and single-trip portability in a system that looks as good as it sounds
All set the EVOLVE 30M apart from other systems at its price point. The full-range column array and its six lightweight 2.8” neodymium drivers provide ultra-wide 120° coverage via proprietary waveguides; array-formed 40° asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members. The array enclosure is constructed from a durable composite material and incorporates an ergonomic aluminum handle. It is acoustically optimized using four tuning ports hidden out of sight on the rear of the enclosure.

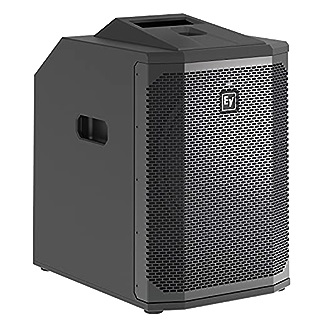

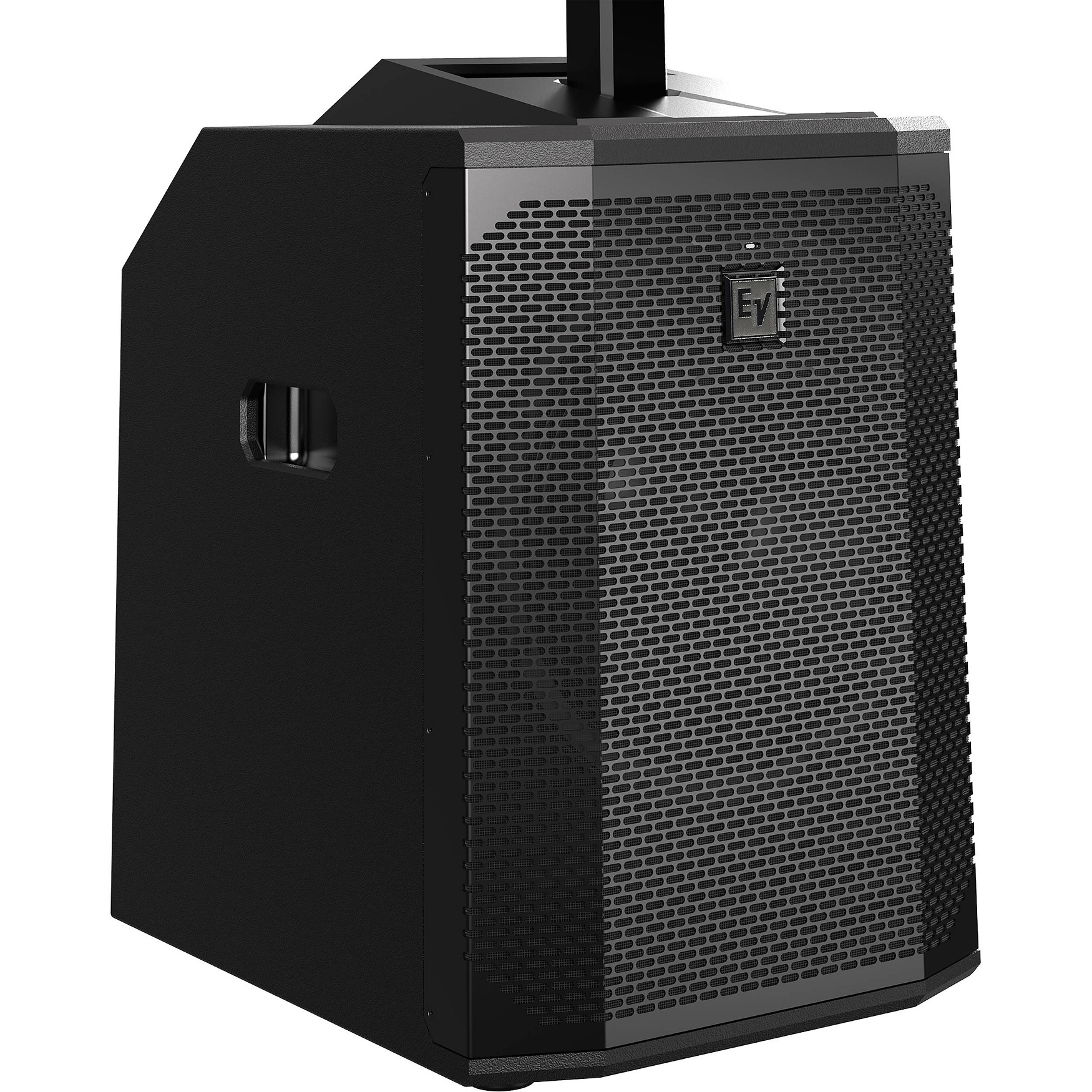

A 10” subwoofer is housed in a 15 mm wood enclosure with a high-efficiency laminar-flow vent design, for enhanced rigidity and acoustical performance. The array and sub are connected via a two-piece symmetrical aluminum pole with internal wiring and magnetically assisted latching. An advanced Class-D amplifier provides up to 1000 W of power: 500 W to the subwoofer and 500 W to the column array. The speakers are protected by a black powder-coated 18-gauge steel grille. Combined, these elements generate a genuinely impressive performance-to-size ratio in an elegant form factor that looks as good as it sounds.
Industry-leading QuickSmart DSP – optimize every detail of your sound via the control panel or via the app from across the room

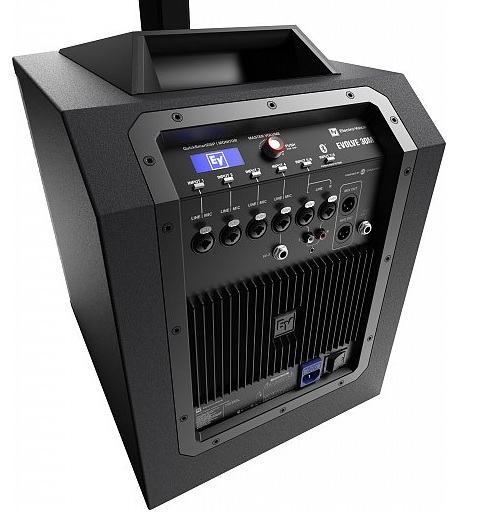

QuickSmart DSP allows navigation of system parameters via an LCD with single-knob control, as well as multiple options for signal routing and inputs. Functions include four presets (Music, Live, Speech, Club), three-band system EQ (low, mid, high), seven-band graphic EQ (in Mixer mode), five user-programmable presets (Store and Recall settings), phantom power, visual monitoring of limiter status, input level control and meters, and a master volume control to optimize gain structure.
All of the above audio functions can also be controlled via the QuickSmart Mobile app – precisely adjust your system’s sound from across the room, hearing what the audience hears. The fully configurable app has an intuitive, easy-to-read user interface and utilizes Bluetooth* Low Energy (BTLE) technology for the adjustment and monitoring of all parameters of up to six EVOLVE 30M systems simultaneously. EVOLVE 30M offers simple or sophisticated operation according to application, making great sound easy for users of all levels.
Mix your show like a pro – powerful onboard mixer gives you best-in-class connectivity and control
Developed in collaboration with the world-class audio electronics engineering team at EV’s sibling brand Dynacord, the integrated fully featured, fully configurable digital mixer has multiple inputs (4x XLR/TRS combo mic/line inputs, 1x XLR/TRS combo stereo line input, 1x RCA, 1x 3.5 mm stereo, 1x Hi-Z instrument input) with professional-grade preamps and mix functions. The mixer can be controlled via the QuickSmart Mobile app or via the single-knob/LCD interface.
Finesse your sound with musician-friendly features – and reduce the amount of gear you bring to the gig
Independent channel aux sends and Hi-Z and foot switch inputs are included for flexible system configuration, and a range of onboard studio-quality effects (30 presets, including chorus, delay, flange and reverb, via two FX channels) add myriad options for fine-tuning. Along with the built-in mixer, these help to reduce setup time — and on-stage clutter — by minimizing the need for external effects pedals and processors. The onboard effects can be controlled via the QuickSmart Mobile app or via the single-knob/LCD interface. High-resolution, low-latency Bluetooth* streaming ensures excellent results for music playback or accompaniment.
*Bluetooth is available in select countries.
The EVOLVE 30M joins the larger EVOLVE 50 in the award-winning Electro-Voice EVOLVE column speaker system series.
Specifications
Frequency response (-3 dB)1
51 Hz to 20 KHz
Frequency range (-10 dB)1
45 Hz to 20 KHz
Maximum SPL2
123 dB
More Specifications
Coverage (H x V)
120° x 40°
Amplifier rating
1000 W
LF channel rating
500 W
HF channel rating
500 W
Crossover frequency
200 Hz
Connectors
4x XLR/TRS Combo Jack Line / Mic Input
1x 1/4″ TRS HI-Z input
2x XLR/TRS Combo Jack for Stereo Line Input
1x Stereo RCA Input
1x 3.5 mm Stereo Input
1x Wireless Stereo Bluetooth® Audio Input
1x 1/4″ Foot Switch Input
1x XLR MIX OUT Output
1x XLR AUX OUT Output
Enclosure
Sub: 15 mm plywood
Column: Composite
Pole: Aluminum
Grille: Steel with black or white powder coat
Color:
Black or white
Dimensions (HxWxD): mm (in)
Sub: 448 x 332 x 432 (17.6 x 13.1 x 17)
Column: 620 x 95 x 157 (24.4 x 3.7 x 6.2)
Pole (2 pcs): 600 x 48 x 55 (23.6 x 1.9 x 2.2)
Net weight
Sub: 34.9 lb (15.8 kg)
Column: 6.0 lb (2.7 kg)
Pole (2 pcs): 3.1 lb (1.4 kg)
Bag for column and pole: 1.9 (0.85 kg)
Shipping weight
53.4 lb (24.2 kg)
Power consumption3
100-240 V AC, 50-60 Hz, 1.5-0.6 A

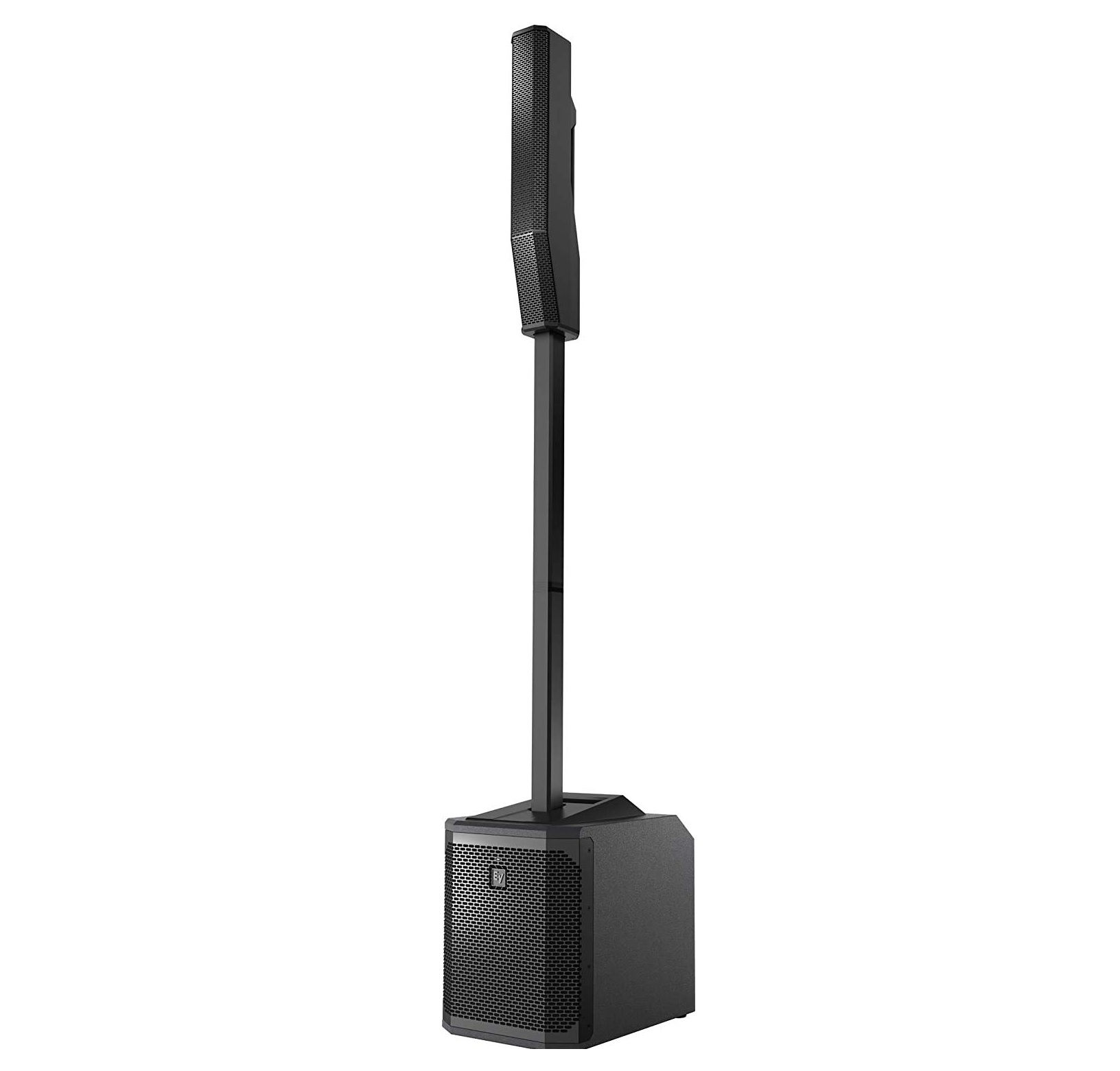

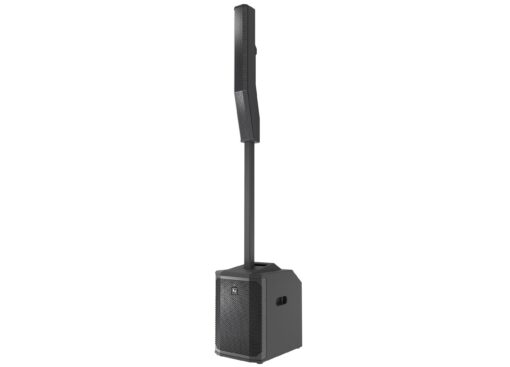

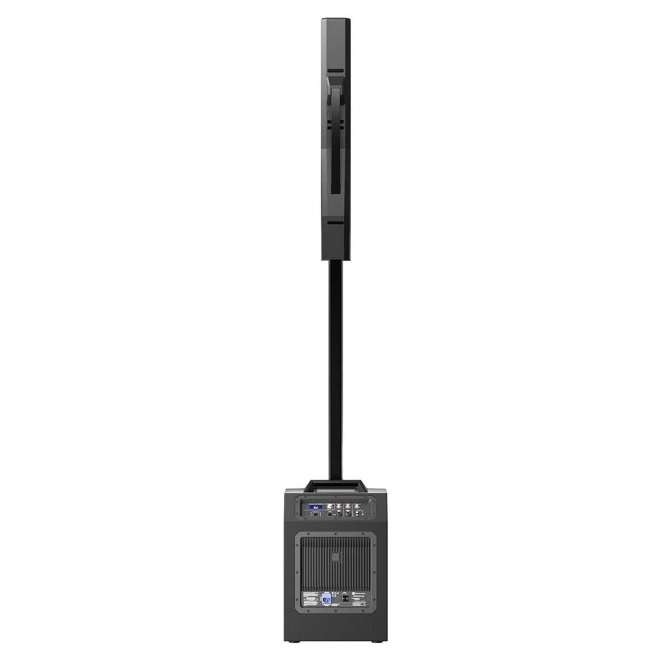

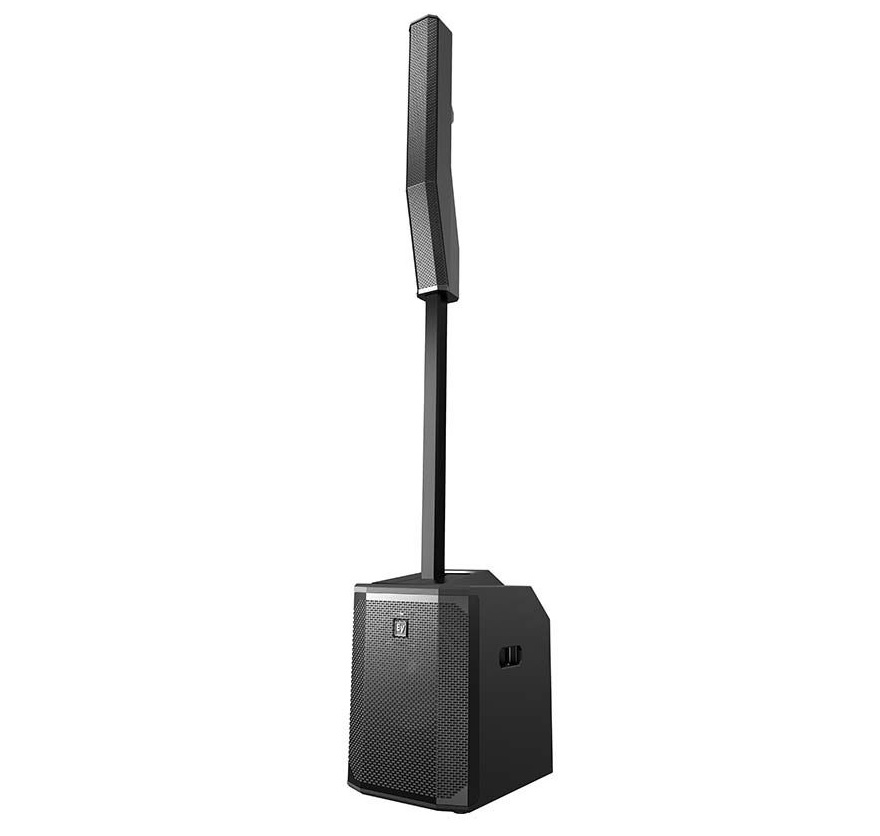

EVOLVE 50
Portable column system
The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice’s QuickSmartDSP.
The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.
The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

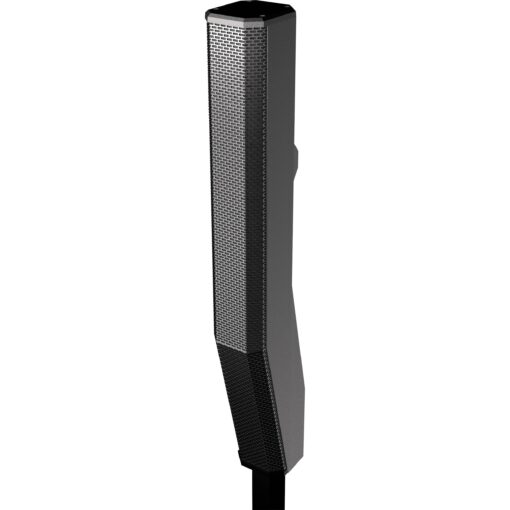

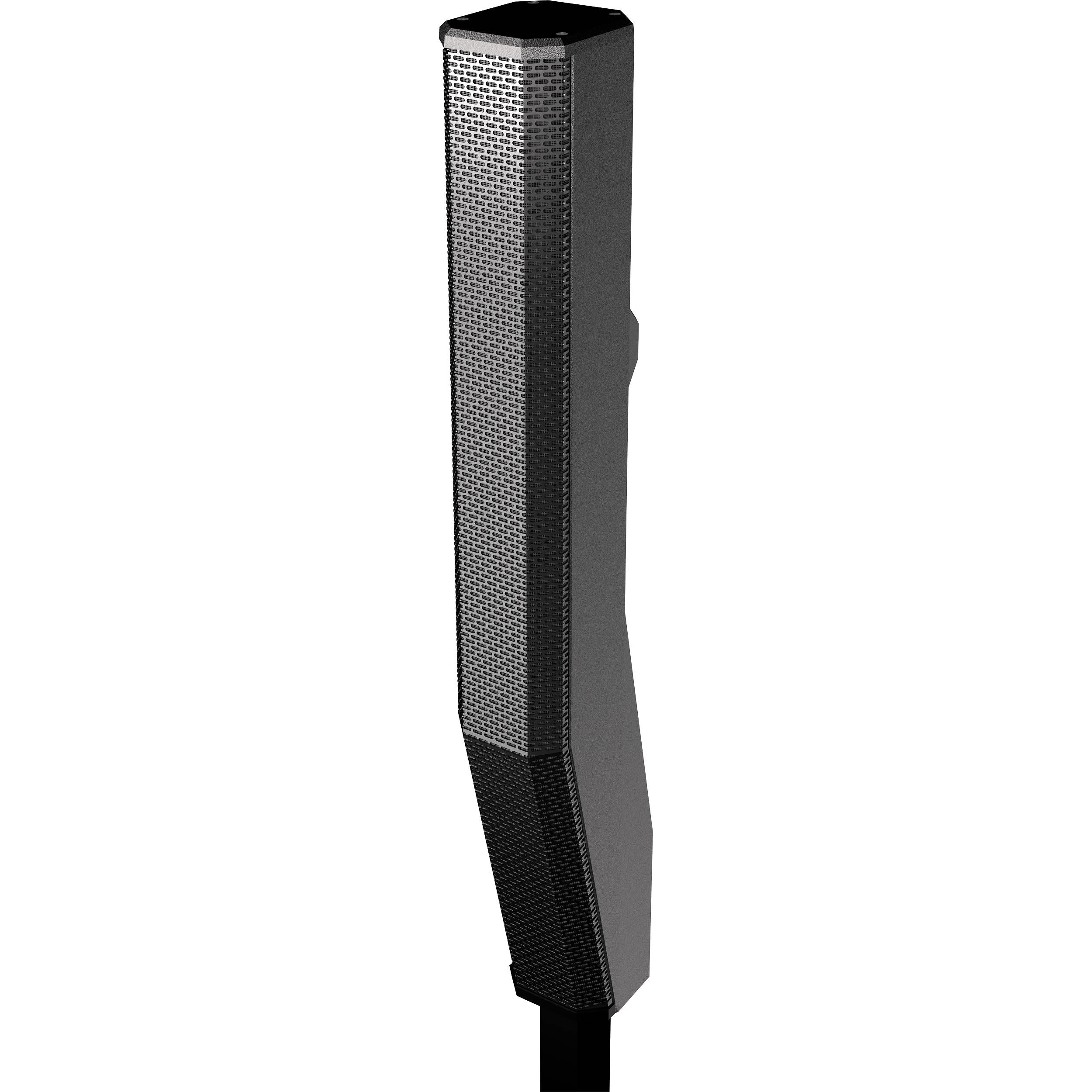

Eight 3.5″ neodymium drivers in the column array coupled with the 12″ subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.
The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.
Bluetooth is available in select countries.
Specifications
Frequency response (-3 dB)1
43 Hz-20 KHz
Frequency range (-10 dB)1
37 Hz-20 KHz
Maximum SPL2
127 dB
More Specifications
Coverage (H x V)
120° x 40°
Amplifier rating
1000 W
LF channel rating
500 W
HF channel rating
500 W
Crossover frequency
200 Hz

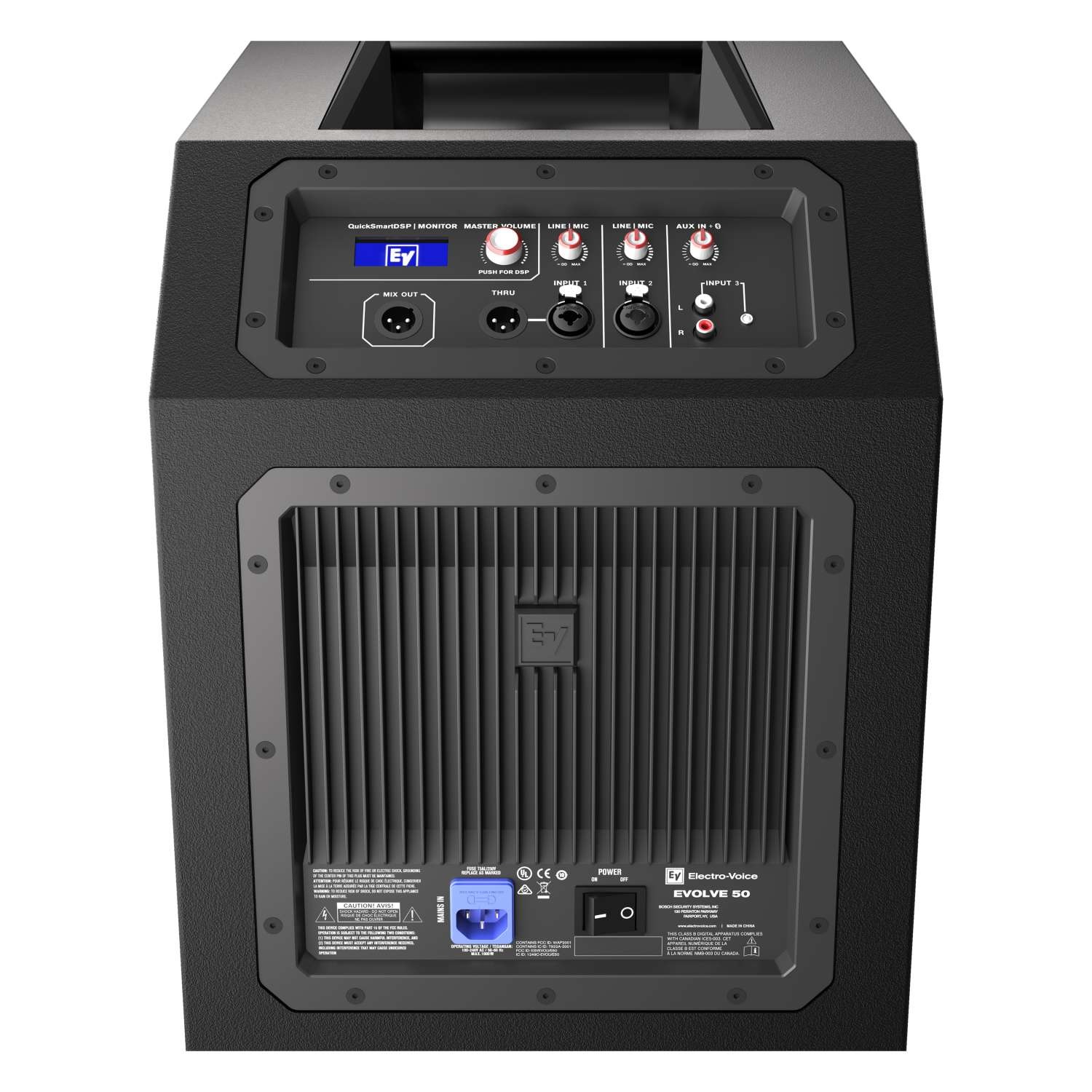

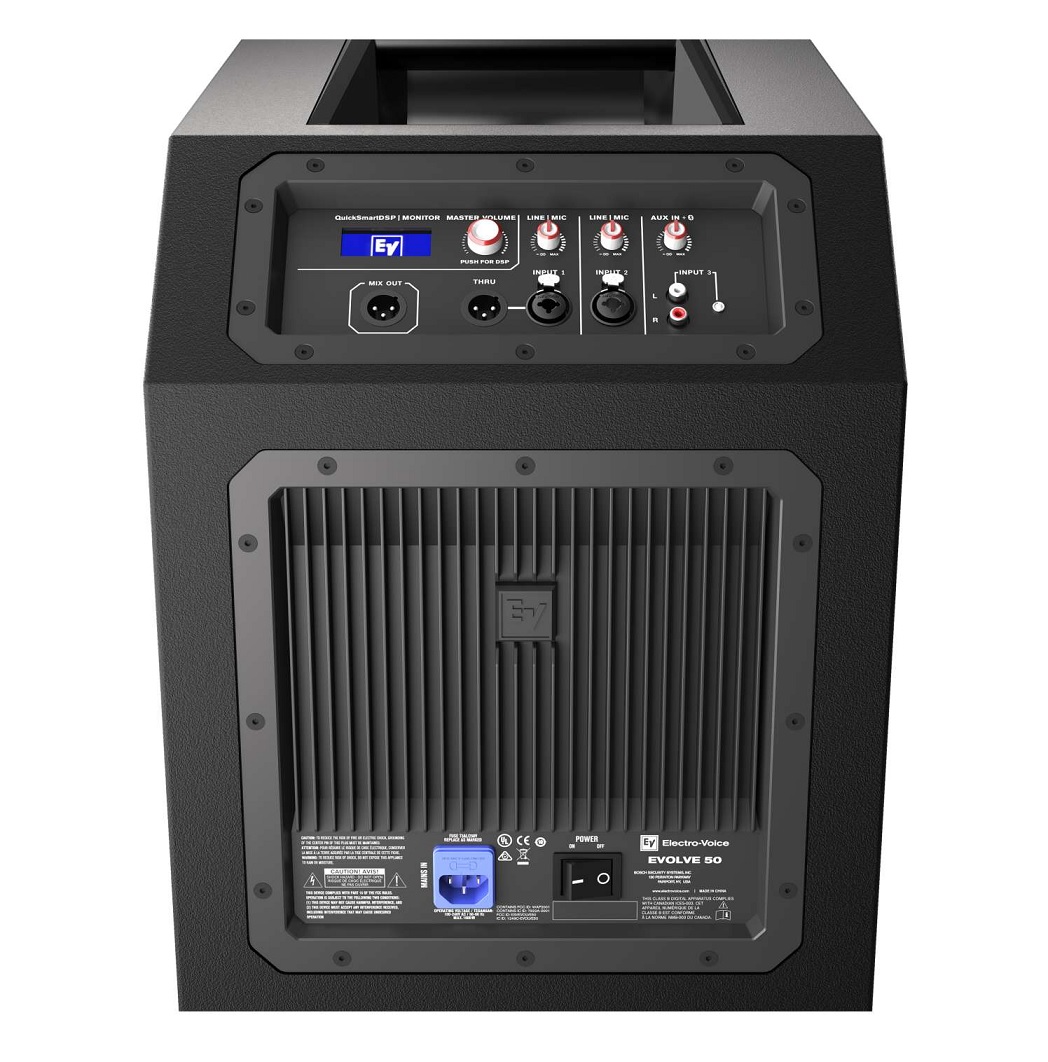

Connectors
2x XLR/TRS Combo Jack Input
1x 3.5 mm Input
1x Stereo RCA Input
1x Wireless Bluetooth® Audio Input
1x XLR THRU Output
1x XLR MIX OUT Output
Enclosure
Sub: 15 mm plywood
Column: Composite
Pole: Aluminum
Grille
Steel with black or white powder coat
Color
Black or white
Dimensions (HxWxD): mm (in)
Sub: 530 x 345 x 471 (20.9 x 13.6 x 18.5)
Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)
Pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)
Net weight
Sub: 44.66 lb (20.3 kg)
Column: 10.34 lb (4.7 kg)
Pole: 2.75 lb (1.25 kg)
Sub cover: 0.9 lb (0.4 kg)
Bag for column and pole: 1.87 (0.85 kg)
Shipping weight
Sub box: 50.71 lb (23 kg)
Column box: 18.30 lb (8.3 kg)
Power consumption3
100-240 V AC, 50-60 Hz, 1.5-0.6 A
EVOLVE 50M
Portable column system
Electro-Voice is expanding its industry-leading EVOLVE series with the launch of the EVOLVE 50M column loudspeaker system. The EVOLVE 50M features ElectroVoice’s new QuickSmart Link digital audio and control technology, an onboard mixer, DSP and effects – all combined within the sleek EVOLVE 50 format. The EVOLVE 50M is the perfect choice for bands/musicians, AV rental companies, DJs and any application where true professional audio performance is required in a super-compact and portable package.
Available in black or white finishes, the EVOLVE 50M combines state-of-the-art industrial design, superior Electro-Voice-engineered components and premium materials to deliver best-in-class sound quality, power and reliability. The full-range column array and its eight lightweight 3.5” neodymium drivers provide ultra-wide, full-bandwidth 120° coverage via proprietary waveguides; array-formed 40° asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members. The array enclosure is constructed from a durable composite material and incorporates an ergonomic aluminum handle. A 12” subwoofer is housed in a 15 mm wood enclosure with a high-efficiency laminar-flow vent design, for enhanced rigidity and acoustical performance. The array and sub are connected via a symmetrical aluminum pole with internal wiring and magnetically assisted latching. The speakers are protected by a black powder-coated 18-gauge steel grille, and an array/pole carry case is included. An advanced Class-D amplifier provides up to 1000 W of power.
Equipped with the most comprehensive and user friendly feature set of any column system on the market today, the EVOLVE 50M’s “M” designation refers to its integrated fully featured, fully configurable eight channel digital mixer. Developed in collaboration with the world-class audio electronics engineering team at Electro-Voice’s sibling brand Dynacord, the mixer has multiple inputs (4x XLR/TRS combo mic/line inputs, 1x XLR/TRS combo stereo line input, 1x RCA, 1x 3.5 mm stereo, 1x Hi-Z instrument input) with professional grade preamps and mix functions. High-resolution, low latency Bluetooth® streaming ensures excellent results for music playback or accompaniment. Independent channel aux sends and a foot switch input are also included, and a range of effects (30 presets, including chorus, delay, flange and reverb, via two FX channels) add a myriad of options for musicians to fine-tune their tone. All of the above help to reduce load-in/out and setup/teardown time – and on-stage clutter – by minimizing the need for external equipment such as a mixer and effects pedals.
New from Electro-Voice, QuickSmart Link makes it easy to combine two EVOLVE 50Ms for use together with larger bands or gigs needing more inputs. Simply link the systems together via an Ethernet cable to create an uncompressed digital audio/control connection, pair both systems to a single mobile device via the QuickSmart Mobile app (available via the Apple App Store and on Google Play), and get full mix control of both systems. For applications requiring fewer inputs, but still requiring a mixer and stereo output, the EVOLVE 50M can be matched with an EVOLVE 50 via the MIX OUT XLR connector.
The EVOLVE 50M’s control panel features ElectroVoice’s powerful QuickSmart DSP, which allows the navigation and adjustment of all audio, effects and mix functions via an LCD with single-knob control or via the QuickSmart Mobile app, as well as multiple options for signal routing and inputs. Functions include four presets (Music, Live, Speech, Club), three-band system EQ (low, mid, high), seven-band graphic EQ (in Mixer mode), five user-programmable presets (Store and Recall settings), phantom power, visual monitoring of limiter status, input level control and meters, and a master volume control to optimize gain structure.
Specifications
Column array
8x 3.5” neodymium drivers
Subwoofer
1x 12”
Frequency response (-3 dB)
43 Hz – 20 KHz
Frequency range (-10 dB)
37 Hz – 20 KHz
Specifications
Maximum SPL
127 dB
Coverage (H x V)
120° x 40°
Amplifier rating
1000 W
LF channel rating
500 W
HF channel rating
500 W
Crossover frequency
200 Hz
Connectors
4x XLR/TRS combo jack line/mic input
2x XLR/TRS combo jack for stereo line input
1x 1/4” TRS Hi-Z input
1x stereo RCA input
1x 3.5 mm stereo input
1x wireless stereo Bluetooth® audio input
1x 1/4” foot switch input
1x XLR mix out output
1x XLR aux out output
1x RJ45 QuickSmart Link connector
Enclosure
Column: composite
Pole: aluminum
Sub: 15 mm plywood
Grille
Steel with black or white powder coat
Colors
Black or white
Dimensions (HxWxD): in (mm)
Column: 32.5 x 4.0 x 6.9 (825 x 102 x 172)
Pole: 36.6 x 1.9 x 2.2 (929 x 48.5 x 55)
Sub: 20.9 x 13.6 x 18.5 (530 x 345 x 471)
Assembled: 80.5 x 13.6 x 18.5 (2045 x 345 x 471)
