Bose L1 Model II
Bose L1 Model II - Image 2
Bose L1 Model II - Image 3
Bose L1 Model II - Image 4
Bose L1 Model II - Image 5
Bose L1 Model II - Image 6

Bose L1 Model II

CALL

Options Clear
Add to wishlist
SKU: N/A Categories: , , , Tags: , , , ,

Description

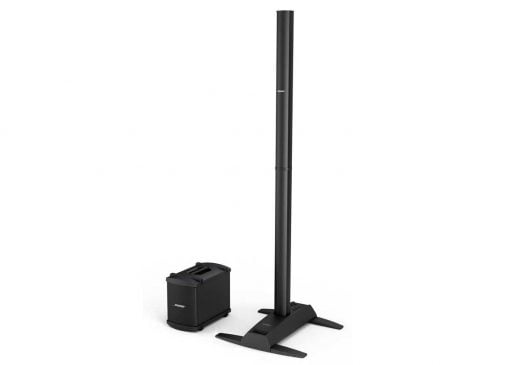

L1® Model II portable line array.

  • Recommended for most instruments and vocalists
  • Spatial Dispersion™ and Articulated Array® speaker technologies
  • Single-input power stand with retractable legs
  • Four-channel ToneMatch® audio engine with studio-class effects
  • One B1 bass module included

L1 Model 2 Single Bass TonematchThe premier Bose® L1 loudspeaker system for musicians―with our smoothest, most consistent sound coverage and most powerful tone-shaping tools. Lightweight and modular, this sleek system fits easily into a car trunk and takes just a few minutes to set up.

Our premium sound system for musicians combines the L1 Model II system and T1 ToneMatch audio engine. This professional sound system provides wide coverage, smooth tonal balance and a suite of studio-class effects and tone-shaping tools. And it’s packed with proprietary Bose technologies designed to improve your amplified sound.



Sound advantages—only from Bose

The system’s breakthrough loudspeaker produces wide, uniform sound coverage of nearly 180 degrees—onstage and throughout an audience of up to several hundred—with little dropoff in volume and tone.

The Model II system also features Articulated Array speaker technology for better tonal balance. The loudspeaker’s 24 vertically mounted drivers are precisely angled to create clearer highs and more consistent tone in the room. Even people off to the sides of these stage speakers enjoy well-balanced, detailed sound.



Powerful multichannel audio engine

Combining the T1 ToneMatch audio engine with your L1 concert speakers gives you exceptional amplified tone and sound processing capabilities. The compact, four-channel engine provides fingertip control of our largest library of ToneMatch presets. Just touch a button to make hundreds of precise refinements to the sound of instruments and microphones.

The engine also features a complete suite of studio-class reverbs, additional effects and dynamics processing. It connects to the L1 Model II system via a single digital cable for quick, streamlined setup.



Deep bass from small enclosures

Bose L1 Model II systems come with one B1 bass module to ensure more accurate amplification of lower notes for most voices and instruments—including guitars, keyboards and various horns. The double bass package is recommended for use as a bass guitar amplifier, and for kick drums and DJs.

B1 bass modules are considerably lighter and smaller than conventional bass bins required for the same performance. Power up to two bass modules on a single power stand. Add two more bass modules to the system with an optional PackLite® extended bass package.



Light and easy

The L1 Model II power stand weighs only 24 pounds, and its four retractable legs make it very easy to transport and set up. The power stand also has a simplified control section; the single line-level input can be used with instruments, mics, mixers, laptops, MP3 players or DVD systems.

All of the system’s components are also built to handle the road. The loudspeaker has a rugged, reinforced grille, and each package includes padded carrying bags for major components.



Features

L1 Model 2 Double Bass T1Spatial Dispersion™ and Articulated Array speaker technologies in the loudspeaker produce wide, uniform sound coverage. The 24 small drivers are arranged using Articulated Array speaker technology in a slim, vertical enclosure—creating nearly 180 degrees of horizontal coverage and consistent tonal balance. The loudspeaker’s two-piece, interlocking design makes for quick and easy setup, breakdown and transport.

Integrated power amplifiers in the power stand provide clean, precise amplification for L1 Model II system with up to two B1 bass modules.

ToneMatch® port on power stand for digital audio and power connection to ToneMatch audio engine.

Analog input, trim control and signal/clip LED for line-level analog input via ¼” TRS phone cable. Can be used for instruments or other audio sources like DJ mixers, MP3 players, computers or DVD systems.

Bass module out for amplified bass output signal to one or two B1 bass modules. L1 system automatically adjusts equalization appropriately when bass modules are connected.

Bass line out delivers post-DSP bass signal output. Accepts ¼” TRS phone cable. Use to connect powered subwoofer, additional amplification system or Bose® PackLite® amplifier with up to two additional bass modules.

Retractable legs provide stability for streamlined L1 Model II power stand and loudspeaker. Four retractable legs fold out of power stand simultaneously for quick setup and compact transport.

B1 Bass Module

The B1 bass module is a portable, lightweight bass module designed to provide deep, balanced bass for Model 1S and Model II systems. It features two 5.25″ high-excursion drivers built into a rugged enclosure. Interlocking end caps allow up to four B1 modules to be stacked together. The module includes a slip cover and NL4 cable.

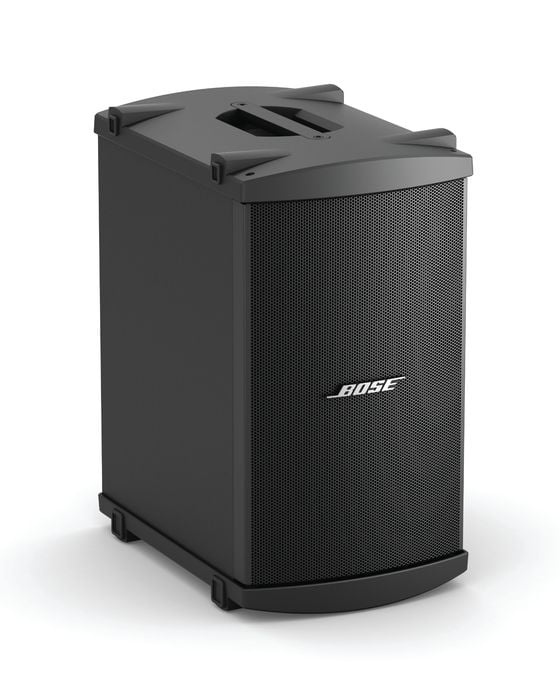

B2 bass module

The B2 bass module is our high-performance flexible bass module designed to provide deep, impactful bass for higher SPL live music and DJ applications. It features two 10″ high-excursion woofers mounted in a rugged enclosure. The B2 bass module includes a three-position sensing switch, allowing bass output to be adjusted for different applications. Interlocking end caps allow up to two B2 modules to be stacked together. The module also includes a slip cover and NL4 cable.

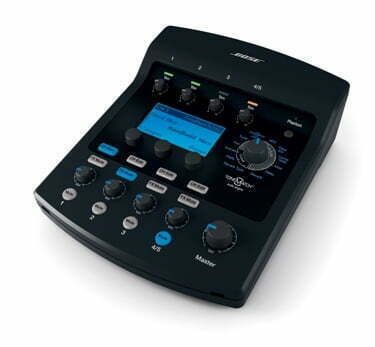

T1 Tonematch

The T1 is a powerful multichannel audio device designed for musicians to use with the Model 1S system. It includes our largest library of ToneMatch presets, proprietary zEQ, a complete suite of studio-class effects and processing, and five channel inputs.



Model 1S vs Model II Power Stand



FAQs

  1. Is this L1 system really a “plug and play” solution? How long does it take to set up?All L1 systems feature easy-to-assemble components that take just a few minutes to set up. Each component is relatively lightweight and can be carried by one person with no need for special equipment.
  2. Does every musician need his or her own L1 system?No. In some cases—for example, amplifying a larger group on a small stage—testing showed two or more musicians standing or sitting next to each other could share one L1 unit without significantly reducing the core benefits of the system.
  3. In what types of venues can I use this L1 system?L1 systems work well in small-to-medium size venues where the majority of live music and spoken-word performances take place—including clubs, coffeehouses, auditoriums, gymnasiums and houses of worship.
  4. Can the system be used as a traditional PA?Yes. You can use this L1 system to replace conventional PA mixers and speakers.
  5. For what types of instruments and voices is this system recommended?The L1 Model II single bass package with ToneMatch audio engine is recommended for most vocalists, public speakers and midrange instruments, like guitars, keyboards and horns. The ToneMatch audio engine enables setups requiring up to four individual inputs.
  6. What are the benefits of including the T1 ToneMatch audio engine with this system?Adding the ToneMatch audio engine immediately expands the system’s input capacity from one channel to four channels. The compact engine also features our largest library of ToneMatch presets and a complete suite of studio-class reverbs, effects and dynamics processing—for exceptional amplified tone.
  7. Can I add more bass modules?Yes. The system has enough built-in power to handle another bass module that you can add later. You can further expand the system (for a total of up to four bass modules) with our optional PackLite® extended bass package.
