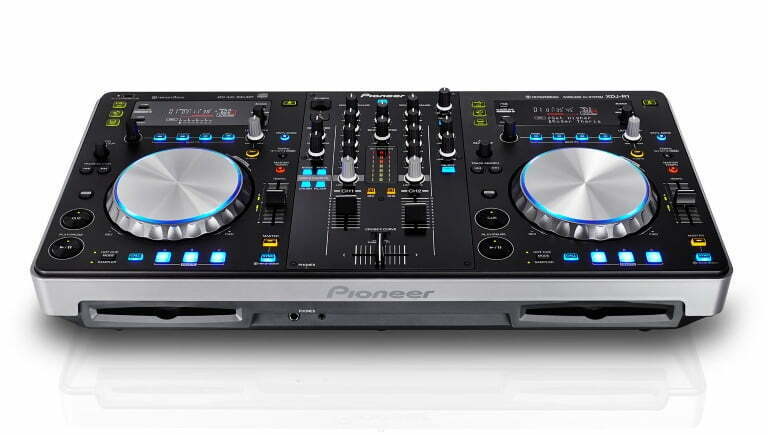

Pioneer XDJ-R1

Rp21.400.000

SKU: PIO-XDJR1 Categories: , , ,

Description



The XDJ-R1, the industrys first1 DJ System to feature wireless control functionality through an iPad, iPhone, or iPod touch via Pioneer’s specially designed remotebox app2. The versatile system features Wireless Direct, to enable wireless connectivity with an iOS device even when a WiFi network is not available. The XDJ-R1 also features Auto Beat Loop, Beat Sync, USB device connectivity, built-in CD players and MIDI control.



XDJ-R1 Mobility

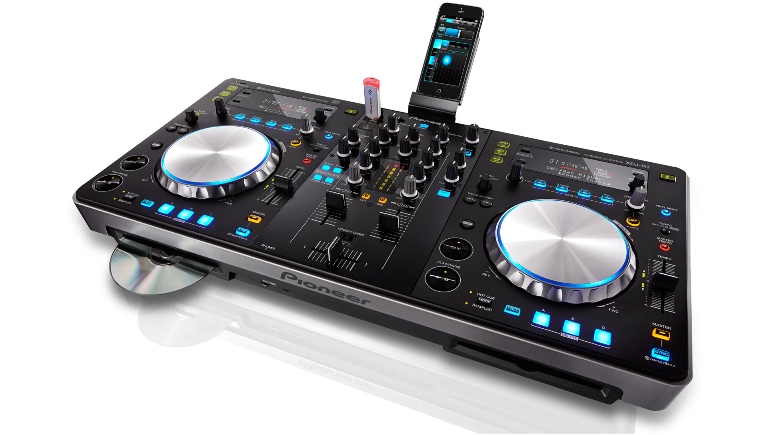

By utilizing the remotebox app with an iOS device such as an iPhone, iPad, or iPod touch, the XDJ-R1 can be remotely controlled wirelessly, giving DJs the ability to continue their music mixing performance even when they move away from the system. Many of the system’s functions can be accessed directly on the display including controlling volume levels, choosing and changing songs as well as the ability to mix songs from a USB device plugged into the system. Users can also apply the “Auto Beat Loop” function3 that automatically loops music at a specific tempo as well as intuitively control various effects using the X-Y pads from a smart device.



Remotebox

The remotebox app with an iOS device such as an iPhone, iPad, or iPod touch, allows the XDJ-R1 to be remotely controlled wirelessly, giving DJs the ability to continue their music mixing performance even when they move away from the system. Many of the system’s functions can be accessed directly on the display including controlling volume levels, choosing and changing songs as well as the ability to mix songs from a USB device plugged into the system. Pioneer’s remotebox app is available now at no charge from the App Store.

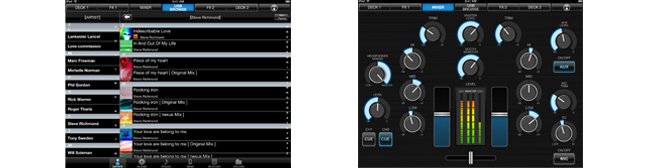

Remotebox on iPad

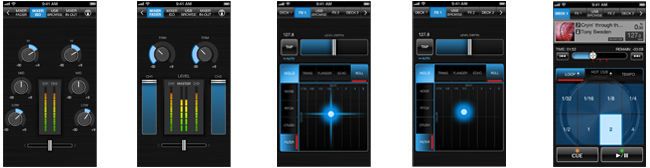

Remotebox on iPhone



Rekordbox

rekordbox software is included with the XDJ-R1. The rekordbox software enables users to prepare and manage music stored on their computer. It can be used to classify and search for music files stored on a computer and crete playlists. It detects, measures and adjusts beats, tempos (BPM) and other elements of the music files prior to a performance. It can also be used to set and store point information (for cueing, looping, hot cueing, etc) prior to a performance.



Virtual DJ LE

The Virtual DJ Limited Edition DJ software5 by Atomix Inc. is free to download with the purchase of an XDJ-R1. The software features an easy-to-use user interface for the XDJ-R1 and enables optimum enjoyment of various DJ play styles with features including loops, effects, a sampler and 4-channel mixing.



Media Support

Unlike conventional systems, the XDJ-R1 is equipped with dual CD players in addition to a USB port for media playback. The system supports a variety of different music formats including conventional compact disc, a CD with MP3, AIFF and WAV files, and a USB storage device with MP3, AAC, WAV and AIFF files. For added convenience, the unit also offers MIDI support for operation of various DJ software.

Mix and Match Features

The XDJ-R1 offers a multitude of fun and convenient features for creating unique mixes including:

  • Beat Sync4 – With a touch of the Sync button, the system automatically synchronizes the beats of songs analyzed through Pioneer’s rekordbox music management software.
  • Hot Cue – The unit features three points of Hot Cues to enable playback of music from specific points.
  • Sampler – For added effects including Trans, Flanger, Echo, and Roll are available to combine with songs currently playing.
  • Sound Color FX – The unit offers four additional effects (Filter, Crush, Noise and Jet) for more creative mixing options.
  • Quantize Function – Automatically corrects synchronization of effects when using Auto Beat Loop or Beat Effect.



Additional Features

  • Noise Reduction – To significantly reduce noise, internal analog and digital circuits were separated, and the distance for digital conversion of analog input signals were shortened. All signal processing is conducted using a high-performance CPU for clear audio output.
  • Independent 3-band isolator.
  • Internal sound card (Audio Interface).

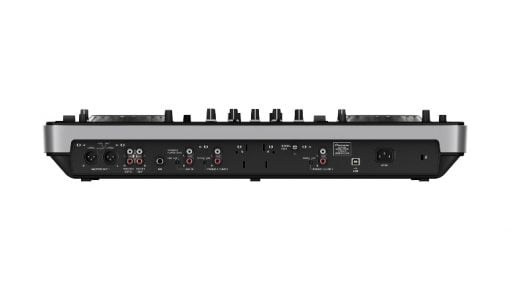

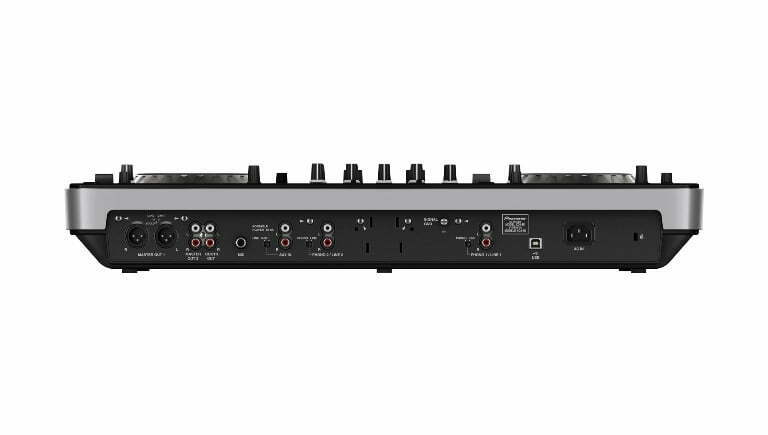

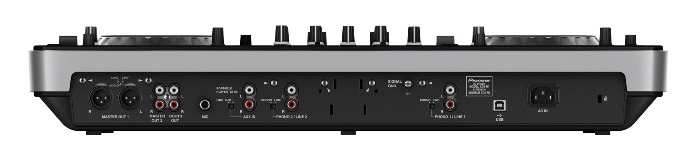

  • Complete with Master Out (XLR), Booth Out, AUX and MIC ports.



1 As DJ equipment (based on research conducted by Pioneer, current as of May 15, 2013)

2 A dedicated application for control of XDJ-R1, available free of charge from the App Store May 30th, 2013

3 Operates with music that has been tempo-analyzed (BPM: Beat per Minute) using the included rekordboxTM software, or when the tempo is automatically deteced during playback

4 Operates with music that has been beat-analyzed using the included rekordboxTM software.

5 Virtual DJ Limited Edition download information will be available at http://pioneerdj.com/support from June 2013

Main specifications of the XDJ-R1

Playable MediaUSB Storage Devices, CD, CD-R/RW
Playable File FormatsMP3, AAC, WAV, AIFF
(only MP3, WAV and AIFF can be played from CD)
USB Storage Formats SupportedFAT32, FAT16
No. of Channels2
Wireless Communications FormatIEEE 802.11b/g (2.4 GHz band)
Sampling Rate44.1 kHz
A/D, D/A Converter24 bit
Frequency Response20 Hz ~ 20 kHz
S/N Ratio98 dB or above (USB)
Total Harmonic DistortionMax 0.006% (USB)
Head Room19 dB
USB PortsA Port × 1, B Port × 1
InputsPHONO/LINE × 2(RCA)
MIC × 1(¼ inch JACK)
AUX × 1 (RCA)
OutputsMASTER OUT × 2 (XLR × 1, RCA × 1)
HEADPHONE MONITOR OUT × 2 (Front ¼ inch JACK, Mini JACK)
BOOTH OUT×1 (RCA)
Maximum External Dimensions
(W × H × D)
623mm × 308.4mm × 107.7mm
Body Weight6.8 kg



System Requirements – rekordbox™ DJ Software (Included)

Supported OSMac OS®X (10.5.8 or above)
Windows®8/Windows®8 Pro
Windows®7 Home Premium/Professional/Ultimate
Windows Vista® Home Basic/Home Premium/Ultimate/Business (SP2 or above)
Windows® XP Home Edition/Professional (SP3 or above)
(*Windows® XP Professional x64 edition is not supported)



System Requirements – rekordbox™ Mobile Application

Supported OSiPhone 3GS or above
iPod touch 3rd generation or above
iPad iOS5 or above



System Requirements – VirtualDJ LE (Free Download)

Supported OS (Windows)Windows® 7/Vista/XP (SP3)
Intel® Pentium® 4 or AMD Athlon™ XP
512 MB RAM or more
Supported OS (Mac)Mac OS X v 10.5/10.6/10.7
Intel® processor platform
1024 MB RAM or more
Required Disk Space50 MB or more
Display Resolution1024 x 768 or more
Additional Requirements for Video MixingATI™ or NVIDIA® video chipset
Dedicated 256 MB DDR3 RAM video
