Kawai NOVUS SERIES Hybrid Piano

CONCEPT

The true acoustic piano experience

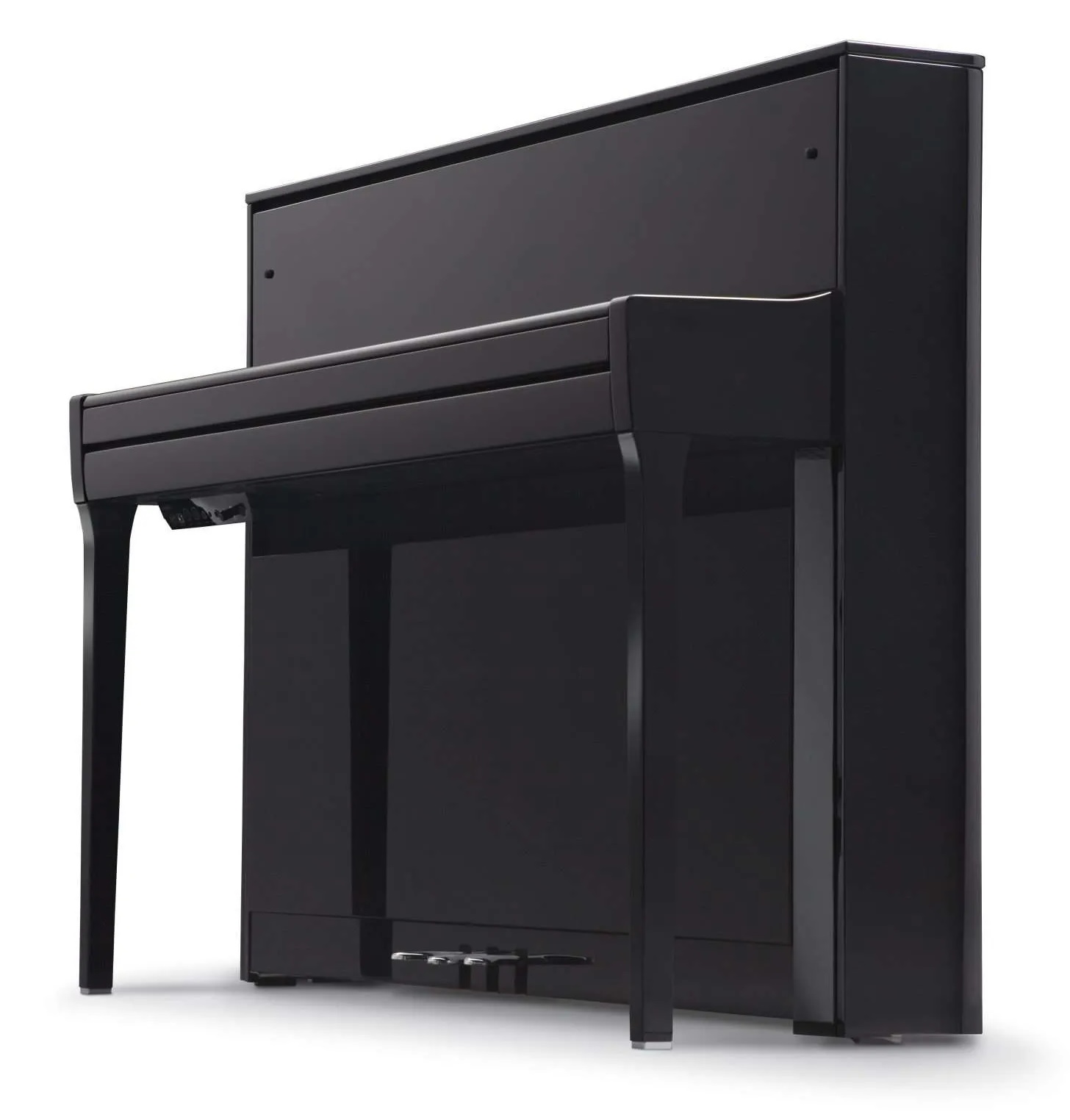

The Novus NV5S is the perfect blend of tradition and innovation. A stunning
hybrid instrument that combines a full acoustic piano keyboard action and damper
mechanism, with the latest digital sound and amplification technologies.
Designed for and tested by professional pianists, the NV5S provides the
unmistakable feeling of playing a premium quality acoustic instrument,
with all the practicality and convenience of a modern digital.

Introducing the Novus NV5S – a hybrid instrument that delivers the true acoustic piano experience.

A quest for perfection
Koichi Kawai designed and built the first complete acoustic piano action in Japan in the early 1900s. In the decades that have followed, Kawai engineers continue to pursue the company founder’s quest for perfection, pioneering the use of state-of-the-art materials and designs that advance the piano art form.

The Millennium III upright piano action found in today’s Kawai ‘K’ series instruments exemplifies Koichi’s philosophy.
This highly-coveted action incorporates components produced using ABS Carbon, an extremely sturdy and rigid composite material that allows these action parts to be stronger, lighter, and faster than their conventional wooden counterparts.
Kawai ‘K’ series upright pianos also utilise extended length key sticks, providing greater control and a more even response from the front to the back of the playing surface.

TOUCH

The touch of an acoustic piano

The Millennium III Hybrid action represents the latest milestone in Kawai’s rich legacy of piano innovation, and serves as the centrepiece of the Novus NV5S. It comprises over 6,000 individual parts, each playing a crucial role in allowing the performer’s fingertips to express feeling and emotion through music.

The future of the piano
Based on the ‘K’ series’ proven action design, Millennium III Hybrid retains the composite parts and extended key sticks of its acoustic cousin, while replacing the traditional felt hammers with individually-weighted ABS equivalents.

As a hybrid piano, there are no metal strings inside the Novus for these hammers to physically strike when the keys are played, therefore their precise movements are instead captured using high-resolution optical sensors mounted over the action.

Millennium III Hybrid delivers all of the benefits of a premium Kawai upright piano action within a digital instrument. This feat of engineering allows pianists to enjoy the unmatched feeling of playing an acoustic piano, regardless of the time of day, or the size of their home.

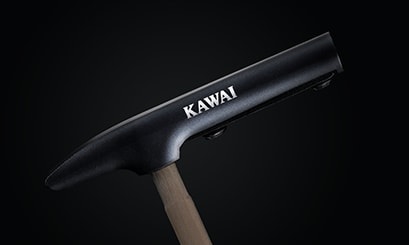

ABS hybrid hammers
The Novus NV5S’ precision-engineered ABS hammers have been designed for structural stability and optimum keyboard touch-response.

Each individual hammer is grade-weighted to mirror the heavier bass and lighter treble hammers of an acoustic piano, ensuring that the NV5S’ key touch-weight feels the same as a well-regulated acoustic instrument.

Optical hammer sensors
The precise movements of each hammer are measured using high-resolution optical sensors, providing greater accuracy than conventional key-based sensor systems.

This more advanced approach closely reproduces the mechanical flow of an acoustic piano, and allows rapid pianissimo passages with mordents or trills to be performed with greater fluency.

FEEL

The Novus NV5S’ beautiful chrome plated pedals are sourced from the same ‘K’ series instruments as the premium Millennium III keyboard action. Moreover, in addition to featuring a full acoustic piano action, the NV5S also incorporates a real acoustic piano damper mechanism.

 The feel of an acoustic piano

The Novus NV5S’ beautiful chrome plated pedals are sourced from the same ‘K’ series instruments as the premium Millennium III keyboard action. Moreover, in addition to featuring a full acoustic piano action, the NV5S also incorporates a real acoustic piano damper mechanism.

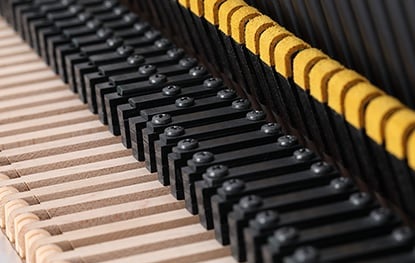

Unprecedented realism
There are no metal strings inside the Novus to require physical damping, as the instrument’s sound is produced digitally.

However, in order to reproduce every aspect of playing an acoustic piano, the NV5S retains the damper mechanism behind the keyboard action, replicating the extra load of traditional wood and felt parts, as the keys and pedal are pressed.

This innovation allows pianists to not only hear how the damper pedal affects the Novus’ generated sound, but also feel the various mechanical interactions through their hands and feet.

Such attention to detail is unprecedented in a digital instrument, and further reinforces the NV5S’ objective of delivering a true acoustic piano playing experience that is indistinguishable from the real thing.

SOUND

The sound of an acoustic piano

The spirit of the Shigeru Kawai SK-EX concert grand piano is at the heart of the Novus NV5S. Each world-class instrument is hand-crafted by Master Piano Artisans (MPAs), utilising the finest available materials to ensure optimum touch, tone, and artistic expression.

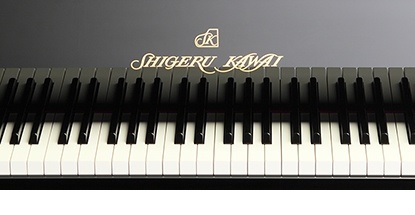

The premier piano of Japan
Widely regarded as ‘the premier piano of Japan,’ the Shigeru Kawai SK-EX graces the stages of concert halls and musical institutions around the globe, receiving universal acclaim for its magnificent tonal clarity and exceptional dynamic range.

Shigeru Kawai is also frequently provided for official selection at some of the world’s most prestigious music competitions, including the Hamamatsu International Piano Competition in Japan. At the 10th edition held in November 2018, three of the six grand finalists selected the SK-EX throughout the competition, including 1st prize winner Can Cakmur.

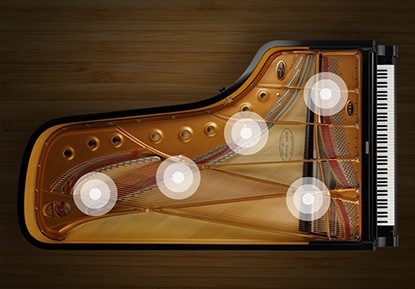

Naturally expressive sound
In order to reproduce the stunning tonal qualities of the Shigeru Kawai concert grand piano digitally, the Novus NV5S incorporates Kawai’s latest SK-EX Rendering technology.

This advanced piano sound engine combines the well-established process of sampling with the modern approach of physical modelling, to produce a piano sound that is both rich in natural acoustic character, and dynamically responsive to the player’s musical desires.

High-performance delivery

Developed in collaboration with Onkyo, one of Japan’s leading premium audio equipment manufacturers, the NV5S features specialist filtering and amplification components designed for high-resolution sound reproduction.

These technologies improve tonal clarity throughout the dynamic range, while helping to preserve the unique harmonic characteristics of the Shigeru Kawai piano.

Advanced speaker system

This high-fidelity sound is delivered through the NV5S’ powerful speaker system, which combines Kawai’s exclusive TwinDrive soundboard technology with six premium quality speaker drivers. The result is a remarkably authentic playing experience that immerses the performer, and faithfully reproduces the tonal ambience of an acoustic piano.

FEATURES

The features of a digital piano

While the Novus NV5S’ core features are unquestionably derived from an acoustic piano, the instrument neatly incorporates various additional technologies that provide the modern conveniences of a premium digital piano.
These features are primarily controlled through the NV5S’ touchscreen LCD, which is discretely embedded within the instrument’s left cheekblock. This high resolution touchscreen allows sounds and settings to be adjusted from an attractive user interface simply by tapping or swiping the display with a finger.
For piano purists, the screen can be set to fade out automatically while playing, thus preserving the Novus’ classic appearance, and minimising any visual distraction to the performer.

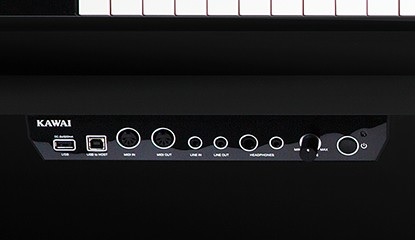

Unlike an acoustic piano, the Novus NV5S provides a variety of options for connecting to other devices. Headphone and audio jacks allow the instrument to be played in silence, or for the sound to be amplified for halls and other large settings, and USB and MIDI ports for transferring music data to and from a computer.

The NV5S even supports Bluetooth® MIDI and audio functionality, providing an effortless way to connect and enjoy smart devices wirelessly.

PianoRemote app

The NV5S’ redesigned communication standard allows the user-friendly touchscreen interface to also be accessed via the dedicated PianoRemote app for iOS and supported Android devices. The app connects to the piano wirelessly via the Novus’ integrated Bluetooth, providing an effortless way to change sounds, or enjoy the vast array of built-in music content from the comfort of an armchair.

DIMENSIONS

SPECIFICATIONS

CONCEPT

The true grand piano experience

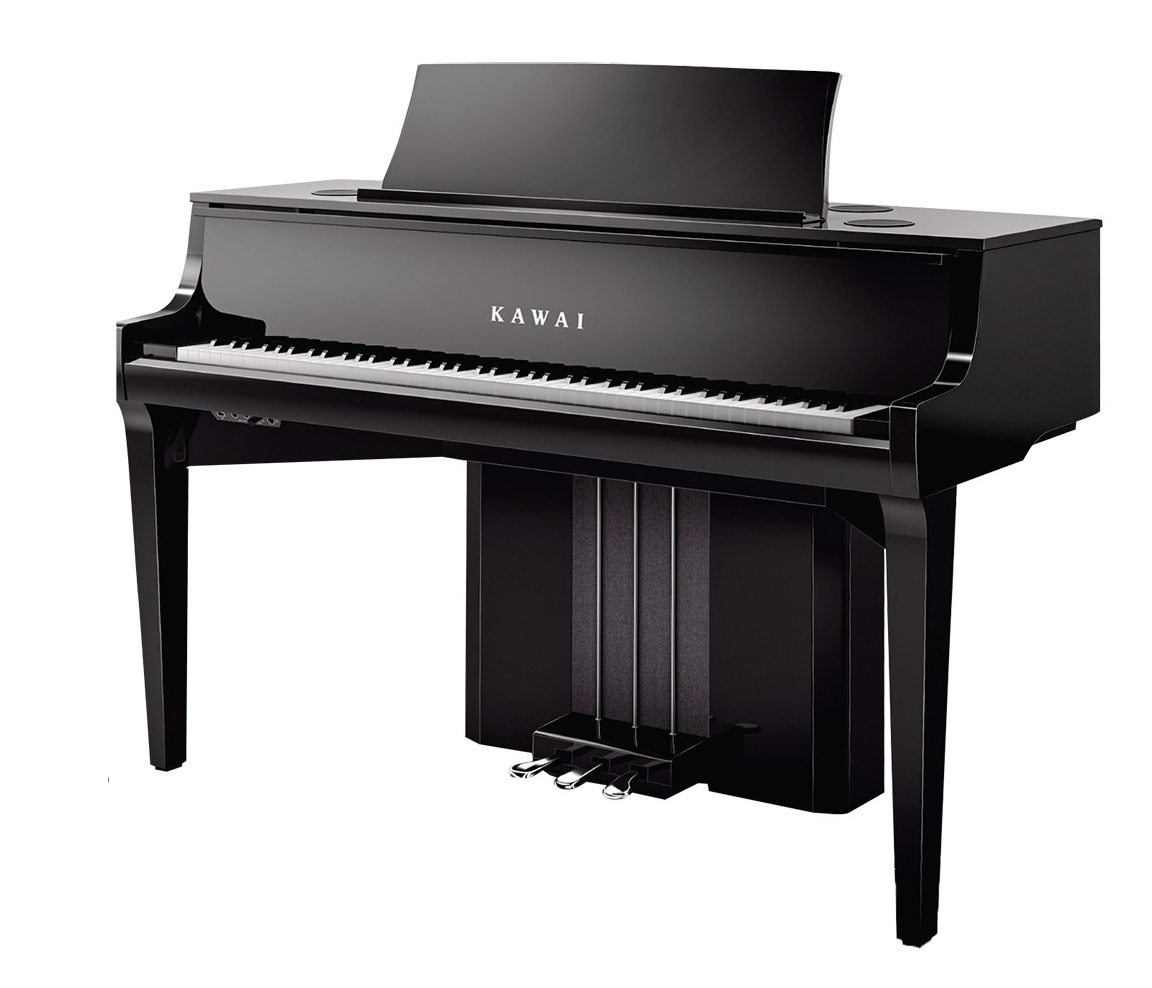

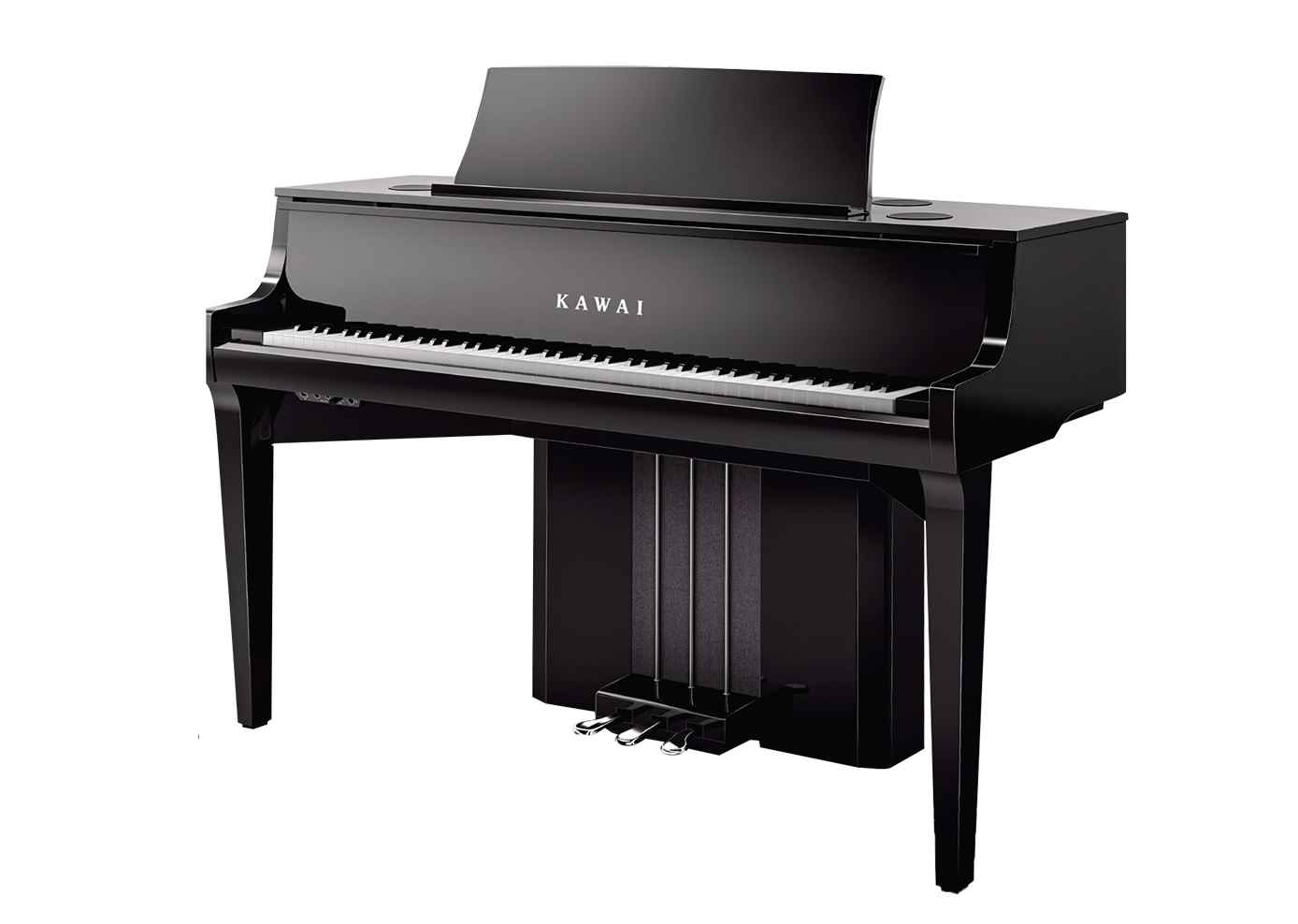

The Novus NV10S is the perfect blend of tradition and innovation. A stunning
hybrid instrument that combines a full grand piano keyboard action and damper
mechanism, with the latest digital sound and amplification technologies.
Designed for and tested by professional pianists, the NV10 provides the
unmistakable feeling of playing a premium quality acoustic instrument,
with all the practicality and convenience of a modern digital.

Introducing the Novus NV10S – a hybrid instrument that delivers the true grand piano experience.

A quest for perfection
Koichi Kawai designed and built the first complete acoustic piano action in Japan in the early 1900s. In the decades that have followed, Kawai engineers continue to pursue the company founder’s quest for perfection, pioneering the use of state-of-the-art materials and designs that advance the piano art form.

The Millennium III upright piano action found in today’s Kawai ‘K’ series instruments exemplifies Koichi’s philosophy.

This highly-coveted action incorporates components produced using ABS Carbon, an extremely sturdy and rigid composite material that allows these action parts to be stronger, lighter, and faster than their conventional wooden counterparts.

Kawai ‘K’ series upright pianos also utilise extended length key sticks, providing greater control and a more even response from the front to the back of the playing surface.

TOUCH

The touch of a grand piano

The Millennium III Hybrid action represents the latest milestone in Kawai’s rich legacy of piano innovation, and serves as the centre-piece of the Novus NV10S. It comprises almost 10,000 individual parts, each playing a crucial role in allowing the performer’s fingertips to express feeling and emotion through music.

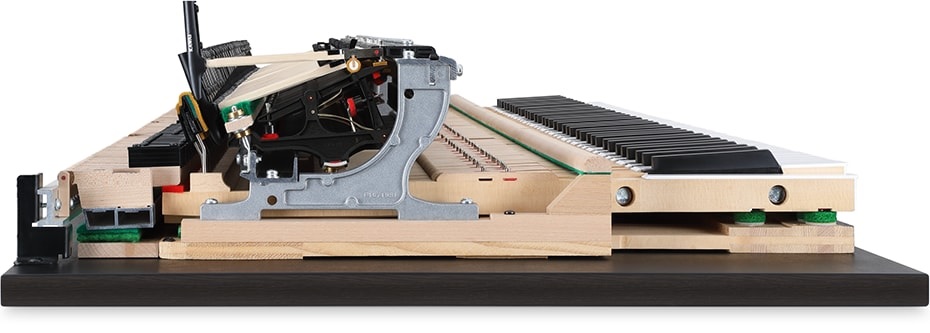

The future of the piano

Based on the GX series’ proven action design, Millennium III Hybrid retains the composite parts and extended key sticks of its acoustic cousin, while replacing the traditional felt hammers with individually-weighted ABS equivalents. As a hybrid piano, there are no metal strings inside the Novus for these hammers to physically strike when the keys are played, therefore their precise movements are instead captured using high-resolution optical sensors mounted above the action.

Millennium III Hybrid delivers all of the benefits of a premium Kawai grand piano action within a digital instrument. This feat of modern engineering allows pianists of every level to enjoy the unmatched feeling of playing an acoustic grand piano, regardless of the time of day, or the size of their home.

ABS hybrid hammers
The Novus NV10S’ precision-engineered ABS hammers have been designed for structural stability and optimum keyboard touch-response.

Each individual hammer is grade-weighted to mirror the heavier bass and lighter treble hammers of an acoustic piano, ensuring that the NV10S’ key touch-weight feels the same as a well-regulated acoustic instrument.

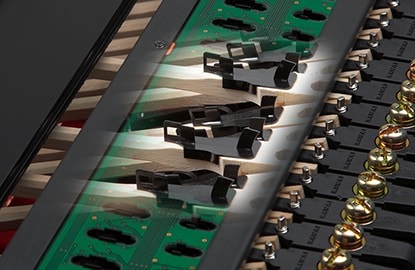

Optical hammer sensors
The precise movements of each hammer are measured using high-resolution optical sensors, providing greater accuracy than conventional key-based sensor systems.

This more advanced approach closely reproduces the mechanical flow of an acoustic piano, and allows rapid pianissimo passages with mordents or trills to be performed with greater fluency.

FEEL

The feel of a grand piano

The Novus NV10S’ beautiful chrome plated pedals and exposed pedal rods are sourced from the same GX series instruments as the premium Millennium III keyboard action. Moreover, in addition to featuring a full grand piano action, the Novus NV10S is the first hybrid instrument to also incorporate a real grand piano damper mechanism.

Unprecedented realism
There are no metal strings inside the Novus to require physical damping, as the instrument’s sound is produced digitally.

However, in order to reproduce every aspect of playing a grand piano, the NV10S retains the damper mechanism behind the keyboard action, with graded weights attached to each damper lever replicating the load of traditional wood and felt parts, as the keys and pedal are pressed.

This innovation allows pianists to not only hear how the damper pedal affects the Novus’ generated sound, but also feel the various mechanical interactions through their hands and feet.

Such attention to detail is unprecedented in a digital instrument, and further reinforces the NV10S’ objective of delivering a true grand piano playing experience that is indistinguishable from the real thing.

SOUND

The sound of an acoustic piano

The spirit of the Shigeru Kawai SK-EX concert grand piano is at the heart of the Novus NV5S. Each world-class instrument is hand-crafted by Master Piano Artisans (MPAs), utilising the finest available materials to ensure optimum touch, tone, and artistic expression.

The premier piano of Japan
Widely regarded as ‘the premier piano of Japan,’ the Shigeru Kawai SK-EX graces the stages of concert halls and musical institutions around the globe, receiving universal acclaim for its magnificent tonal clarity and exceptional dynamic range.

Shigeru Kawai is also frequently provided for official selection at some of the world’s most prestigious music competitions, including the Hamamatsu International Piano Competition in Japan. At the 10th edition held in November 2018, three of the six grand finalists selected the SK-EX throughout the competition, including 1st prize winner Can Cakmur.

Naturally expressive sound

In order to reproduce the stunning tonal qualities of the Shigeru Kawai concert grand piano digitally, the Novus NV10S incorporates Kawai’s latest SK-EX Rendering technology.

This advanced piano sound engine combines the well-established process of sampling with the modern approach of physical modelling, to produce a piano sound that is both rich in natural acoustic character, and dynamically responsive to the player’s musical desires.

High-performance delivery

Developed in collaboration with Onkyo, one of Japan’s leading premium audio equipment manufacturers, the NV10S features specialist filtering and amplification components designed for high-resolution sound reproduction.

These technologies improve tonal clarity throughout the dynamic range, while helping to preserve the unique harmonic characteristics of the Shigeru Kawai piano.

Advanced speaker system

This high-fidelity sound is delivered through the NV10S’ powerful 7-speaker output system, which combines a large 20 cm woofer enclosed within the instrument’s base, with four premium quality top-facing mid-range drivers, and two tweeters placed behind the upper board.  The result is a remarkably authentic playing experience that immerses the performer, and faithfully reproduces the three dimensional sound field of an acoustic grand piano.

FEATURES

The features of a digital piano

While the Novus NV10S’ core features are unquestionably derived from an acoustic piano, the instrument neatly incorporates various additional technologies that provide the modern conveniences of a premium digital piano.

These features are primarily controlled through the NV10’s touchscreen LCD, which is discretely embedded within the instrument’s left cheekblock. This high resolution touchscreen allows sounds and settings to be adjusted from an attractive user interface simply by tapping or swiping the display with a finger.

For piano purists, the screen can be set to fade out automatically while playing, thus preserving the Novus’ classic appearance, and minimising any visual distraction to the performer.

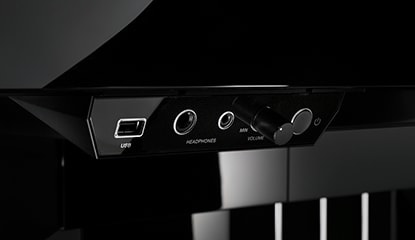

Unlike an acoustic piano, the Novus NV10S provides a variety of options for connecting to other devices. Headphone and audio jacks allow the instrument to be played in silence, or for the sound to be amplified for halls and other large settings, and USB and MIDI ports for transferring music data to and from a computer.

The NV10S even supports Bluetooth® MIDI and audio functionality, providing an effortless way to connect and enjoy smart devices wirelessly.

PianoRemote app

The NV10S’ redesigned communication standard allows the user-friendly touchscreen interface to also be accessed via the dedicated PianoRemote app for iOS and supported Android devices. The app connects to the piano wirelessly via the Novus’ integrated Bluetooth, providing an effortless way to change sounds, or enjoy the vast array of built-in music content from the comfort of an armchair.

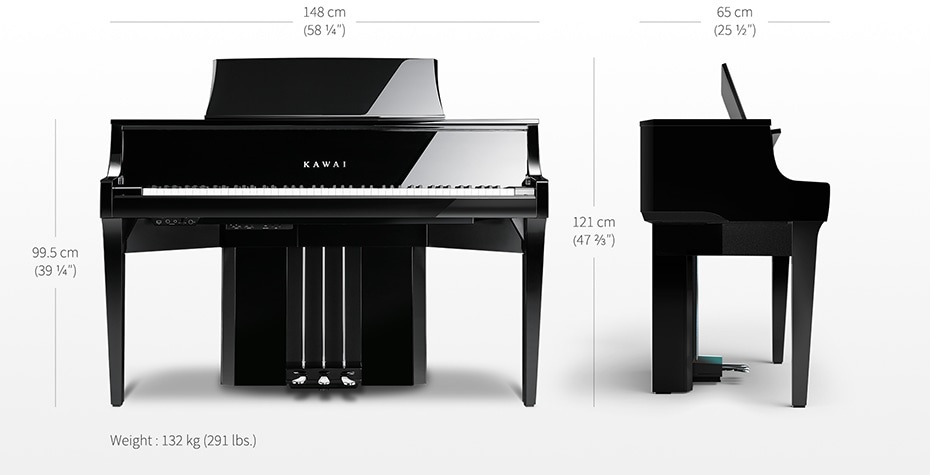

DIMENSIONS

SPECIFICATIONS
