Keyboard | ・ Responsive Hammer III action
– 88 keys
– Grade-weighted hammers
– Ivory Touch white key surfaces
– Let-off simulation
– Counterweights
– Triple sensor key detection |
---|
Pedal | ・ F-10H pedal unit
– Damper (with half-pedal support) |
---|
Piano Sound | ・ Harmonic Imaging XL (HI-XL)
– 88-key stereo sampling
– SK-EX, SK-5, EX recording
– 256 note maximum polyphony |
---|
Piano Resonance | – Damper Resonance
– String Resonance
– Undamped String Resonance |
---|
Piano Adjustment | ・Virtual Technician (23 parameters)
– Touch Curve (incl. User Touch Curve)
– Voicing
– Damper Resonance
– Damper Noise
– String Resonance
– Undamped String Resonance
– Key-off Effect
– Fall-back Noise
– Hammer Delay
– Topboard Simulation
– Decay Time
– Minimum Touch
– Stretch Tuning (incl. 88-key User Tuning)
– Temperament (incl. User Temperament)
– Temperament Key
– Key Volume (incl. 88-key User Key Volume)
– Half-Pedal Adjust
– Soft Pedal Depth- Stereo Width
– Key-off Noise (E.Piano)
– Key-off Delay (E.Piano)
– Key Click Level (Organ)
– Wheel Noise Level (Organ) |
---|
No. of Sounds | 256 voices |
---|
Reverb | 6 types |
---|
Brilliance | ✔ |
---|
Other Effects | 129 types |
---|
Speakers | – |
---|
Output Power | – |
---|
Headphone Enhancements | – |
---|
Display | 128 x 64 pixel LCD with backlight |
---|
Key Cover | – |
---|
Music Rest | Detachable type (included) |
---|
Product

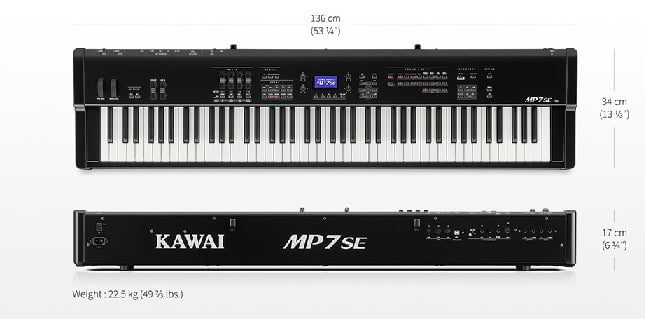

Size & Weight | Width | 136 cm (53 1/4″) |
---|
Depth | 34 cm (13 1/3″) |
---|
Height | 17 cm (6 3/4″) [music rest detached] |
---|
Net Weight | 22.5 kg (49 2/3 lbs.) |
---|
Packing
Size & Weight | Dimensions | 152.5 (W) x 49 (D) x 30 (H) cm |
---|
Gross Weight | 32 kg |
---|
Available Finishes | Gloss Black |
---|
Basic Functions | Dual
Split
Transpose
Tuning
Registration |
---|
Internal Songs | Sound Demo | – |
---|
Piano Music | – |
---|
Concert Magic | – |
---|
Lesson Songs | – |
---|
Internal Recorder | Total Memory | approximately 90,000 notes |
---|
No. of Songs | 10 songs |
---|
Parts | 1 part |
---|
Metronome | Time Signatures | 1/4, 2/4, 3/4, 4/4, 5/4, 3/8, 6/8, 7/8, 9/8, 12/8 |
---|
Drum Rhythms | 100 patterns |
---|
Bluetooth * | – |
---|
USB Audio Recorder | Record/Playback | MP3
WAV |
---|
Other Functions | Overdubbing
Line In recording |
---|
App Functions | – |
---|

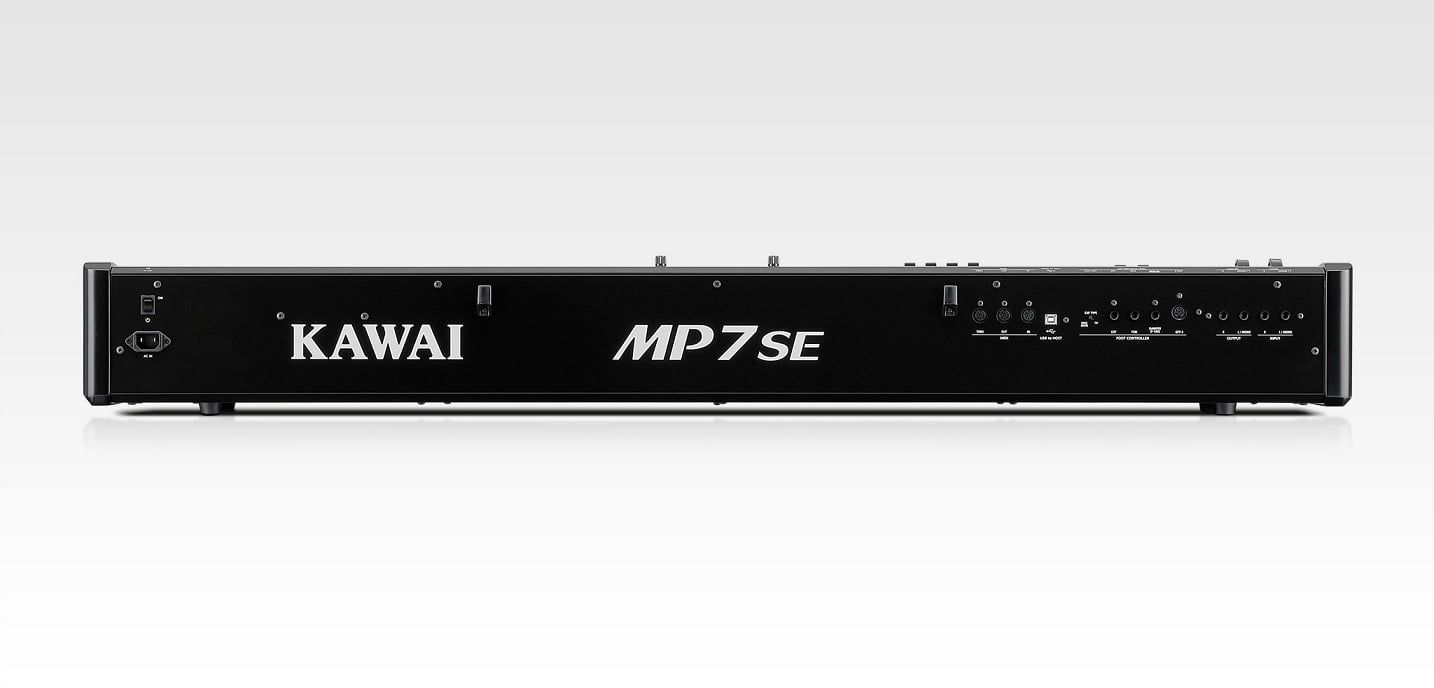

Connector Jacks | Headphone | 1 x 1/4″ Stereo jack |
---|
MIDI | MIDI IN, MIDI OUT, MIDI THRU |
---|
Line Out | 1/4″ L/MONO, R [unbalanced] |
---|
Line In | 1/4″ L/MONO, R [unbalanced] |
---|
USB to Host | ✔ |
---|
USB to Device | ✔ |
---|
Others | SOFT (FSW)
DAMPER/SOSTENUTO/SOFT (for GFP-3)
DAMPER (for F-10H)
EXP + EXP type switch |
---|
Power Consumption | 20 W |
---|
Power | Power cable |
---|
Bench | – |
---|
Headphones | – |
---|
Sheet Music | – |
---|
Others | Warranty Card *
Owner’s Manual
Music Rest
F-10H damper pedal (with half-pedal support) |
---|
