KORG PROLOGUE 16 Polyphonic Analog Synthesizer

Rp36.950.000

SKU: KORG-PROLOG Categories: , , Tags: ,

Description

A new-generation of flagship analog synthesizer.

The ultimate multi-voice, multi-timbre, multi-engine.
prologue is a fully-programmable, full-featured, professional synthesizer. Preceded by the four-voice polyphonic minilogue and the monophonic monologue, it’s the long awaited debut of the flagship: the prologue.

prologue is a polyphonic analog synthesizer equipped with a full-sized keyboard. With powerful analog circuits that are descended directly from the earlier models of the series, together with a newly developed digital multi engine and gorgeous DSP-based effects, prologue expands the variety of sounds and the possibilities for user customization.

The lineup is comprised of two models that cover musicians’ needs for not only stage use, but also studio, home, or touring use: 16-voice 61-key prologue-16, and the eight-voice 49-key prologue-8. These instruments are capable of sounds that go beyond existing analog synthesizers.

Newly developed multi-engine

The ingenuity of prologue goes beyond its analog design. The newly developed multi engine is provided as VCO3, adding digital waveforms and FM. This multi engine, which is equipped with three different sound engines, can be combined with the analog VCOs to expand prologue’s sonic potential far beyond that of a traditional analog synthesizer.

Noise generator
There are four types of noise generator, indispensable for percussive sounds or sound effects. Experience how digital filtering can produce direct changes in the color of the noise.

VPM oscillator
The VPM (Variable Phase Modulation) / FM oscillator was newly developed for prologue. Its metallic and sharp sounds with their complex overtones could never be obtained by analog means. With 16 types of oscillator and the SHAPE knob, you’ll be intuitively guided through complex sound design. Combine these wave shapes with prologue’s gorgeous analog filters, and prepare for sounds you never thought possible.

User oscillator
The user oscillator section lets you load oscillator programs of your own creation. Sixteen slots are provided, and one type of morphing wavetable oscillator is built-in as a preset.

Digital effects

The high-quality digital effects feature pristine 32-bit floating-point processing, and add a further polish to the sound of the prologue. With two effect units provided (a modulation effect and delay/reverb), you can choose from a wide variety such as chorus or ensemble, warm tape delay, or diverse reverbs. The user effect slots let you load effect programs of your own creation.

Analog comp/booster

The exclusive VU meter is available only on the prologue-16, and indicates the newly developed master effect L.F. COMP. It’s a low end booster/compressor using an analog circuit, delivering a solid sense of presence that cannot be obtained from a simple EQ. You’ll particularly notice the difference in high-volume stage performances where maximum dynamics can be utilized.





Bi-timbral

The prologue is a two-timbre synthesizer that lets you play two different programs simultaneously. In addition to layer and split, you can use crossfade to smoothly transition between the main timbre and sub timbre. An ample 16 or 8 voices ensure that the player’s advanced performance needs will be met.









Voice modes

The prologue provides voice modes that let you freely combine the 16 or 8 voices for performance. The standard POLY mode lets you play chords with up to 16 or 8-note polyphony. MONO mode is ideal for bass using the sub-oscillator. UNISON allows you to generate thick lead tones by sounding all voices in unison. CHORD lets you play chords with one finger. In conjunction with the DEPTH knob, you can use these modes to obtain a variety of effects.

Four voice modes
– POLY: Operates as a poly synth with up to 16 or 8 voices. Turn the VOICE MODE DEPTH knob to switch to DUO mode, in which the instrument operates in unison as a poly synth with up to 8 or 4 voices.
– MONO: Operates as a mono synth with sub oscillator.
– UNISON: Operates as an all-unison mono synth.
– CHORD: Plays chords.

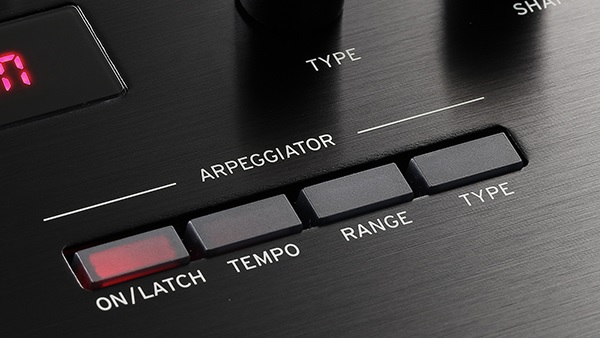

Arpeggiator

The powerful arpeggiator opens up a world of limitless inspiration. It provides a four-octave range, and six arpeggiator types including manual set. From phrases that could not be performed on a keyboard to sequence-like sound designs, the arpeggiator can play a versatile array of roles.









Program sort

The program sort function lets you instantly change the sorting order of the 500 programs. You can sort by category, alphabetical order, use LIKE to view the programs that you marked as your favorites, FREQUENT to sort the programs in order of their frequency of use, or ENVELOPE to sort the programs in order of their envelope shape (note duration). By choosing from eight different sorting conditions, you’ll be able to quickly find the sound that you need, without interrupting the tempo of your rehearsal or production workflow.

Eight program sort methods
– PROG NUM: Sort by program number.
– CATEGORY: Sort by program category.
– ALPHABETICAL: Sort programs alphabetically.
– LIKE: Sort by programs that you “liked.”
– FREQUENT: Sort by how frequently you used the program.
– ENVELOPE: Sort by envelope shape.
– RANDOM: Sort randomly.
– LIVE SET: Sort programs registered in a live set.

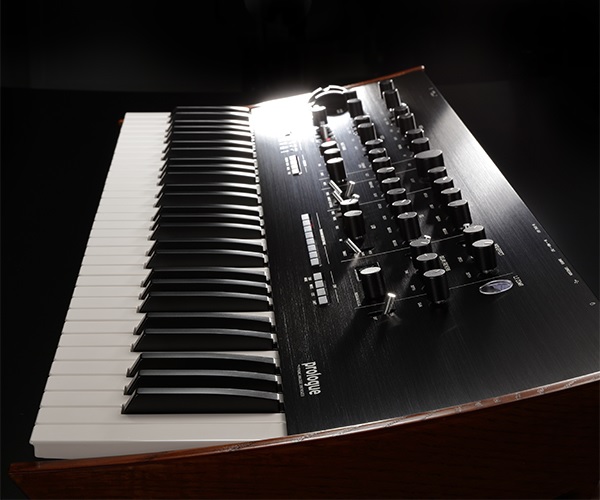

Japanese-made natural touch keyboard

The attention to detail expected of a flagship extends to prologue’s playability and design as well.

The keyboard is a high-quality Japanese-made natural touch keyboard, providing the same superb touch and feel as on KORG’s high-end workstations, and allowing a high degree of expressive power.

prologue’s body emanates beauty and the presence of a boutique synth, and newly redefines the look of a classic synthesizer. The black aluminum front panel features the same curvature as the minilogue, and sports a beautiful hairline finish. Metal knobs with a sense of weight, diamond-cut silver indices, and oak wood side panels are some of the details that emphasize the high quality of this Made In Japan instrument.





SPECIFICATIONS
Keyboard
prologue-16
61 keys (Natural touch keyboard with velocity)
Sound Generation
Analogue sound generator + Multi digital sound generator (Noise, VPM, User)
Maximum Polyphony
prologue-16
16 voices
Programs
500 voices (more than 250 preload, 250 user programs).
Each program provides a program sort function that includes voice mode and timbre settings, and allows up to 8 × 4 banks of live set programs to be registered.
Voice Mode
4 (POLY, MONO, UNISON, CHORD).
The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.
Timbres
Max two timbre (Main timbre, Sub timbre)
Layer, crossfade, and split settings are possible.
Arpeggiator
6 types (Manual, Rise, Fall, Rise Fall, Random, Poly Random).
Tempo and note range can be changed
Program Sort
8 (PROG NUM, CATEGORY, ALPHABETICAL, LIKE, FREQUENT, ENVELOPE, RANDOM, LIVE SET)
Main Synth Parameters
VCO1
WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
VCO2
WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE
MODULATION
PITCH EG (ALL, VCO1+2, VCO2), PITCN EG INT, SYNC, RING, CROSS MOD DEPTH
MULTI ENGINE
NOISE/VPM/USER, OCTAVE, TYPE, SHAPE
MIXER
VCO1, VCO2, MULTI
VCF
CUTOFF, RESONANCE, EG INT, DRIVE, LOW CUT, KEYTRACK
AMP EG
ATTACK, DECAY, SUSTAIN, RELEASE
EG
ATTACK, DECAY, SUSTAIN, RELEASE
LFO
WAVE (SAW, TRIANGLE, SQUARE), MODE (FAST, SLOW, BPM), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)
Main Effect Parameters
MOD EFFECTS
OFF/ON/SELECT (CHORUS, ENSEMBLE, PHASER, FLANGER, USER), SPEED, DEPTH
DELAY/REVERB
OFF/DELAY/REVERB, TIME, DEPTH
L.F. COMP (prologue-16 only)
OFF/ON, GAIN
MULTI ENGINE
Noise Generator
4 types
VPM oscillator
16 types
User oscillator
16 slots
MOD EFFECTS
CHORUS
8 types
ENSEMBLE
3 types
PHASER
8 types
FLANGER
8 types
USER
16 slots
DELAY/REVERB
DELAY
8 types
REVERB
8 types
Controls
Wheels: Modulation wheel that can modify different parameters for each program, pitch wheel
Knobs: PORTAMENTO knob, VOICE SPREAD knob (only on prologue-16)
Display
Main
Real-time OLED oscilloscope provides visual feedback of parameter changes
MULTI ENGINE section
7 segments x 6 digit LED display
Input/Output connectors
Headphone jack (Stereo phone jack)
OUTPUT L/MONO, R jacks (monaural phone jack unbalanced)
SYNC IN jack (3.5 mm [1/8″] mini jack, maximum input level 20 V)
SYNC OUT jack (3.5 mm [1/8″] mini jack, output level 5 V)
MIDI IN jack
MIDI OUT jack
USB B jack
EXPRESSION jack
DAMPER jack (half damper is not supported)
Power Supply
AC Power Supply terminal
Power Consumption
prologue-16
38 W
prologue-8
23 W
Dimensions (W x D x H)
prologue-16
874 mm x 348 mm x 118 mm/34.41″ x 13.70″ x 4.65″
Weight
prologue-16
9.1 kg/20.06 lbs.
Included Items
AC power cable
Accessories (sold separately)
Soft Case
SC-PROLOGUE soft case (For prologue-16/prologue-8)
Sync Cable
SQ-CABLE-6 Sync cable
Damper Pedal
DS-1H damper pedal
Pedal Switch
PS-1 pedal switch, PS-3 pedal switch
Expression/Volume Pedal
XVP-20 Volume/Expression pedal, XVP-10 Expression/Volume pedal
Foot Controller
EXP-2 foot controller
