KORG MICROKORG XL+ Synthesizer/Vocoder

Rp8.600.000

SKU: KORG-MCROKORG-XL+ Categories: , , Tags: , ,

Description

Vintage … and much more!

With its unmistakably unique exterior and its inimitable sound, the microKORG set the standard for analog modeling synthesizers. The year 2008 saw the introduction of the microKORG XL, which inherited the microKORG’s fat and powerful sounds, while adding keyboard staples such as electric piano and CX-3 organ. And now, in the next evolutionary step, the microKORG XL+ delivers a fresh update to the sounds and look of the microKORG XL, making it an ideal compact keyboard.



FEATURES



More Vintage Sounds than Ever

Lush analog modeled synthesizer sounds that are characteristic of the microKORG have been freshly added to the microKORG +. In addition, for band use, the microKORG XL+ comes equipped with the piano sound from Korg’s classic stage piano, the SGproX (famous for its ability to stand out in your band’s mix), as well as its hard-edged grand-type electric piano. This compact package also includes sounds from the M1 and the VOX organ, vintage tape-type string and flute machines, as well as other gorgeous sounds from keyboard history.

Of course, these sounds can be played full-range like the originals that inspired them, either by using the onboard octave switch, or by connecting your choice of any MIDI-capable full-sized keyboard of choice. Each of these 128 programs are genuinely inspiring sounds, giving the microKORG XL+ plenty of variety to serve as your main keyboard or as a secondary keyboard in your rig.



Program genre selector

The microKORG XL featured a sound selector that lets you choose your sound using two large dials: “music genre” and “instrument category.”

The new microKORG XL+ has been updated with a new set “music genres” to fit today’s evolving music scene. Now you can select a program that matches your song more intuitively than ever.

For even more convenience, you can also leave one of the dials fixed and use the other dial to make program changes during a song (music genre fixed), or use the dial to select Vocoder variations (instrument category fixed).





New Yet Nostalgic – “New Vintage” Design
The microKORG XL+ projects a style that’s reminiscent of vintage electric pianos, featuring a futuristic and simultaneously retro design with a stylish black panel and knobs. High-quality parts such as metal levers, dials that move with an audible click, and knobs with a sturdy operating feel are some of the ways that the microKORG XL+ outclasses other instruments in its range and enhances your experience editing synthesizer sounds.

MMT – the distillation of Korg’s analog modeling technology

The microKORG XL+’s sound engine uses MMT (Multiple Modeling Technology), borrowing from Korg’s well proven wealth of analog modeling technology. The MMT sound engine has been featured on numerous products, and provides two oscillators that generate huge powerful sounds.

Oscillator 1 gives you a total of seven types of oscillator algorithm to choose from, including formant waveforms such as human voice, and PCM/DWGS waveforms for vintage keyboard and strings. It also lets you use techniques that cannot be imitated on typical PCM synthesizers, such as cross modulation, unison, and VPM (Variable Phase Modulation).



Vocoder Function with Included Gooseneck Microphone

The microKORG XL+ can function as a powerful Vocoder that lets you connect a mic and use its audio input to shape the tonal character of the oscillator’s sound to create “talking” effects.

The Vocoder consists of a 16-band filter bank that can simulate the Vocoder sounds of the past and also shift the filter frequencies (Format Shift function) or adjust the level and pan of each band to dramatically change the overall sonic character. Using the Vocoder is an easy way to add sounds that can be found in today’s popular electronic music.

Since a gooseneck microphone is included, you can immediately start using the Vocoder in your songs.





The Powerful Effect Engine You Expect From Korg

Two master effects utilize the effect engine that was brought to perfection in Korg’s Kaoss Pad series, giving you a total of 17 powerful effect types including delay and echo effects as well as dramatic effects such as ring modulator and grain shifter.

In addition, effects such as delay can be synchronized to MIDI clock for a wide range of possibilities in live performance.

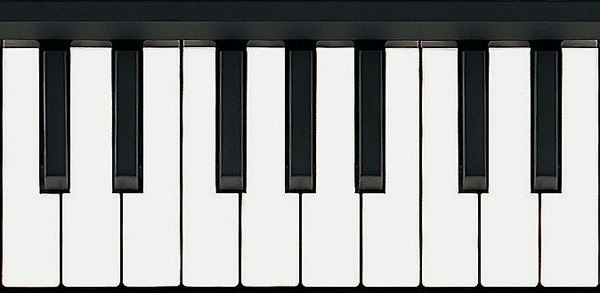

Natural Touch Mini-keyboard

The new Natural Touch mini-keyboard offers an even better playing feel than ever before. The proportion of the keys has been adjusted to make chords easier to play, and the touch has been refined for greater ease when playing rapid phrases. The waterfall-type keys project an aura of sophistication, and they also help when playing a glissando.







Battery-powered for Convenient Portability

The microKORG XL+ can take advantage of the included AC adaptor or it can run on six AA alkaline batteries. Checking in at a mere 22 inches long and 4.4 lbs. in weight (main unit only; not including batteries or mic), the microKORG XL+ is a convenient size to take with you, opening up new performance possibilities on the go.

SPECIFICATIONS



Program
Multi Timbral
Maximum 2 (when using Layer, Split, or Multi)
Voice polyphony
Maximum 8 voices (when using Vocoder, it is 4 voices)
Synth
2 oscillators + noise generator
Oscillator 1
Waveform: 8 types (Sawtooth, Pulse, Triangle, Sine, Formant, Noise, DWGS, Audio In), Modulation: Waveform, Cross, Unison, VPM
Oscillator 2
Waveform: 4 types (Sawtooth, Pulse, Triangle, Sine)
Modulation: Ring, Sync, Ring+Sync
Waveshape
Type: Drive, Decimator, HardClip, OctSaw, MultiTri, MultiSin, SubOSCSaw, SubOSCSqu, SubOSCTri, SubOSCSin, LevelBoost,
Multimode Filters
Filter 1: -24 dB/oct LPF ~ -12 dB/oct LPF ~ -12 dB/oct BPF ~ -12 dB/oct HPF ~ Thru, Filter 2: LPF, HPF, BPF (swichable)
Vocoder
16 channel vocoder, adjustable level and pan for each channel, Formant Shift function, Formant Hold function
Keyboard
37 notes (Natural Touch mini-keyboard, velocity sensitive)
Controller
Pitch bend wheel, Modulation Wheel
Effects
Timbre
2 band EQ
Master effect
2 units, 17effect algorisms.
Arpeggiator
Six types: UP, DOWN, ALT1/2, Random, Trigger, Individual step on/off function
Programs
128 programs (A/B banks x 8 genres x 8 category)
Inputs
[AUDIO INPUT 1] (1/4” phone jack, unbalanced, with MIC/LINE switch) – Rear Panel
[AUDIO INPUT 1 (MIC)] (XLR jack / balanced) – Front Panel
Outputs
[L/MONO, R] (1/4” Standard phone jacks / unbalanced)
[Phone] (1/4” Stereo Standard phone jacks)
MIDI
IN, OUT
USB
Type B
Display
Custom LCD
Power Supply
DC 9 V (AC adapter), or six AA alkaline batteries (sold separately)
Battery Life
Approx. four hours (with alkaline batteries)
Dimensions
(W) x (D) x (H)
556 x 231 x 73mm / 21.89″ x 9.09″ x 2.87″
Weight
2.0 kg/4.41 lbs. (without batteries and included microphone)
Accessories
AC adapter, Gooseneck Microphone,
Optional accessories
SC-micro MSG
Mobile Monitor Amplifier
MMA-130
It provides a DC9V output jack that can provide power to one of a number of Korg instruments like microKORG XL+)
