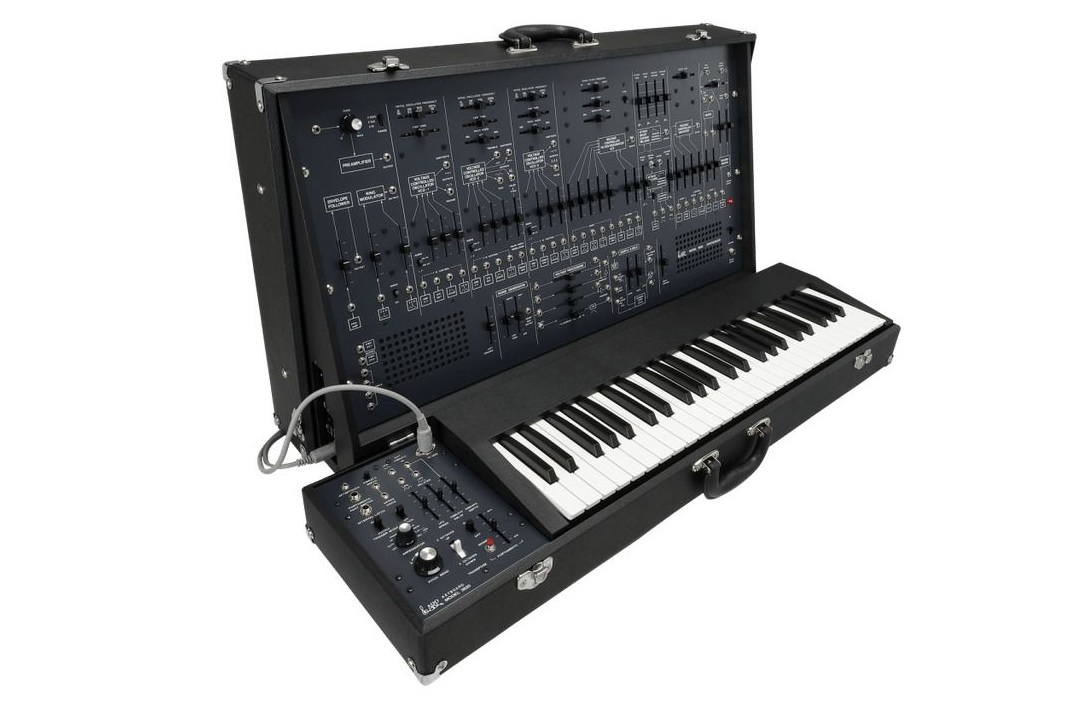

KORG ARP 2600 FS Semi-Modular Synthesizer

Rp58.000.000

SKU: KORG-ARP2600-FS Categories: , , Tags: ,

Description

Once, and for All

The ARP 2600 is brought back to life in a single, one-time-only production run. Now is your opportunity to own one of the most sought after and coveted instruments from the vintage synthesizer era. This limited-edition release is a loving reproduction of the 2600, handcrafted in Japan and includes USB and DIN-style MIDI connections, XLR audio outputs, plus the improved ARP 3620 Duophonic Keyboard with an added arpeggiator / sequencer. Your new ARP 2600 will arrive in a custom-branded hard shell case, complete with casters.

The Total Package

More than a synthesizer, the ARP 2600 is a complete sound design studio. Even today, the ARP 2600 stands as a bridge between the individual elements of modular synthesis and the immediacy of a production / performance instrument. Included are an ample supply of oscillators, envelopes, a filter and amplifier – all of the building blocks of analog synthesis. But the ARP 2600 goes even further, with a spring reverb tank and even a pair of built in monitor speakers. Also present is much of the versatility of a vintage modular system, including a ring modulation, lag and voltage processors, an envelope follower, audio preamp, a clock-able switch, noise source, a sample & hold module, signal inverters, an auxiliary mixer, and even a set of parallel-wired/multi jacks.



Normalled Pathways

Nearly every slider and switch on the ARP 2600 front panels is hard wired to specific control source. For example, the front panel controls allow the pitch of Oscillator 1 to be controlled by the keyboard (On/Off switch), the output of the Sample & Hold module (slider), the shape of the ADSR envelope generator (slider), and/or by the sine wave output of Oscillator 2 (slider), and each in varying amounts. These hardwired pathways provide massive amounts of immediate control that make excellent use of all the ARP 2600 has to offer, allowing the ARP 2600 to be played as is – no patching needed. In true modular fashion, inserting a patch cord into the jack associated with any hardwired control overrides that internal connection, letting you create a new signal path of your choosing. As a programming aid, the detailed panel graphics clearly show the available signal routings.

Patch Bay Precision

Unlike earlier modular synthesizers that relied on bulky 6.3mm (1/4″) jacks and patch cords, the ARP 2600 uses a more streamlined 3.5mm (1/8”) jack that allows for more patch points to occupy the same amount of panel space, delivering more options and more versatility. Most of the patch points are arranged in a single row below the controls of the individual sound modules. This arrangement keeps the main panel clear and unobstructed for tweaking the controls during performance. Needless to say, these patchable connections and the onboard processors can be used to interact with nearly any modular or Eurorack synthesizer system.

3620 Keyboard

While faithful to the original design, the functionality of the 3620 Keyboard has been greatly enhanced for this limited ARP 2600 release. The 3620 Keyboard contains 49 full-size keys, aftertouch, portamento, and is also duophonic, allowing two keys to be played at once – Single or Multiple Triggering is available. In addition, the duophonic keyboard can use an optional foot switch to lock the interval between any two notes, without retuning the oscillators during performance. Vibrato can be added via a dedicated circuit controlled by aftertouch, or by the onboard LFO (Low Frequency Oscillator), using any of three available waveforms. Most noticeable is the addition of a flexible Arpeggiator that allows a user-defined pattern to be manually sequenced and played back. Still present are the original Pitch Bend knob and the Two Octave Up / Two Octave Down Transpose switch. Connecting the keyboard to the main unit now uses a secure eight-pin din cable.

Processing Powerhouse

The ARP 2600 reveals its modular nature by the unique assortment of valuable, esoteric, and individually patch-able modules it contains. To begin, there are a set of parallel-wired Multiple jacks that enhance the patching possibilities – allowing the same control signal to be sent to multiple locations, for example. Three independent Voltage Processors provide scalable control voltages, or can act to attenuate any control signal. Use the Lag Generator to delay the start of any control signal. The Noise Generator is tunable to deliver White, Pink, and Low-Frequency noise, plus everything in between. A series of three Inverters can reverse the polarity of any signal. The Electronic Switch can be sync’d to either the internal clock or any external clock signal, as can the Sample & Hold rate. Most importantly, the ARP 2600 includes a dedicated Preamp and Envelope Follower for processing an external audio signal.




The Oscillators

ARP Voltage Controlled Oscillators (VCO) are extremely stable in their tuning. All three oscillators feature Initial Tuning and Fine Tuning sliders, and every oscillator can be designated as an LFO (Low Frequency Oscillator) modulating oscillator or as an audio oscillator. (Additional LFO modulation sources are available on the ARP 3620 keyboard; included.) Each oscillator generates multiple wave shapes at once. Available Waves include Sawtooth, Square, Triangle, Sine, and Pulse. The Pulse wave of Oscillator 2 and Oscillator 3 include a manual Pulse Width control, and Pulse Width Modulation is available on Oscillator 2. One audio oscillator can be used to modulate the frequency of another audio oscillator to create analog FM effects.



















The Filter

The ARP 2600 is equipped with a 4-pole Voltage Controlled Filter (VCF), offering a roll-off curve of -24dB per Octave. As with the oscillators, the ARP 2600 filter also offers a Fine Tuning slider. The addition of Fine Tuning allows precise and useful control of the pitch of a self-resonating filter. The input mixer stage of the VCF includes sliders for each Oscillator, the Noise Generator, and the output of the Ring Modulator. Over time, the ARP 2600 historically went through a number of changes; some were cosmetic, and some were more crucial to the sound. The Filter Type switch selects between a filter response more closely related to either earlier or later models of the ARP 2600.




















The Envelopes

Two Envelope Transient Generators (EG) are available on the ARP 2600. The first is a full four-stage Attack, Decay, Sustain, and Release Envelope. The second EG offers variable Attack and Release only. The Manual Start button allows the Envelopes to be retriggered at any time, without using the keyboard. The Envelope module also provides both Gate and Trigger outputs – ideal for patching into another analog modular or Eurorack system.

The Amplifier

In order to produce and output sound, the ARP 2600 relies on a Voltage Controlled Amplifier (VCA) to bring the output up to a suitable level. The Amplifier features both Linear and Exponential control inputs, and the Initial Gain setting provides continuous output at its highest setting.



















Over and Out
Following the VCA, the audio signal of the ARP 2600 passes through the Stereo Mixer section, the internal Spring Reverb tank, and on to the main outputs, the headphone jack, and the internal Left and Right speakers.

Plug and Play
The ARP 2600 is equipped with two low-impedance XLR outputs (Left and Right) for direct connection to a recording console or sound system – no direct boxes or line-matching transformers are required. A headphone output is also provided. MIDI is transmitted and received via old-school din-style IN, OUT, and THRU jacks, and also via USB. Three foot switch jacks (footswitches sold separately) on the 3620 Keyboard provide hands-free performance control over Portamento (On/Off or Momentary) and the Interval Latch. The front panel offers a Preamp input for processing another audio source.

SPECIFICATIONS



Operating temperature range
0 – +40 °C (non‐condensing)
Maximum Polyphony
2 voices for duo phonic; normally monophonic
VCO-1 (Voltage Controlled Oscilator 1)
Waveforms
Sawtooth, square
Frequency range
Approx. 0.03 Hz – 30 Hz (low freq. mode)
Approx. 10 Hz – 10 kHz (audio mode)
Voltage controlled response
1V/oct.
VCO-2 (Voltage Controlled Oscilator 2)
Waveforms
Sawtooth, pulse (dynamic pulse), triangle, sine
Frequency range
Approx. 0.03 Hz – 30 Hz (low freq. mode)
Approx. 10 Hz – 10 kHz (audio mode)
Pulse width
10% – 90%
Voltage controlled response
1V/oct.
VCO-3 (Voltage Controlled Oscilator 3)
Waveforms
Sawtooth, pulse (dynamic pulse)
Frequency range
Approx. 0.03 Hz – 30 Hz (low freq. mode)
Approx. 10 Hz – 10 kHz (audio mode)
Pulse width
10% – 90%
Voltage controlled response
1V/oct.
VCF (Voltage Controlled Filter)
Type
Low-pass (TYPE I : early 24 dB/oct., TYPE II: late 24 dB/oct.)
Frequency range
Approx. 10 Hz – 10 kHz
Resonance
1/2 – self oscillate
VCA (Voltage Controlled Amplifier)
Control voltage
AR type (internally connected)
ADSR type (internally connected)
Noise generator
Noise spectrum types (white and pink)
RING MODULATOR
Type
Analog multiplier
Input signal (Internally connected)
VCO-1 sawtooth wave, VCO-2 sine wave
SAMPLE & HOLD
Sampled signal
Noise (internally connected)
AUDIO OUTPUT JACKS
Front Panel (LEFT, RIGHT OUTPUT jacks
Connector
φ3.5 mm monaural phone jack
Maximum output level
+9 dBu @ 10 kΩ load
Output impedance
1.2 kΩ
Side Panel R
Connector
XLR端子
XLR connector
Maximum output level
+4 dBu @ 600Ω load
Output impedance
1.2kΩ
HEADPHONES JACK
Connector
φ6.3 mm stereo phone jack
Maximum output level
50 mW + 50 mW @ 33Ω load
Output impedance
20Ω
EXTERNAL AUDIO INPUT (PREAMPLIFIER INPUT) JACK
Connector
φ3.5 mm monaural phone jack
Maximum input level
−10 dBu
Input impedance
100kΩ
MIDI connector
IN, OUT, THRU
USB port
Type B

ARP 3620 (keyboard unit)

Keyboard
49-note (with aftertouch, no velocity sensitivity)
CV output voltage
UPPER VOICE
−3V–+10V, 1V/oct.
LOWER VOICE
−3V–+7V, 1V/oct.
LFO output voltage
TRIANGLE
±5 V, 10 Vp-p
SQUARE WAVE
+10 V, 10 Vp-p
DELAYED SINE WAVE
±3 V, 6 Vp-p
EXTERNAL VIBRATO input voltage
Max. ±10 V
VIBRATO DEPTH slider
Max. 1 octave
VIBRATO DELAY slider
0 – 2.5 sec
LFO SPEED slider
Approx. 0.25 – 25 Hz
PITCH BEND control
±1 octave
TRANSPOSE switch
±2 octave
PORTAMENTO SPEED slider
Maximum speed: about 0.25 msec/oct
Minimum speed: about 0.5 sec/oct
PORTAMENTO foot switch
KORG PS-1/PS-3 pedal switch
INTERVAL foot switch
KORG PS-1/PS-3 pedal switch
GATE output voltage (on ARP 2600 FS panel)
0 V at all keys up, +10 V at key on
TRIGGER output voltage (on ARP 2600 FS panel)
+10 V, 0.5 ms pulse wave at key on
Arpeggiator
OFF, AUTO, UP, DOWN, UP&DOWN, RANDOM, SEQ PLAY

General

Power supply
AC power supply terminal
Power consumption
30W
Dimensions (W × D × H), Weight
ARP 2600 FS
836 x 232 x 509 mm / 32.9 x 9.13 x 20.0 inches, 19.3 kg / 42.55 lbs.
ARP 3620
914 x 274 x 158 mm / 36.0 x 10.8 x 6.2 inches,11.3 kg / 24.91 lbs.
Included Items
Road case, Casters (x4), AC power cord, 8-pin DIN cable, 1,100 mm patch cables (x5), 600 mm patch cables (x5), Owner’s manual, Original English manual (replica)
Accessories (Sold separately)
KORG PS-1/PS-3 pedal switch
