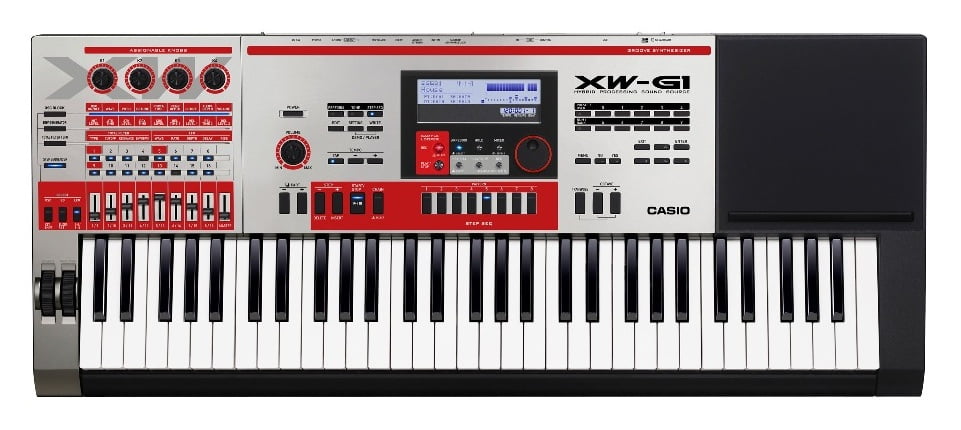

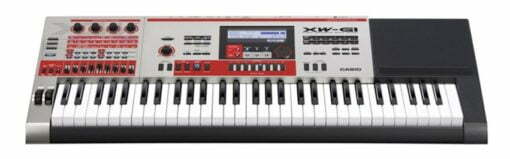

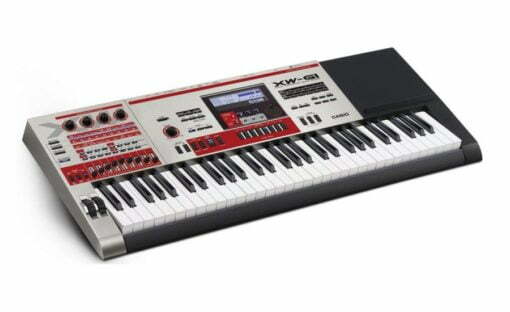

Casio XW-G1

Rp8.250.000

Description



Synthesizer

The XW-G1 groove synthesizer is designed for the DJ and club performer providing an interactive step sequencer and a sample looper for digitally capturing performance patterns and external instruments.

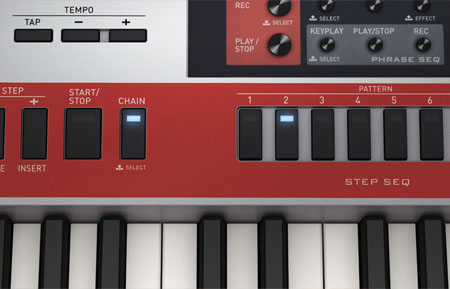

Step Sequencer

Providing everything from pulsing dance grooves to animated synth textures and arpeggios, the Step Sequencer is the first of its kind. With nine tracks for drums, basses, synths and chordal parts, four controller tracks for adding panning, filter changes and other animation to existing parts and eight patterns make up each sequence; the user can build and mix their performance on the fly. Sequences can even transpose live from the keyboard, providing a completely interactive experience.

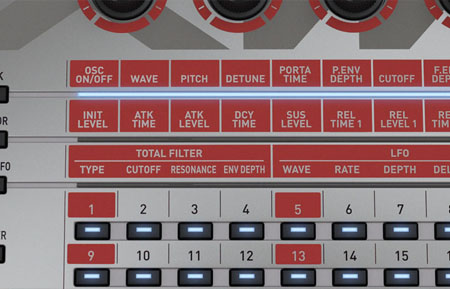

Solo Synth

Utilizing Casio’s exclusive (HPSS) Hybrid Processing Sound Source, a six oscillator monophonic solo synth is just one of the amazing sound engine in the XW-G1. The solo synth has the power to deliver classic analog sounds and sounds with an aggressive edge unlike anything else. Two virtual analog style oscillators, two PCM based oscillators, a noise oscillator and an external oscillator via mic and line inputs can be combined to make up a single solo synth tone. Each oscillator has an independent filter, envelopes, independent key tracking, portamento, two LFO’s and access to master resonant filter. With impressive modulation and control capabilities at your fingertips, the solo synth is capable of a wide range of sounds and expression.



Arpeggiator and Phrase Sequencer

The XW-G1 has powerful arpeggiators. In addition to typical arpeggio patterns, this arpeggiator can create polyphonic synth gated patterns, acoustic instrument emulations and is even fully programmable allowing you to create your own unique sounds. An additional phrase sequencer allows you to quickly capture any riff that you play on the keyboard and have it available on a front panel switch or triggered and transposed live from a range of notes on the keyboard. The combination of the Step Sequencer, Arpeggiator and Phrase Sequencer provides an endless array of sound possibilities.



Control

The XW-G1 has 4 realtime controller knobs, pitch bend and modulation wheels, along with 9 sliders to provide control over internal sounds and external devices. Through standard MIDI ports and with a class-compliant USB port the keyboard can be used as a controller for other instruments, including computer software and iPad® based software applications. It also includes an audio input allowing you to monitor an MP3 player, computer or other device without the need for a mixer.



Batteries

While the XW-G1 comes with a power supply it can also run on batteries, providing a truly mobile music making experience. You can now create music virtually anywhere.

Specifications

Keyboard61 standard-size keys
Touch Response2 types, off
Maximum Polyphony64 (1 to 32 for some tones)
Tones
  • 420 preset, 220 user
  • Solo Synthesizer(monophonic) : 100 preset, 100 user
  • PCM Melody : 300 preset, 100 user
  • PCM Drum : 20 preset, 10 user
  • User Wave : 10 *50 max. in SPLIT MODE
Solo Synthesizer Tones Edit
(monophonic)
  • Synth OSC1/ OSC2 Blocks : 766 Synth waves, filter, amp
  • PCM OSC1/ OSC2 Blocks : Oscillator(2,046 PCM waves*), Filter, amp
    *Including 763 Synth waves, 50 user waves, 5 Looper waves
  • External Input Sound Block : Pitch shifter, filter, amp
  • Noise Block : Noise generator, filter, amp
  • Total Block : Filter, Solo Synthesizer DSP
  • LFO Block 2 : Virtual controllers 8
Effects
  • Reverb: System reverb
  • Chorus: System chorus* *Except when using DSP or Solo Synthesizer tones.
  • DSP: 100 preset, 100 user, 53 types (46 normal, 7 Solo Synthesizer)
  • Master Equalizer : 4 bands
Performance Functions
  • Memories : 100 preset, 100 user
  • Zone : 4 (maximum)
  • Multi-function Key : 25
Step Sequencer
  • Sequence : 100 preset, 100 user
  • Maximum Steps : 16
  • Number of Tracks : 8 monophonic, 1 polyphonic, 4 control
  • Patterns : 8 types per sequence
  • Chains : 100 user
Phrase Sequencer
  • Phrase : 100 preset, 100 user
  • Track : 1
  • Playback Mode : One-time, loop
  • Memory Capacity : 8 KB / user phrase, 128 KB / 100 user phrases
  • Other : Overdubbing
Arpeggio100 preset, 100 user
SampleLooper
  • User Samples : 10 + 1 Temporary sample
  • Sampling Frequencies : 42 / 21 kHz
  • Sampling Channels : Stereo, monaural
  • Quantization : 16-bit
Mixer16 internal parts + externally input part
Other Functions
  • Transpose : ±1 octave (–12 to 0 to +12 semitones)
  • Octave Shift : ±3 octaves
  • Tuning : A4 = 415.5 – 440.0 – 465.9 Hz
MIDI16 multi-timbre received, GM level 1 standard
WheelsBender, modulation
Sliders9
Assignable Knobs4
Dial1
DisplayLCD with backlight
Demonstration Songs3
SD Memory Card Slots
  • Supported Cards : SDHC memory card (32 GB max.) or SD memory card
  • Functions : SMF playback, File storage, file recall, file delete, card format
Terminals
  • MIDI : MIDI IN / MIDI OUT / THRU
  • USB* : Type B
    * USB cable (A-B type) required to use USB terminal for computer connection.
  • SUSTAIN / ASSIGNABLE : Standard jack
    (sustain, sostenuto, soft, start / stop etc.)
  • PHONES : Stereo standard jack
  • LINE OUT : Standard jack (L/MONO for each), standard jack (R)
  • INST IN : Mono standard jack
  • MIC IN : Mono standard jack
  • AUDIO IN : Stereo mini jack
  • DC IN : 9.5 V
Power Supply
  • AC Adapter : AD-E95100L (included)
  • Batteries : 6 D-size alkaline batteries or zinc-carbon batteries
  • Battery Life : Approximately 35 hours
    (alkaline batteries, using headphones)
Dimensions (W x D x H)948 x 384 x 124 mm * Excluding music stand, and other projections
Weight5.4 kg (without batteries)
