KORG Profesional Arranger Keyboard Series
Rp13.750.000 – Rp42.000.000
The Pa300 is the latest keyboard in the KORG Pa series of internationally acclaimed and bestselling musical arrangers. It’s compact, inexpensive and powerful, with the most up-to-date collection of quality sounds and Styles. Using the built in Styles, you can quickly and easily play along with a backing band or even create your own music. The Pa300 is not only fun to play any time you like, but it’s the ideal way for people of all ages to write and perform music!
Sound quality is first-rate
It all begins with the sound. KORG sound quality is universally recognized as superior, and relied on by musicians around the world. First in its class, the Pa300 delivers an even richer, more detailed, sophisticated natural sound than ever before, with musical instruments from almost every genre brimming with depth, nuance, subtlety, accuracy and richness. Over 950 sounds are preloaded, including a renewed GM soundset, and 64 drum kits. There is also an amazing multilayer stereo acoustic piano, accurately sampled from a Concert Grand, which includes string and damper pedal resonance. *Sounds are fully editable and changes can be saved in the User area.
A full complement of Effects
Of course great sound is about more than the instruments. For many years, KORG has produced outstanding studio quality effects that are simply breathtaking. The Pa300 has 4 Stereo Master Effects processors, with 125 of these effects including standards such as Reverb, Delay and Chorus and some of the universally acclaimed REMS guitar based effects for authentic guitar tones. Each Track features an EQ with Low, Mid and High controls. A custom track EQ can be memorized in the general preferences for the Song Play mode. This will help adapting the sound to personal taste for any MIDI file you play. Need a lighter bass track? Save the right equalization, and the bass will stay light with all the subsequent Songs.
A final 4 band parametric EQ is added to the sound output of the Pa300. Everything can be processed by this powerful and musically refined EQ, easily adapting the sound to your musical taste or correcting a problematic live context.
Styles are professional quality
Matching this high sound quality, the Pa300 delivers a new set of deluxe Styles, programmed by some of the leading arrangers in the world; each one bringing unique musical strengths. The result is hundreds of preloaded Styles that provide unparalleled realism and detail. Covering an expanded range of musical genres, the Pa300 gives you Styles for almost every important occasion.
We add further realism to your performance with four Fills/ Breaks plus 3 Intros and 3 Endings. More flexibility is added by the choice of different transposition tables, and the stunning Guitar Mode 2 adds a totally new perspective to Style Guitar tracks. *If you require a special Style collection, simply record and edit your own Styles on board.
Composition support functions
Automatic accompaniment with rich, detailed realistic backing patterns (Styles) created by professional programmers from around the world will provide useful ideas for your arrangements. Simply play a chord progression and the Quick Record function will complete the basic backing tracks. The Pa300 is a simple but powerful composition tool for any musician!
Compact, yet powerful
The Pa300 is one of the easiest arrangers to carry around. But while its size might appear diminutive, it’s not the same with regard to the power of the onboard, exceptionally high-quality custom designed amplification system. The 2 x 13 Watt amplifiers drive the 2 loudspeakers in a bass-reflex box to generate a rich, powerful listening experience.
Easy to use
With all the technological power packed inside, it was vital that we also made the Pa300 easy to understand and easy to use. But even more, we wanted the entire user experience with the Pa300 to be an intuitive, musical, fast, fool proof process. The panel layout has been revised and our graphical user interface uses an amazing Graphical Color Touch Screen so you simply think, point and click for easy and intuitive use.
There are two interface modes so that a musician of any level can start making great music quickly: Easy and Expert. The Easy mode shows only the most important controls, while keeping a clean and straightforward interface, useful for beginners or playing live. Nothing stands between you and your professional performance. Of course, in Expert mode you have full editing control.
Your live performances will work the way you want, and when you do not remember where a file, a Song or a Style was saved, just use the Search function to let Pa300 find it for you.
Specifications
- Keyboard
- 61 keys
- Velocity sensitivity is supported
- System
- Upgradable Operating System
- RX (Real eXperience)
- Multitasking, Load while play feature
- Tone Generator
- 128 Voices, 128 Oscillators
- Filters with Resonance
- Three band EQ for each track
- Effects
- Up to 4 Stereo Digital Multi-Effect block systems
- 125 Master Effect types
- Master 4 band Parametric EQ
- Sounds / Drum Kits
- Factory:
- More than 950, including Stereo Piano and GM2 sound compatibility
- 64 Drum Kits
- Full Sound and Drum Kit editing capability
- User:
- 256 Sounds
- 128 Drum Kits
- Styles
- Factory:
- More than 310 Preload Styles
- Full Style editing capability
- User:
- Up to 1,040 available Style locations including the Favorite/User banks
- Structure:
- Eight Style tracks, 4 Single Touch Settings, 4 Pads, and one Style Performance per Style
- Style Controls:
- 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Auto fill, Synchro Start/Stop, Tap Tempo/Reset, Manual Bass, Bass Inversion, Memory, Accompaniment On/Off, Kick & Snare Designation
- Style Others:
- Guitar Mode 2, Parallel and Fixed NTT
- Performance / STS
- 240 Keyboard Performance locations, My Setting special Performance
- STS:
- Memorize Keyboard tracks – Up to 4 x 1040 Styles, up to 4 x SongBook entries
- Keyboard Tracks
- Four Keyboard tracks (Upper 1, 2, 3, Lower)
- Pads
- 4 Pad tracks + Stop button Full Pad editing capability
- Full Pad editing capability
- Song Play
- Player with select, Start/Stop, Home, Rewind and Fast Forward controls
- Jukebox function – Compatible with SMF (format 0 and 1) and MP3 – Lyrics (compatible with CGD), Score
- MP3 Player
- MP3 Player
- Transpose (+6/-5 semitones)
- Tempo change (±30%)
- Sequencer
- Quick Record (Backing Sequence)
- Multitrack and Step Record functions – Full-featured sequencer – 16 tracks – Up to 100,000 events
- SMF format
- SongBook
- Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes – User-definable custom lists – Filtering options
- Search
- Style, Song, Performance, SongBook, Sound and Lyrics TXT
- Compatibility
- “i-Series” models: Styles
- “Pa series” model Style, Performance, Sound, Song, SongBook, Pad
- General Controls
- Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble, Upper Tracks Octave Transpose, Master Transpose, Tempo Lock, Quarter Tone Arabic Scale, User Scale memorized inside Performance/STS, Search, Lyrics, Score, Dial, Tempo, Metronome, Split, Joystick
- Connections
- Control Inputs:
- Assignable Pedal/Footswitch (Damper)
- Headphone/
Outputs: - Unbalanced Stereo Jack
- MIDI
- USB to MIDI using the USB Device port – 8 user definable MIDI Presets
- USB
- USB-MIDI Interface
- Type A (TO DEVICE): 1 (Rear)
- Type B (TO HOST): 1 (Rear)
- 2.0 Hi Speed connections
- Mass Storage
- USB Memory Stick
- Display
- Color TouchView™ 5” (480 x 272 dots) TFT display
- Speaker System
- Amplification:
- 13 W x 2
- Speakers;
- 10 cm x 2 Double Cone Speakers in Bass Reflex Box
- Power
- Power Supply:
- AC 100-240 V
- Power Consumption:
- 18 Watt
- Dimensions
(W x D x H) - 1,030 x 378.3 x 127 mm / 40.55 x 14.89 x 5.00 inches (without music stand);
- Weight
- 8.35 kg / 18.41 lbs
- Accessories
- Quick Guide, Music Stand, External Power Supply Adapter and Power Cable
- Options
- EXP-2 – Expression/Volume Pedal
- XVP-10 – Professional Expression/Volume Pedal
- DS-1H – Damper Pedal
- PS-1/PS-3 Switch Pedal

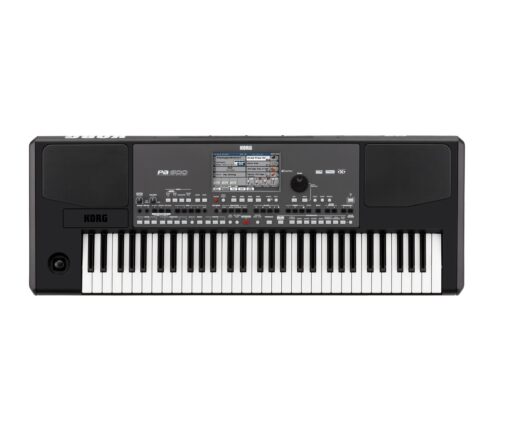

The Pa600 is a brilliant Professional Arranger that distills the sonic essence and functionality of the Pa series into a compact and affordable new instrument. Like its big brothers – the Pa800 and the Pa3X – the Pa600 uses our RX (Real eXperience) and DNC (Defined Nuance Control) technology to deliver sound quality that’s unprecedented in an arranger keyboard. With its new compact cabinet, large TFT color TouchView display, enormous factory and user PCM memory, huge style database and excellent amplification system, Korg has raised the standard of excellence in the entry-level price range. Listen and Believe.
Stunning Sound
With 50 years of experience, Korg has consistently set the bar for sound quality in performance instruments, and have been relied on by musicians around the world all the while. The Pa600 gives you a rich, detailed, natural sound with instruments from almost every genre; exploding with depth, subtlety, and accuracy. With DNC (Defined Nuance Control) and RX (Real eXperience), you can add easily-controlled natural sounds and gestures that are part of playing a real instrument, such as guitar fret noise, horn glissandos, and mechanical key sounds. Over 950 expressive sounds are included, including a refreshed GM sound set and 64 drum kits. There is also an amazing multilayer stereo acoustic piano that was accurately sampled from a Concert Grand, and includes String and Damper pedal Resonance. Sounds are fully customizable to your tastes, and your changes can be saved for fast locating and use in your performances.
One very exciting feature added to the Pa600 is the option of purchasing musical sounds and styles from different regions around the world. 96MB of dedicated memory allows many instruments to be added to the Pa600 sound engine, and used with styles that were developed to represent many of the popular musical styles of certain countries. Full details on the available options can be found at shop.korg.com/pa
Enhancing Effects
Great sound is more than just the quality of the PCM. For many years, Korg has produced outstanding studio quality effects that are simply breath-taking. The Pa600 has four Stereo Master Effect processors with 125 of these effects including standard FX such as reverb, delay and chorus as well as some of the universally acclaimed REMS guitar-based effects for authentic guitar tone.
Each Track features EQ with Low, Mid and High controls. A custom track EQ can be memorized in the general preferences for the Song Play mode. This will help sculpt the sounds to your personal taste for any MIDI file you play. Need a lighter bass track? Save the desired equalization, and the Bass will stay light with all the subsequent Songs.
A limiter and final 4-band parametric EQ, have been added to the sound output of the Pa600. Everything can be processed by this powerful and musically refined EQ, easily adapting the sound to your musical taste or adjusting sound in problematic live environments.
Styles
The Pa600 delivers a new set of great-sounding and and vibrant styles, programmed by some of the leading arrangers in the world, highlighting their unique musical strengths. The result is hundreds of included Styles that provide unparalleled realism and detail. Covering an expanded range of musical genres, the Pa600 provides styles for almost every occasion. If you require a special Style collection, simply record and edit your own styles on board.
We add further realism to your performance with four Fills, Break, three Intros and three Endings. More flexibility is added by the choice of different transposition tables to suit any instrument characteristic, and the stunning Guitar Mode 2 adds a totally new perspective to how realistic Guitar tracks can sound. If you need both hands to play a solo passage, record your chord sequence and let the Pa600’s Chord Sequencer play it for you.
Compact, yet powerful
The Pa600 is one of the easiest arrangers to carry around. While its size might appear compact, the power of the onboard, exceptionally high-quality custom designed amplification system is anything but small. The 2 x 15-watt amplifiers drive two loudspeakers in a bass-reflex box to generate a powerful listening experience.
Play any song, and view it as traditional music notation
The player on board the Pa600 can read MIDI, KAR and MP3 files. It can also read lyrics and chords from most of these files, and add markers on-the-fly to MIDI files. Traditional score viewing is also available for those who prefer to read music.
The Score Viewer displays the lead track (or any other track) as clear and plain traditional musical notations with notes or chords, together with lyrics and chord abbreviations. Chord names can also be seen in different languages (English and Italian). For music learners, we also added a function to show note names next to each note.
Easy to use
With all the technological power that’s packed inside, it was vital that we also made the Pa600 easy to understand and use. Your experience using the Pa600 should be intuitive, musical, fast and foolproof. The panel layout has been simplified, and the gorgeous color TouchView Display lets you simply think, point and click for easy and intuitive navigation and performance.
So that musicians of all levels can make great music quickly, there are two interface modes: Easy and Expert. Easy mode shows only the most important controls while keeping a clean and straightforward interface, useful for beginners or playing live, while in Expert mode, you have full editing control. Nothing stands between you and a stellar performance.
Switches are assignable so your live performances work the way you want, and when you don’t remember where a file, song or style was saved, just use the Search feature to let the Pa600 find it for you.
SongBook
This exciting feature was developed to make your life easier while playing live. The SongBook is a Musical Database that’s completely user programmable, containing all the settings needed to play a particular song. You only have to search for the title of the song you would like to play, select it and hit “Play”. The SongBook can use styles, MIDI files, or MP3s, and can immediately recall settings such as Song Title, Genre, Artist, Tempo, Volumes, Sounds, Muted Tracks, FX settings, Easy Edit, STS*, Master Transpose and more. Everything that you need to play your song perfectly is in the SongBook; a useful musical feature that is unique to Korg.
With the SongBook Editor you can easily view, create and edit your KORG Pa-Series SongBook entries and custom lists using a Windows based computer.
Specifications
Model
- 2 versions
- “Pa600 – Standard”
“Pa600QT -Quarter Tone”
Keyboard
- Keyboard
- 61 keys with Velocity
Sounds
- Factory
- More than 950 (including Stereo Piano and GM 2 Sounds)
64 Drum Kits
- Pa600QT comes preloaded with Sounds and Styles to suit a variety of Middle Eastern music tastes including Persian, Arabic and Turkish.
- User
- 256 Sounds
128 Drum Kits
- Tone Generator
- 128 Oscillators (max polyphony 128 voices) – Filters with Resonance
- PCM User Memory
- 96 MB
Styles
- Factory
- More than 360 preloaded Styles, freely reconfigurable
- User
- Up to 1,200 available Style locations including the Favorite/User banks
- Structure
- Eight Style tracks, 4 Single Touch Settings and one Style Performance per Style
- Style controls
- 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Autofill, Synchro Start/Stop, Tap Tempo/Reset, Manual Bass, Bass Inversion, Memory, Accompaniment Mute, Snare & Kick Designation, STS Mode – Chord Sequencer
- Others
- Guitar Mode 2
Parallel and Fixed NTT, Style Record with Step Record, Track and Event Edit functions
- Effect
- Effects & EQ
- 4 Stereo Master FX / 125 Effects types
Three band EQ for each track – Articulations
Limiter – Master 4 band Parametric EQ
- Others
- Dynamic Nuance Control (DNC) Technology
Full editing of Sounds and Drum Kits
Realtime sound control using Assignable Switches
- Controllers
- Joystick – 2 Assignable Switches
- User Sampling
- No Exist
- Performance/STS
- 320 Realtime Performance locations
STS: Memorize Realtime tracks
Up to 4 x Styles, up to 4 x SongBook entries
My Setting special Performance
- Realtime Tracks
- Four Keyboard tracks (Upper 1, 2, 3, Lower)
- Pads
- 4 Pad tracks + Stop button – Pad Record
- Song Play
- Single Player with Select, Start/Stop, Home, Rewind and Fast Forward controls
Jukebox function – Compatible with SMF (formats 0 and 1) and MP3 with Vocal Remover –
Lyrics (compatible with CDG), Score, Marker
- Display
- 7” 800 x 480 TFT Graphical Color TouchView
- Sequencer
- Quick Record (Backing Sequence), Multitrack and Step Record functions
Full featured sequencer – 16 tracks – Up to 100.000 events – SMF format
- Song Book
- Fully programmable music database, based on Styles, SMF, Karaoke, MP3 with automatic selection of Style Play and Song Play modes – User-definable custom lists – Filtering options
- Search
- Yes for Style, Song, Performance, SongBook, Sound and Lyrics TXT
- Compatibility for Sound Data
- “i-Series”: Styles only
“Pa series”: Style, Performance, Sound, PCM, Song, SongBook and Pad
- General Controls
- Master Volume, Real Time-Acc/Seq Balance Volume, Ensemble, Octave Transpose,
Master Transpose, Fade In/Out, Tempo Lock, Style Change – Quarter Tone Arabic Scale,
User Scale memorized inside Performance/STS, Search, Lyrics, Score, Maker, Dial, Tempo, Metronome, Split
- Connections
- Control Inputs
- Damper Pedal, Assignable Pedal/Footswitch
- Line Out
- Unbalanced Jack Left/Mono, Right, Headphones
2 Unbalanced Line In Jacks
- MIDI
- In, Out MIDI connectors – USB to Midi using the USB Device port Individual track assignment – 8 user definable MIDI Preset
- USB
- Type A (TO DEVICE) x 1: 2.0 Hi Speed Type B (TO HOST) x 1: 2.0 Hi Speed
- Speaker System
- Amplification
- 15W x 2
- Speakers
- 100 mm x 2 Double Cone Speakers in Bass Reflex Box
Power
- Power Supply
- AC 100-240 V
- Power Consumption
- 20 Watt
- Dimensions
(W x D x H) - 1,030 x 378 x 127 mm (without music rest)
- Weight
- 11 kg (without music rest)
- Accessories
- Owner’s Manual, Music Stand, AC Cable
- Options
- Expression/Volume Pedal (KORG EXP-2, KORG XVP-10)
Damper Pedal (KORG DS-1H)
Switch Pedal (KORG PS-1, PS-3)
KORG debuts the newest High Performance Arranger in the acclaimed Pa-Series of Professional Arrangers, the Pa700. The Pa700 has plenty of new sounds (featuring Defined Nuance Control for enhanced realism) which keep performances fresh and exciting, as well as an enormous expanded range of styles covering music genres from all over the world. Combine this with powerful performance functionality, an intuitive user interface, and rich, sculpted sound, and you have an Arranger for the most discerning and demanding player.
Totally new is the addition of KAOSS FX, which give you creative control on your performance. From subtle morphing between Variations and Drum Kit types, fine mixing between accompaniment Sounds, live reshaping of ongoing rhythms, to the most radical note-crunching effects used by countless DJs, tape delay and arpeggios, you can add ‘liquid mixing’ to any Style or MIDI Song with the aid of easy-to-use computer-assisted composition features. Push the boundaries of your musicality!
With more power than ever before and numerous long-awaited new features, the Pa700 sets a new standard for arranger workstations. A massive leap forward from the legendary and best selling Pa600, KORG has raised the bar of excellence by offering newer, even more realistic sounds and powerful new features, delivered in a slim and professional looking design, at an even more affordable price.
Specifications
- Keyboard
- 61 keys (C2 – C7) with velocity
- System
- Upgradable operating system, Multitasking, Load while play
- Sound Generator
- EDS-X (Enhanced Definition Synthesis – eXpanded)
Filters with resonance, 3-band EQ on each Sound
- Polyphony
- 128 voices, 128 oscillators
- Effects
- Accompaniment/Song: 2 insert effects; 2 master effects (148 types)
Keyboard Sounds: 1 insert effect; 2 master effects (148 types)
Final mastering effects: Limiter, Master EQ
Voice Processor: 5 FX, 28 Factory, 64 User Presets
Guitar Processor: 3 FX, 45 Factory, 64 User Presets
- Sounds / Drum Kits
- Factory: More than 1,700 Factory Sounds including a multilayer Stereo Piano with damper and body resonance, GM/XG sound sets and 106 Drum Kit
User: 512 Sounds, 256 Drum Kits
Digital Drawbars: 9 footages, percussion, key on/off, leakage, rotary speaker effect
DNC (Defined Nuance Control) Technology, Natural Ambience Drums
Full Sounds/Drum Kits editing
- Sampling
- 128 MB compressed (equivalent to 256 MB linear data);
Loads KORG, WAV, AIFF and SoundFont™ formats
Saves KORG, WAV and AIFF formats
Full Edit, Time Slice
- Styles
- Factory: More than 370 Factory Styles, freely reconfigurable sets
User: 1,152 locations, including User and Direct banks
Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style;
Style Settings (Sounds and Arranger parameters) on each Style
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style/Pad Record with Step Record, Track and Event Edit
Style Creator Bot (MIDI Song to Style Converter)
Style controls: 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set Mode
- Chord Sequencer
- Chord Sequence recorder and player in Style Play mode
Chord Sequences can be saved to Style and SongBook Entries
Edit functions: Delete, Copy from Style/SongBook, Import/Export from/to SMF
- Keyboard Set Library
- Memorize Keyboard Sound settings
Factory: More than 290 Factory Keyboard Sets, freely reconfigurable
User: 864 locations, including User and Direct banks
‘My Setting’ special Keyboard Set
- KAOSS FX
- Automatic MIDI FX generator
More than 65 Factory Presets
- Song Play
- Supported formats: MID, KAR, MP3+Lyrics, MP3+G
Select, Start/Stop, Home, Rewind and Fast Forward controls
Lyrics, Score, and Chord data can be displayed on screen, or on an external video monitor
Markers with Add, Delete, Edit and Loop functions
Jukebox function
- MP3 Player / Recorder
- MP3 Player and Recorder
Transpose (+6/-5 semitones), Tempo change (±30%)
Vocal Remover
Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, and KAOSS Effects
- Sequencer
- Quick Record (Backing Sequence), Multitrack and Step Record functions
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format
- SongBook
- Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes
User definable Set Lists, with Entries selectable from the control panel
Filtering and sorting options
- Compatibility
- Pa-Series models: Styles, Performances, Programs/Sounds, Songs, SongBook Entries, Pads ‘i-Series’ models: Styles
- Pads
- Four Assignable Pads + Stop buttons
Pad Record function
- General Controls
- Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Joystick, 2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, Tempo
Lock; Metronome On/Off, Dial, Search, Shift Split, Record
- Scale Controls
- Virtual Quarter Tone SubScale Keypad, 4 x Scale Presets
- Control Inputs
- Damper pedal (supports half-pedaling with the optional DS-1H pedal)
Assignable pedal/switch
- Audio Inputs
- Line (Left/Right): 1/4” jacks, +20dBm, 12k Ohm
Mic/Guitar (Left): 1/4” jack, with Gain control (0 — +40dB)
12k ohm (Mic) / 500k ohm (Guitar)
- Audio Outputs
- Left/Right, 1/4” jack, +21dBm, 0.003% THD+N@+18dBm
Headphone output (1/4” jack), 16-200 Ohms (50 Ohms suggested)
- Speaker System
- Amplification: 2 x 25W
Speakers: 2 x Dual Cone Speakers in Bass Reflex Box
- MIDI
- IN, OUT standard MIDI connectors
USB to MIDI using the USB ports
HOST: memory and controllers, DEVICE: personal computers
Eight user definable MIDI Setups
- USB
- Type A (Host), Type B (Device)
2.0 Hgh-Speed connections (480 Mbit/s). Low-Speed (1.5 Mbit/s) and Full-Speed (12 Mbit/s) devices can only be connected through a High-Speed USB hub.
- Storage
- Internal memory: 960 MB
USB external drives (drive not included)
microSD card (not included); rear panel slot with plastic cover
- Display
- 7” Wide capacitive color TouchView™ TFT display
- Video Out
- HDMI connector
- Clock
- Internal System Clock
- Power Consumption
- 100-240 Volts, 50/60 Hz, 25 Watt normal / < 0.3 Watt in standby
- Dimensions (W x D x H)
- 1030 x 378.3 x 132 mm/40.55″ x 14.89″ x 5.2″ (without music stand; height with music rest: 355.8 mm / 14”)
- Weight
- 9.9 kg/21.82 lbs
- Included Items
- AC Power Cable, Music Stand, Quick Guide manual
- Accessories
- EXP-2 Foot Controller, XVP-10 Expression/Volume Pedal
DS-1H Damper Pedal (supports half-pedal)
PS-1, PS-3 Pedal Switch
VOX V860 volume pedal

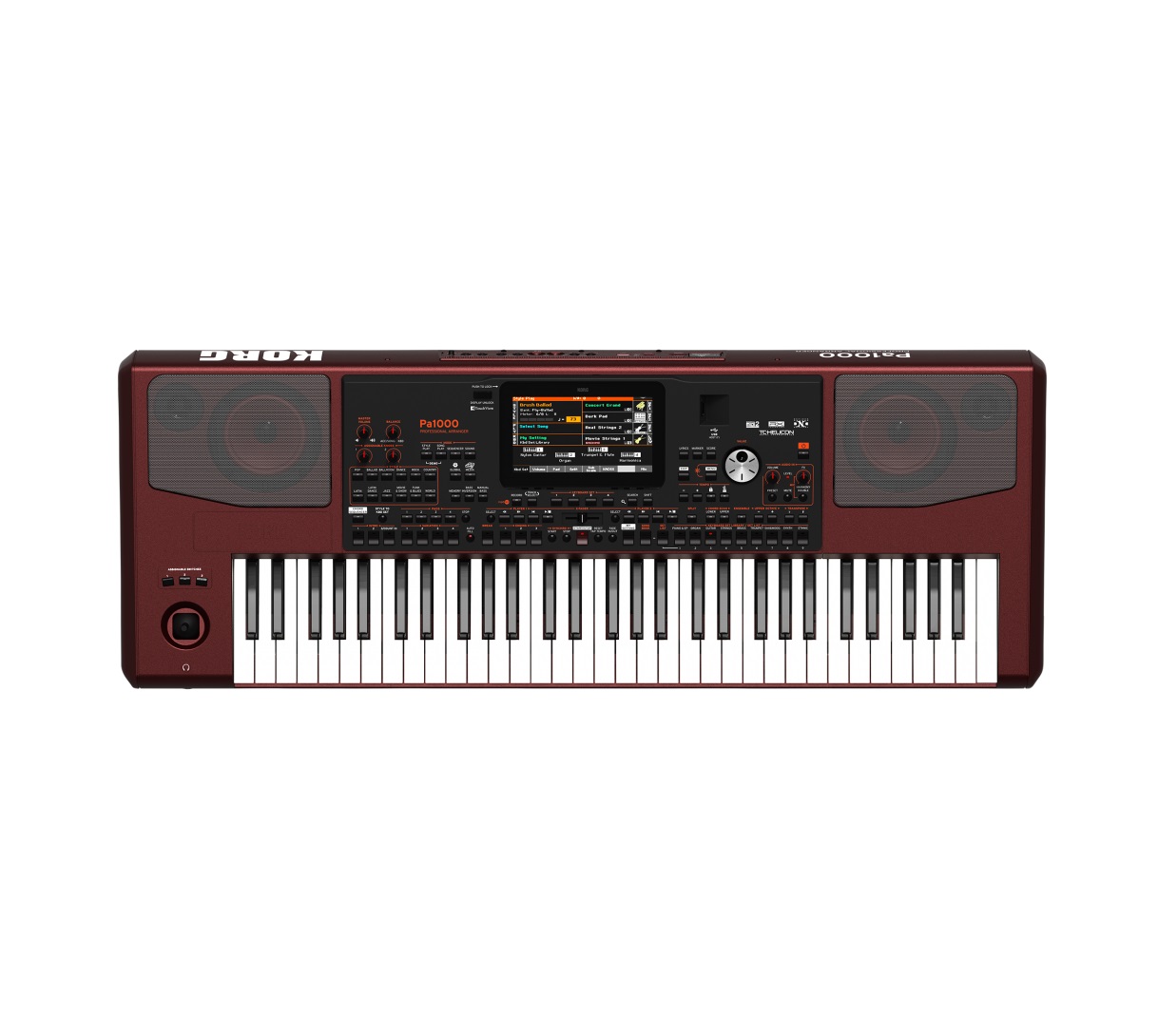

KORG debuts the newest High Performance Arranger in the acclaimed Pa-Series of Professional Arrangers, the Pa1000. The Pa1000 has plenty of new sounds (featuring Defined Nuance Control for enhanced realism) which keep performances fresh and exciting, as well as an enormous expanded range of styles covering music genres from all over the world. Combine this with powerful performance functionality, an intuitive user interface and rich, sculpted sound and you have an Arranger for the most discerning and demanding player.
The Pa1000 sound engine uses four times the PCM memory of the best-selling Pa900 and extends the amount of User PCM memory to 600MB using compression. The number of User Style locations has also expanded to a maximum of 1,152 which will cover almost every style imaginable. The improved built-in speaker system produces a strong, full-bodied sound that’s enhanced by standard features such as the TC Helicon Vocal Harmonizer, a Dual MP3 player & recorder, and the Dual Crossfade Sequencer. Video output is standardized, so your audience can sing along to the onscreen lyrics. The Pa1000 packs all this in a high‐quality case with aluminium inserts in the side-panels of an elegant chassis to provide a prestigious look on any stage!
Totally new is the addition of KAOSS FX, which give you creative control on your performance. From subtle morphing between Variations and Drum Kit types, fine mixing between accompaniment Sounds, live reshaping of ongoing rhythms, to the most radical note-crunching effects used by countless DJs, tape delay and arpeggios, you can add ‘liquid mixing’ to any Style or MIDI Song with the aid of easy-to-use computer-assisted composition features. Push the boundaries of your musicality!
With more power than ever before and numerous long-awaited new features, the Pa1000 sets a new standard for arranger workstations. A massive leap forward from the legendary and best selling Pa900, KORG has raised the bar of excellence by offering newer, even more realistic sounds and powerful new features, delivered in a slim and professional looking design, at an even more affordable price.
Specifications
Keyboard
61 semi-weighted keys (C2 – C7) with velocity and aftertouch
System
Upgradable operating system, Multitasking, Load while play
Sound Generator
EDS-X (Enhanced Definition Synthesis – eXpanded)
Filters with resonance, 3-band EQ on each Sound
Filters with resonance, 3-band EQ on each Sound
Polyphony128 voices, 128 oscillators
Effects
- Accompaniment/Song:
- 2 insert effects; 2 master effects (148 types)
- Keyboard Sounds
- 1 insert effect; 2 master effects (148 types)
- Final mastering effects
- Limiter, Master EQ
- Voice Processor
- EQ, Compressor, Gate, 3-voice Harmonizer (or Double), 2 x FX. Harmonizer, Double: Technology by TC•Helicon®
- Presets
- More than 30 Factory, 64 User
- Guitar Processor
- 3 x FX. Presets: 45 Factory, 64 User
Sounds / Drum Kits
- Factory
- More than 1,750 Factory Sounds, including two multilayer Stereo Pianos with damper and body resonance, GM/XG sound sets and 107 Drum Kits
- User
- 512 Sounds, 256 Drum Kits
- Digital Drawbars
- 9 footages, percussion, key on/off, leakage, rotary speaker effect
- DNC (Defined Nuance Control) Technology, Natural Ambience Drums Full Sounds/Drum Kits editing
Sampling
- User PCM Sample memory
- 300 MB compressed (equivalent to 600 MB linear data)
- Loads KORG, WAV, AIFF and SoundFont™ formats
Saves KORG, WAV and AIFF formats
Full Edit, Time Slice, Sampling
Styles
- Factory
- More than 430 Factory Styles, freely reconfigurable sets
- User
- 1,152 locations, including User and Direct banks
- Eight Accompaniment tracks, 4 Keyboard Sets, 4 Pads per Style; Style Settings (Sounds and Arranger parameters) on each Style
Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
Style/Pad Record with Step Record, Track and Event Edit
Style Creator Bot (MIDI Song to Style Converter)
- Style controls
- 3 Intros, 4 Variations, 4 Fills, Break, 3 Endings, Synchro Start, Synchro Stop, Tap Tempo/Reset, Bass Inversion, Auto Fill, Manual Bass, Memory, Accompaniment Mute, Drum Mapping, Snare & Kick Designation, Style to Keyboard Set Mode
Chord Sequencer
- Chord Sequence recorder and player in Style Play mode
Chord Sequences can be saved to Style and SongBook Entries
- Edit functions
- Delete, Copy from Style/SongBook, Import/Export from/to SMF
Keyboard Set Library
- Memorize Keyboard Sound settings
- Factory
- More than 300 Keyboard Sets, freely reconfigurable
- User
- 864 locations, including User and Direct banks
- ‘My Setting’ special Keyboard Set
KAOSS FX
Automatic MIDI FX generator
More than 65 Factory Presets
More than 65 Factory Presets
Song Play
- Patented XDS Crossfade Dual Sequencer Player with X-Fader control
- Supported formats
- MID, KAR, MP3+Lyrics, MP3+G
- Two Players with separate Select, Start/Stop, Home, Rewind and Fast Forward controls
Lyrics, Score, and Chord data can be displayed on screen, or on an external video monitor
Markers with Add, Delete, Edit and Loop functions
Jukebox function
MP3 Player / Recorder
Double MP3 Player and MP3 Recorder
Transpose (+6/-5 semitones), Tempo change (±30%)
Vocal Remover
Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, KAOSS Effects
Transpose (+6/-5 semitones), Tempo change (±30%)
Vocal Remover
Records MP3 files, including Styles, MIDI Songs, MP3 Songs, Keyboard Sounds, Pads, Microphone, Guitar, Effects, KAOSS Effects
Sequencer
Quick Record (Backing Sequence), Multitrack and Step Record functions
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format
Full-featured sequencer, 16 tracks, Up to 200,000 events, SMF (MID) native format
SongBook
Fully programmable music database, based on Styles, MIDI Songs (MID and KAR files), MP3 Songs, with automatic selection of Style Play and Song Play modes
User definable Set Lists, with Entries selectable from the control panel
Filtering and sorting options
User definable Set Lists, with Entries selectable from the control panel
Filtering and sorting options
Compatibility
- Pa-Series models
- Styles, Performances/Keyboard Sets, Programs/Sounds, Songs, SongBook Entries, Pads
- ‘i-Series’ models
- Styles
Pads
Four Assignable Pads + Stop buttons
Pad Record function
Pad Record function
Controls
Master Volume, Fade In/Out, Keyboard-Acc/Song Balance, Ensemble, Octave Transpose, Master Transpose, Quarter Tone and Arabic Scale memorized inside Keyboard Sets, Joystick, Audio In Volume, Mic FX Level, Harmony/Double On/Off, Mic/Guitar Preset, Audio In Mute ,2 Assignable Knobs, 3 Assignable Switches, Tempo +/-, Tempo Lock, Metronome On/Off, Dial, Search, Shift, Chord Scan (Lower, Upper), Split, Track Select, Record
Virtual Quarter Tone SubScale Keypad, 4 x Scale Presets
Virtual Quarter Tone SubScale Keypad, 4 x Scale Presets
Control Inputs
Damper pedal (supports half-pedaling with the optional DS-1H pedal)
Assignable pedal/switch
Assignable pedal/switch
Audio Inputs
- Line (Left/Right)
- 1/4” jacks, +20dBm, 12k Ohm
- Mic/Guitar (Left)
- 1/4” jack, with Gain control (0 — +40dB)
12k Ohm (Mic) / 500k Ohm (Guitar)
Audio Outputs
- Left/Right
- 1/4” jack, +21dBm, 0.003% THD+N@+18dBm
- Headphone output
- 1/4” jack, 16-200 Ohms (50 Ohms suggested)
Speaker System
- Amplification
- 2 x 33 W
- Speakers
- 2 x 100 mm woofers in bass reflex box, 2 x 25 mm dome tweeters
MIDI
- IN, OUT
- Standard MIDI connectors
- USB to MIDI using the USB ports
Eight user definable MIDI Setups
USB
- Type A
- HOST, for memory and controllers x 2 (front/rear)
- Type B
- DEVICE, for personal computers and tablets x 1 (rear)
- 2.0 Hgh-Speed connections (480 Mbit/s).
Storage
- Internal memory
- 960 MB
- USB external drives (drive not included)
microSD card (not included); rear panel slot with plastic cover
Display
7” Wide capacitive color TouchView™ TFT display – Manual tilt system
Video Out
HDMI connector
Clock
Internal System Clock
Power Consumption
100–240 Volts, 50/60 Hz, 25 Watt normal / 0.3 Watt in standby
Dimensions (W x D x H)
1030 x 378.3 x 133 mm / 40.55″ x 14.89″ x 5.36″ (without music stand; height with music rest: 355.8 mm / 14”)
Weight
10.75 kg / 23.7 lbs
Included Items
AC Power Cable, Music Stand, Quick Guide manual
AccessoriesEXP-2 Foot Controller, XVP-10 Expression/Volume Pedal
DS-1H Damper Pedal (supports half-pedaling)
PS-1, PS-3 Pedal Switch
VOX V860 volume pedal
