The Quintet Story
Nothing demonstrates Ortofon’s long-standing resilience more than its commitment to the refinement of analogue sound quality and its continued development of new cartridge models. Since 1948 Ortofon has introduced about 100 different Moving Coil models. We believe the cartridges in this new series are more than worthy successors to the long line of models that has made Ortofon the global leader in the manufacture and supply of phono cartridges.
The MC Quintet Series is a direct result of our continued research and innovation
The MC Quintet Series is congruent with Ortofon’s unrelenting commitment to providing the most precise and accurate reproduction possible without coloration:
- A special ABS (Acrylonitrile/Butadiene/Styrene) thermoplastic material is used for manufacturing of the body. This light-weight, impact resistant material is very suitable for injection-moulding and provides a very durable scratch resistant surface.
- Neodymium magnets are implemented to achieve an optimal output.
- Low internal impedance makes the cartridge less sensitive to load and therefore ensures compatibility with the widest range of preamps and transformers.
It is our aim to bring our customers many hours of new and surprising experiences in listening to their precious vinyl collection.
Each of the five Quintet Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:
- MC Quintet Mono is a true mono cartridge for playing mono microgroove vinyl records
- MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
- MC Quintet Blue adds more dynamics and resolution, sounds more open and reproduces more details
- MC Quintet Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements

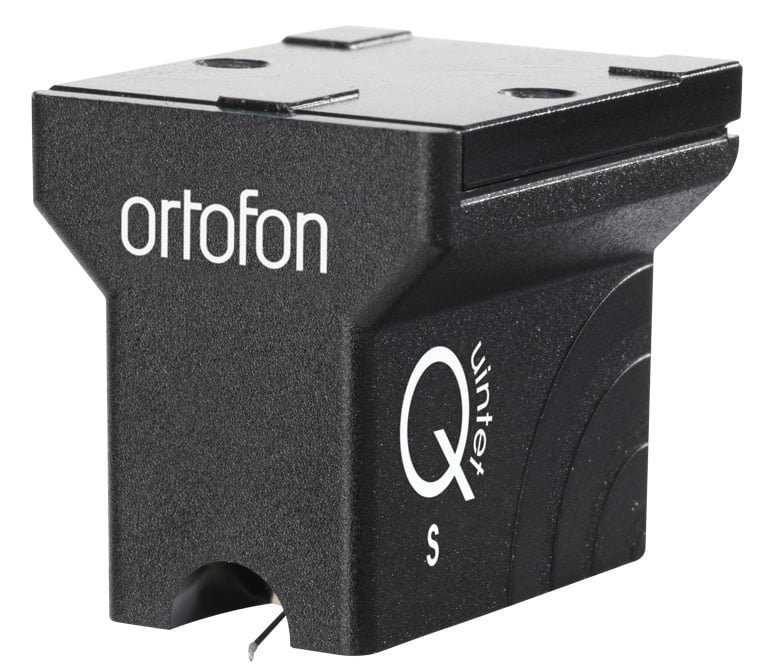

- MC Quintet Black S is the best of everything, true to the groove with resolution and accurate insight into each recording

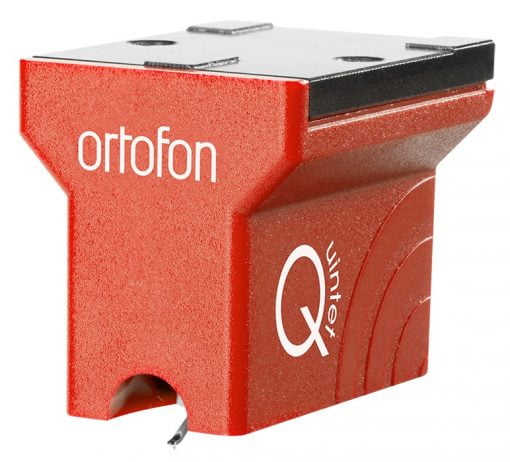

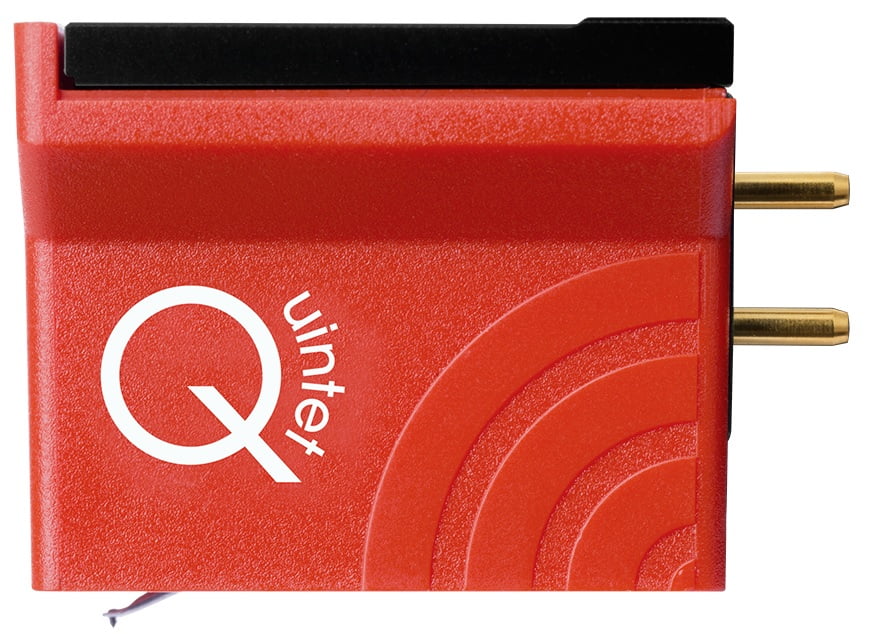

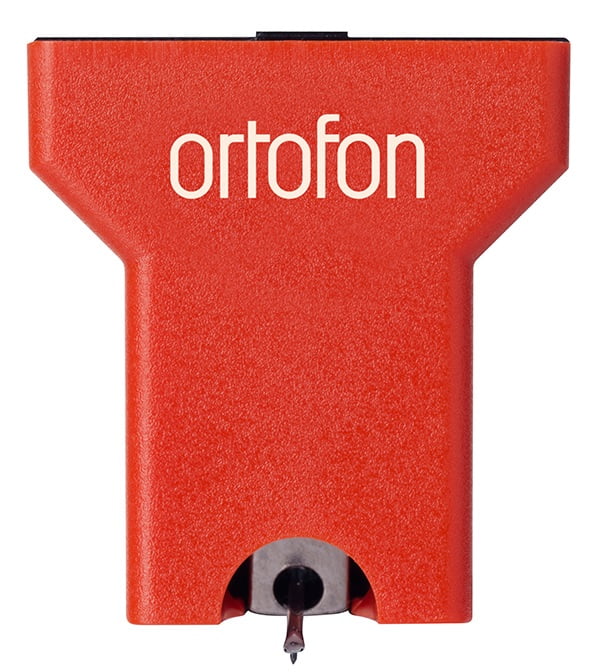

The Quintet Red is a perfect introduction to the world of Ortofon moving coils.
It features an Elliptical diamond which is cut and polished to Ortofon’s standards.
This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.
MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.
The ST-7 transformer is a perfect match for the MC Quintet Red cartridge.
LH-4000 headshell is specially recommended for MC Quintet cartridges series.
MC Quintet Red Technical data
Output voltage at 1 kHz 5 cm/sec – 0.5 mV
Channel balance – < 1.5 dB
Channel separation at 1 kHz – > 21 dB
Channel separation at 15 kHz – > 14 dB
Frequency range at -3 dB – 20 – 25.000Hz
Frequency response 20-20.000 Hz – +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force *) – 65 μm
Compliance, dynamic, lateral – 15 μm/mN
Stylus type – Elliptical
Stylus tip radius – r/R 8/18 μm
Tracking force range – 2.1-2.5 g (21-25 mN)
Tracking force recommended – 2.3 g (23 mN)
Tracking angle – 20º
Internal impedance, DC resistance – 7 Ohm
Recommended load impedance – >20 Ohm
Cartridge body material – ABS/Aluminium
Coil wire material – Copper
Cartridge colour – Red
Cartridge weight – 9 g
Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature’s Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm – without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you’re tonearm is ready to play.
3.2 – 4 mm spacers should be enough for Quintet cartridge.
MC Quintet Red accessories included the package
- 1 x Stylus brush
- 1 x Screwdriver
- 2 x Screw M2,5 x 5

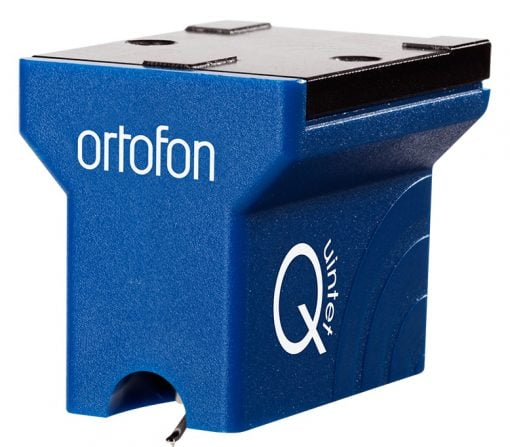

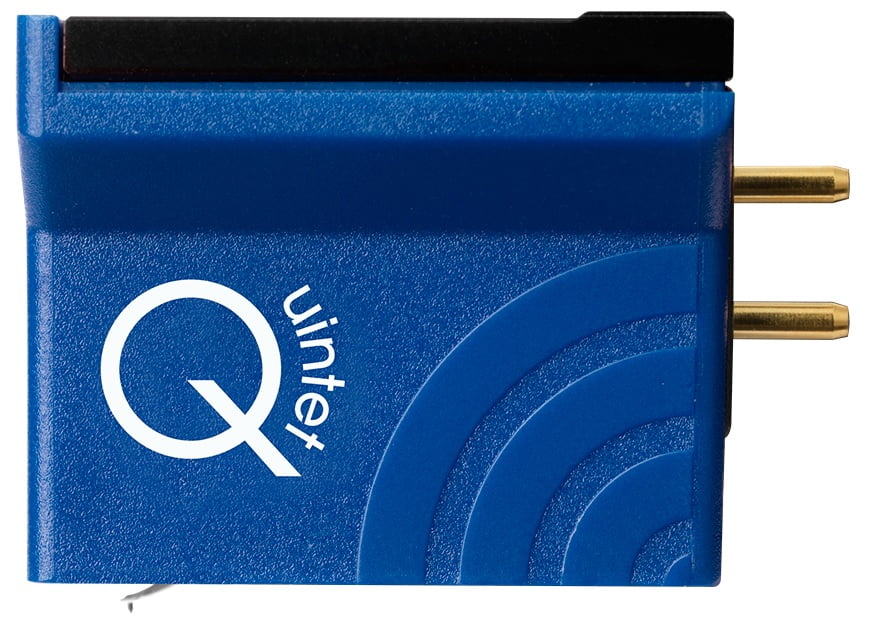

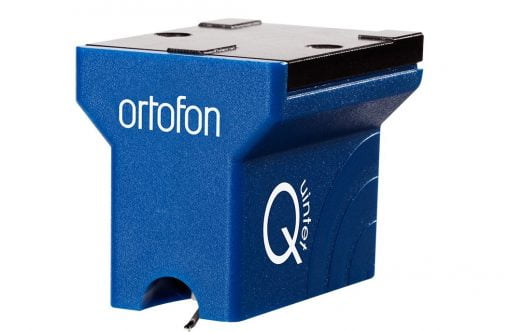

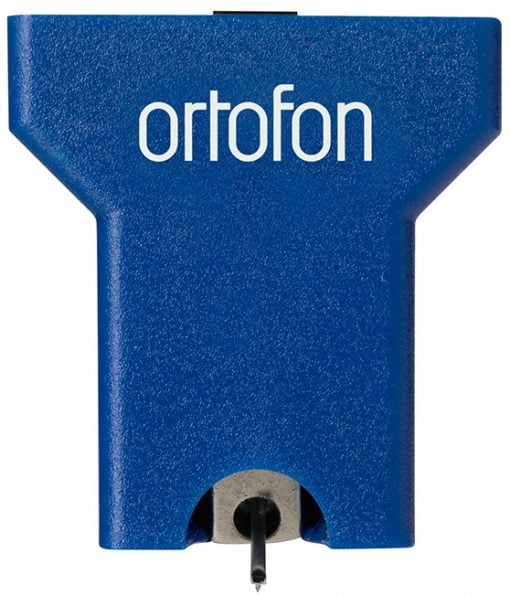

The Quintet Blue’s sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.
It features a Nude Elliptical diamond mounted on an aluminium cantilever.
The Quintet Blue will bring more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic.
The ST-7 transformer is a perfect match for the MC Quintet Blue cartridge.
LH-4000 headshell is specially recommended for MC Quintet cartridges series.
MC Quintet Blue Technical data
Output voltage at 1 kHz 5 cm/sec – 0.5 mV
Channel balance – < 1.5 dB
Channel separation at 1 kHz – > 21 dB
Channel separation at 15 kHz – > 14 dB
Frequency range at -3 dB – 20-25.000 Hz
Frequency response 20-20.000 Hz – +/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force *) – 70 μm
Compliance, dynamic, lateral – 15 μm/mN
Stylus type – Nude Elliptical
Stylus tip radius – r/R 8/18 μm
Tracking force range – 2.1-2.5 g (21-25 mN)
Tracking force recommended – 2.3 g (23 mN)
Tracking angle – 20º
Internal impedance, DC resistance – 7 Ohm
Recommended load impedance – >20 Ohm
Cartridge body material – ABS/Aluminium
Coil wire material – Pure 4-nines copper
Cartridge colour – Blue
Cartridge weight – 9 g
Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature’s Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm – without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you’re tonearm is ready to play.
3.2 – 4 mm spacers should be enough for Quintet cartridge.
MC Quintet Blue accessories included the package
- 1 x Stylus brush
- 1 x Screwdriver
- 2 x Screw M2,5 x 5

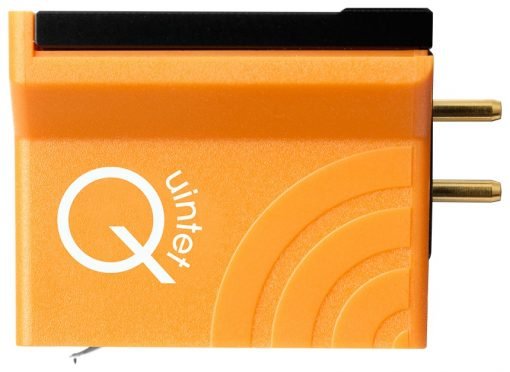

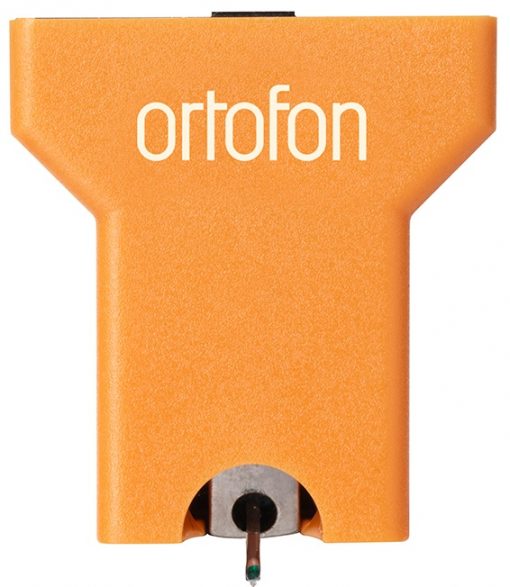

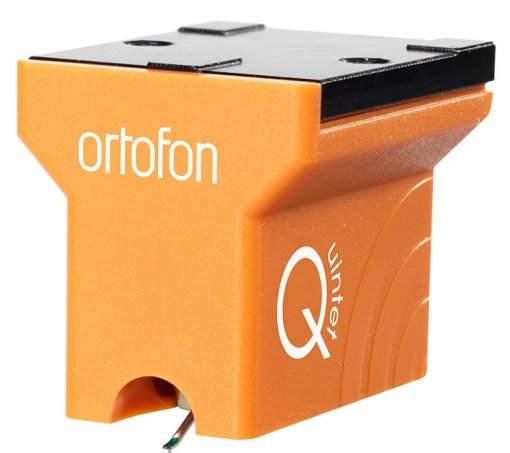

The slim profile of its Nude Fine Line diamond stylus will track even the highest frequency information, making it a must for discerning listeners.
Additionally its larger footprint ensures reduced distortion and record wear.
The sound will be very evenhanded with respect to all aspects. Classical music will be reproduced with power and open space around each of the instruments.
The ST-7 transformer is a perfect match for the MC Quintet Bronze cartridge.
LH-4000 headshell is specially recommended for MC Quintet cartridges series.
MC Quintet Bronze Technical data
Output voltage at 1000 Hz, 5cm/sec. – 0.3 mV
Channel balance at 1 kHz – < 1.2 dB
Channel separation at 1 kHz – > 23 dB
Channel separation at 15 kHz – > 15 dB
Frequency range at – 3dB – 20-25.000 Hz
Frequency response 20-20.000 Hz – +/-1.5 dB
Tracking ability at 315Hz at recommended tracking force *) – 80 µm
Compliance, dynamic, lateral – 15 µm/mN
Stylus type – Nude Fine Line
Stylus tip radius – r/R 8/40 µm
Tracking force range – 2.1-2.5 g (21-25 mN)
Tracking force, recommended – 2.3 g (23 mN)
Tracking angle – 20°
Internal impedance, DC resistance – 5 Ohm
Recommended load impedance – > 20 Ohm
Cartridge body material – ABS/Aluminium
Coil wire material – Pure 4-nines copper
Cartridge colour – Bronze
Cartridge weight – 9 gram
Compatibility with Rega brand TT/TA:
REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge.
Adjusting the height of your Rega tonearm is easy with Acoustic Signature’s Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm – without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you’re tonearm is ready to play.
3.2 – 4 mm spacers should be enough for Quintet cartridge.
MC Quintet Bronze accessories included the package
- 1 x Stylus brush
- 1 x Screwdriver
- 1 x Stylus pressure gauge/Scale
- 2 x Screw M2,5 x 5
