Audio Technica AT-LPW40WN

Rp7.150.000

SKU: AT-LPW40WN Categories: , , Tags: ,

Description

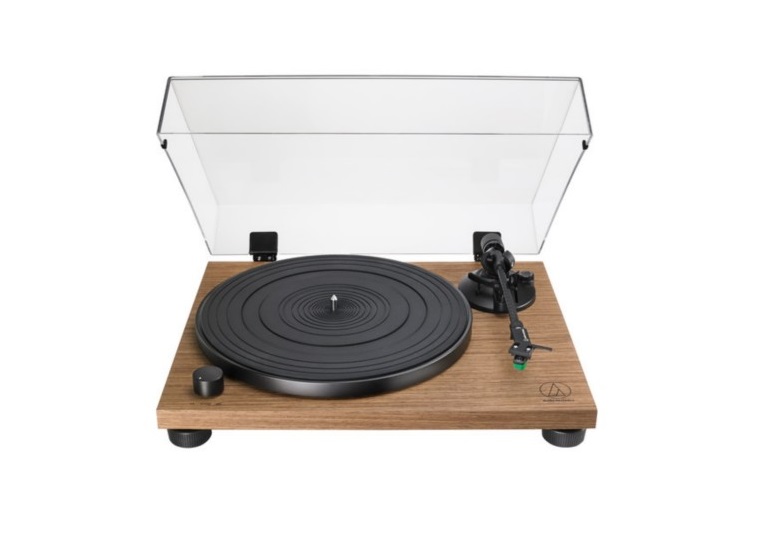

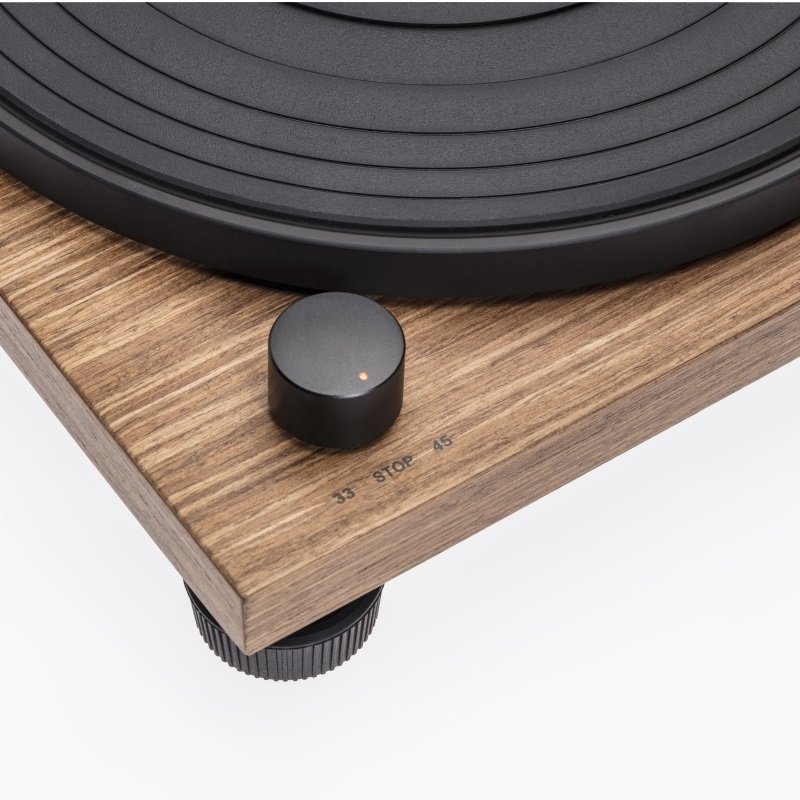

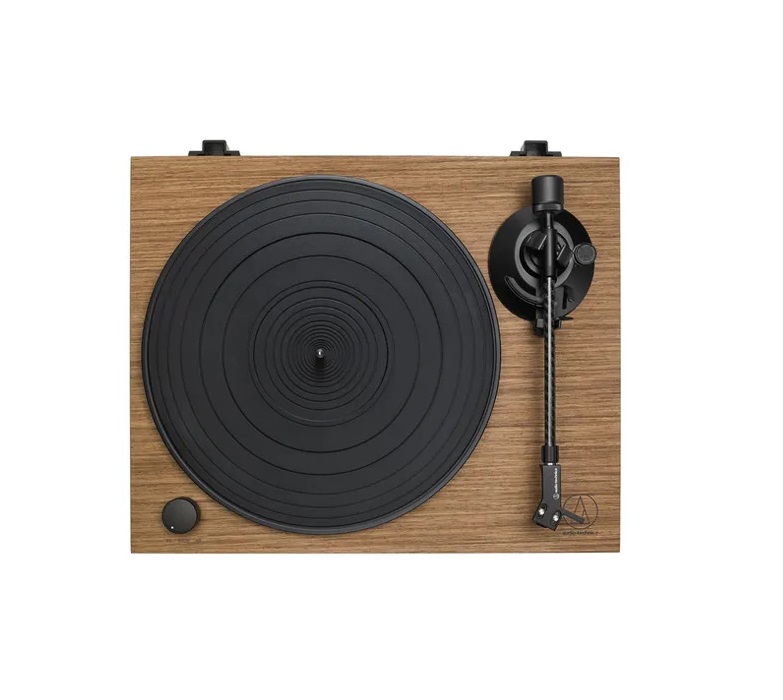

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.

The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½”-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

Specifications

TypeBelt-drive manual turntable
MotorDC servo with Active Speed Stabilization
Drive MethodBelt drive
Speeds33-1/3 RPM, 45 RPM
Turntable PlatterDie-cast aluminum
Wow and Flutter< 0.15% WRMS (33 RPM) at 3 kHz
Signal-to-Noise Ratio>60dB
Output LevelPre-amp “PHONO”: 4.0 mV nominal at 1 kHz, 5 cm/sec
Pre-amp “LINE”200 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain35 dB nominal, RIAA equalized
Power Supply Requirements100-240 V, 50/60 Hz, 0.5 A Max.
Power Consumption110 V 60 Hz
Working1.1 W
Motor off1.0 W
Power off0.1 W
Dimensions420.0 mm (16.53″) W x 340.0 mm (13.38″) D x 116.9 mm (4.6″) H
Weight4.72 kg (10.40 lbs.) without dust cover
Accessories IncludedDust cover, Platter, Turntable mat, Drive belt, Counterweight, AT-HS4 headshell, AT-VM95E stereo cartridge, 45-RPM adapter, RCA audio cable (approx. 1.0 m (3.3′)), AC adapter (approx. 1.5 m (4.9′)) (AD-SA1205WE), Dust cover hinges
