Unity Lasers RAW 1.7

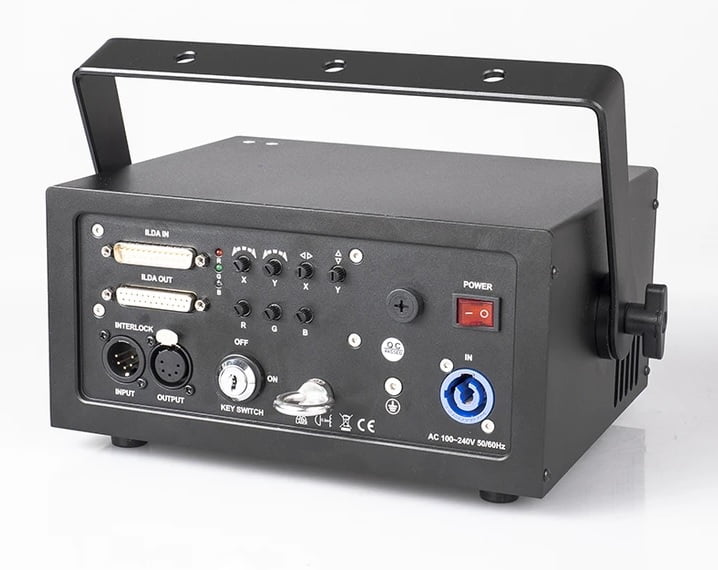

Unity Lasers RAW 1.7 - Image 2

Unity Lasers RAW 1.7

CALL

Add to wishlist
SKU: UTY-RAW17 Categories: , , , ,

Description



Description

Overview

The Unity RAW 1.7 is a full color RGB diode-based ilda laser projector, designed for clients want an economically friendly laser show system, that still has the power to produce beautiful aerial beam effects, as well as high resolution laser graphics, logos and text.

Applications

Our Unity RAW Series is perfect for as DJs, nightclubs, concerts, and entertainment venues, where you need an impactful and easy to use show laser system. Unity RAW 1.7 is suitable for venues/crowds of up to 2,000 people in capacity.

Control

Unity RAW Series laser projectors are incredibly easy to setup and use. And can easily be controlled via ILDA, or via DMX / ArtNET (with Pangolin software).

  • We recommend using the Pangolin FB3QS or FB4 laser show control hardware, with QuickShow software.
  • Try a FREE demo, and see it in action here: http://www.pangolin.com/quickshow

What’s in the box

The RAW 1.7 includes all of your main accessories, FREE.

  • Laser Show projector
  • ILDA cable
  • E-stop safety system and E-stop cables
  • Interlocks
  • Keys

Specifications

Product Name:RAW 1.7
Type:full-colour, semiconductor diode laser system
Guaranteed optical output:>1700mw
Suitable for:indoor/small outdoor laser shows and laser graphic displays
Control signal:ILDA
Scanning system:25kpps @ 8°
Safety:fully complies with the latest EN 60825-1, and FDA regulations
Weight:7kg
Package includes:power cord, 10M ILDA signal cable, E-STOP box with 10M cable, set of 4 safety keys, 5-pin interlock bypass plug, user guide.
R | G | B [mW]:400 | 600 | 1000
Beam size [mm]:5 x 3
Beam divergence:<1.1mrad [full angle]
Modulation:analog, up to 50kHz
Power requirements:100-230V/50Hz
Consumption:max. 90W
Operation temperature:10-40 °C
Ingress protection rating:IP54
System features:All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. Scanning system protection, daisy chain of emergency STOP signal for multiple system “one-hit” operation.
Laser safety features:Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate.
*Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output.
Dimensions:Length: 238
Width: 192
Height: 114
