Description
Optimal Control And Operation Experience At Your Fingertips
Equipped with the leading-edge core architecture and SSD(NVMe), the U5 event controller enables the most fluent and fast operations ever. With the design concept of increasing operational efficiency and satisfying the various changing needs that may arise from event scenarios, the U5 event controller comes with all the crucial functionalities that you may need. The newly-upgraded built-in software PixelFlow with always user-friendly GUI helps you manage devices, screens, layers, sources, presets more stably and easily. The magnificent interactive design maximizes user convenience and shortens your learning curve. Convenient control over multiple presentation switchers and media servers greatly simplifies your on-site deployment and brings more convenience and ease to your events. In addition, timecode generating and accepting support, timecode format conversion ability and MIDI support add extra value to all spectacles.
Innovative Design, Born For Events

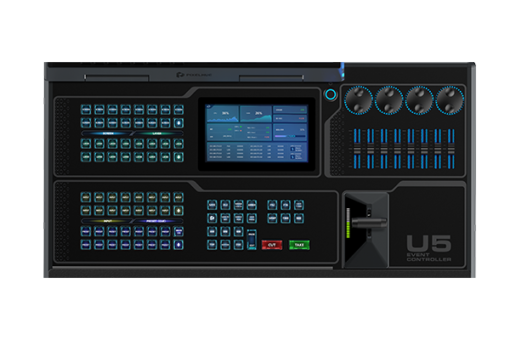

The U5 event controller comes with a compact size and lightweight
ruggedized housing, 87 user-programmable LCD buttons, four
encoders and eight faders, a high-resolution T-bar, etc. to bring you
the maximum ease of use for your events. What’s more, the stunning
design of 21.5” Main Touchscreen and 8” Smart Touchscreen enables
the more visualized and convenient operations, as well as a foldable
design makes it easily survive in any road trips. All these make it the
perfect solution for various spectacular live events.
Features
- Built-in upgraded software PixelFlow with more user-friendly GUI, shorter learning curve
- Timecode generating, receiving and conversion abilities; LTC, MTC and MIDI USB timecode formats support
- Simultaneous control over multiple switchers and media servers
- Control over third-party devices via MIDI protocol
- KVM function
- PTZ control
- Compact size
- High anticorrosive aluminum housing, lightweight body design
- Foldable design, with main screen readable and operateable at 45 to 125°
- 21.5” Main Touchscreen and 8” Smart Touchscreen for visualized and convenient operations
- Smart Touchscreen for displaying still images, timecode, device health and Multiviewer
- 4x encoders and 8x faders, configurable as internal software function buttons or as MIDI buttons
- User-programmable LCD indication buttons for names, pages and more
- Free replacement of button skin and styles
- Unique design for convenient disassembly and easy maintenance
Specs
| Dimensions(with handles, rack ears & rack mount) | 740 mm × 651.4 mm × 431.6 mm 29.13 × 25.65 × 16.99 inches Please refer to the dimension diagram for more details |
| Product Weight | 24 kg (Net weight) 55 kg (With accessories and flight case) |
| Noise on Average (@1, 0.75m height) | 40 dB |
| Electrical Parameters | Power connector: AC100 V‒240 V 50/60Hz Max power consumption: 240 W |
| Operating Conditions | Operating Environment: • Temperature: 0°C to 45°C (32°F to 113°F) • Humidity: 0% RH to 80% RH, non-condensing Storage Environment: • Temperature: –20°C to +60°C (–4°F to 140°F) • Humidity: 0% RH to 95% RH, non-condensing |
| Safety Compliance | CE, FCC, IC (In progress) |
| Packing Information | • 1x Optional Power Cable • 2x HDMI Cable Male to Male, 3m • 1x Cat5e Ethernet Cable_P-CAT5, 3m • 1 x USB Type-B to Type-A, 3m • 1x Flight Case • 1x Dust Cover • 1x USB Drive • 1x Gooseneck Lamp • 1x Quick Start Guide • 1x Customer Letter • 1 x Safety Manual • 1x Certificate of Approval |
