Saramonic SR-PAX2

Rp2.500.000

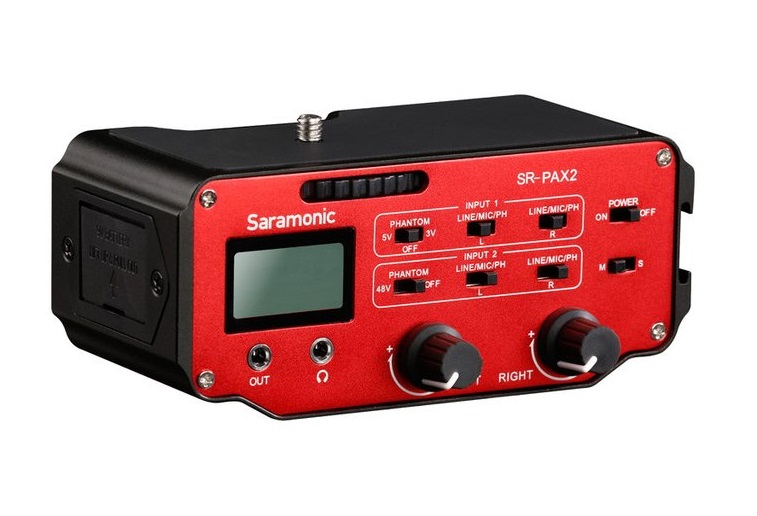

Saramonic SR-PAX2 is a 2-channel active audio mixer with preamp and phantom power, specially designed for any DSLR camera with a microphone jack. It features two 3.5mm inputs and one stereo aux input on channel 1, and two balanced XLR inputs on channel 2, each with phantom power support and gain control knobs. It also has a small LCD screen to show level meter, and of course, a headphone monitoring output beside the standard 3,5mm output.

SKU: SARA-SRPAX2 Categories: , , Tags: , ,

Description



Saramonic SR-PAX2

The SARAMONIC SR-PAX2 is a two-channel active audio mixer with preamplifier and phantom power, specially designed for mirrorless digital cameras, Blackmagic Design pocket cinema cameras or any DSLR camera with a microphone jack.

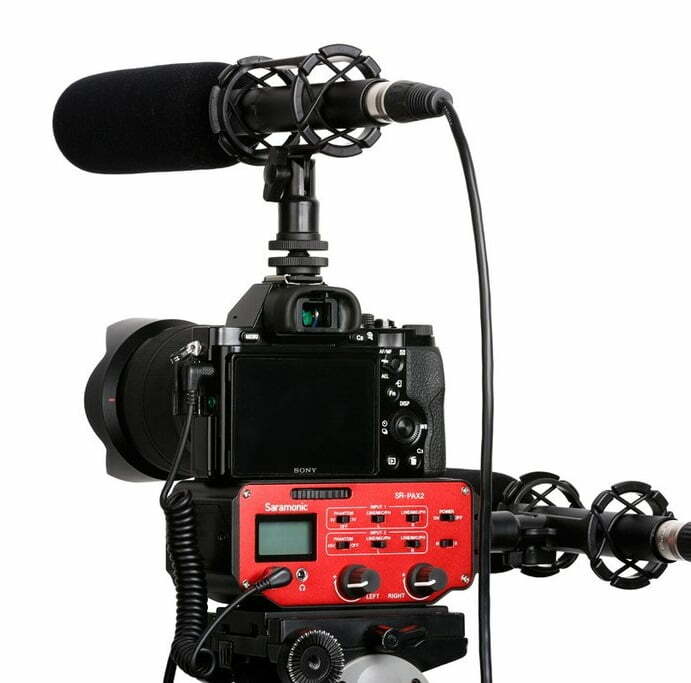

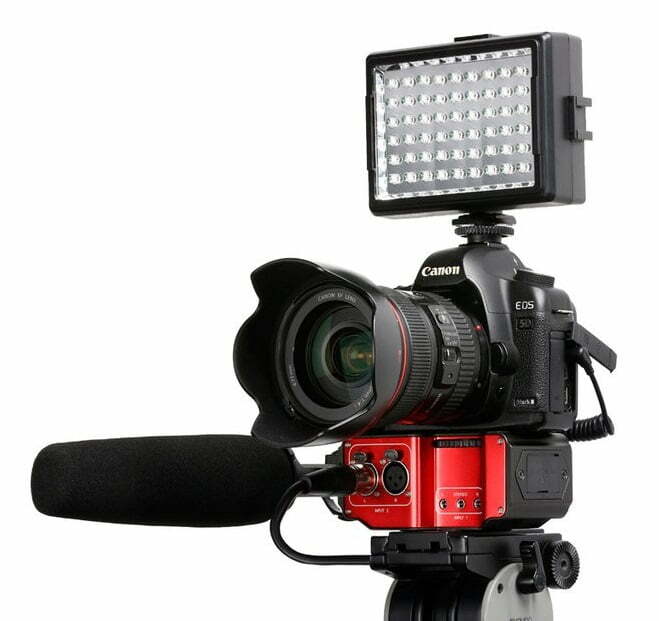

It is a compact and lightweight mixer ideal for recording professional-quality audio from two sources and mixing them into your camera. It attaches to the base of a camera, and a threaded socket on its base allows for mounting on a tripod or case.

With two sets of inputs, the SR-PAX2 accepts signals from a wide variety of mic or line level sources such as balanced XLR microphones, 3.5mm microphones, wireless microphones and external audio mixers. The 3.5mm inputs are also ideal for connecting audio devices with a 3.5mm output such as a smart phone or an MP3 player. The input levels of each channel can be easily controlled with the dual gain control knobs. A phone jack allows you to monitor the audio in real time. The SR-PAX2 makes your recording work much easier.

Features

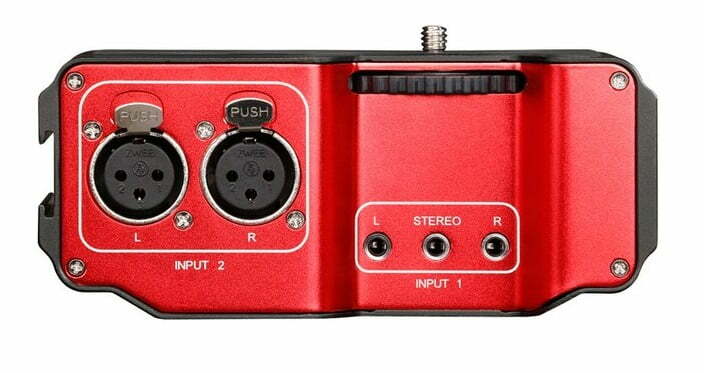

  • Two balanced XLR inputs with two 3.5mm input
  • Earphone jacks for monitoring
  • Level Meter indicates the sound level in dB for each channel
  • 12 or 48 volt phantom power control switch
  • 3.5mm Aux Input and 3.5mm Audio Output
  • Can be used with four pairs of microphone like SR-WM4C

Specifications

  • Frequency Response: 20 Hz to 20Khz, +/-0.5 dB
  • THD: Less than 0.01% @ 1kHz, -30 dBu input
  • SNR: 80 dB @ 1 kHz, -30 dBu input
  • INPUT 1 Gain: Line: 0 dB ; Mic/PH: 20dB
  • INPUT 2 Gain: Line: 0 dB ; Mic/PH: 20dB
  • INPUT 1 Phantom Power: 5V/3V power supplies
  • INPUT 2 Phantom Power: 48V power supplies
  • Level Meter: -18 dB to +3 dB in 3 dB increments
  • Power Requirements: 9V alkaline or lithium battery
  • Battery Duration: 5 hours, typical with alkaline battery; 3 hours, typical with lithium battery
  • Dimensions: L 136 x W 80.5 x H 62.5 mm
  • Weight: 13.5 oz (0.385 kg)
